LMD-B 100 SD

Linear Post Cap Ceiling, Longitudinally Sound-Reduced

LMD-B 100 SD

Linear Post Cap Ceiling, Longitudinally Sound-Reduced

This ceiling system with visible linear Post Caps and tested longitudinal sound reduction is the perfect solution to fasten partitions on the Post Caps. Thus, individual room layouts are possible – for example a subdivision of an open-plan office in several individual offices. The system LMD-B 100 SD with low construction height can be adapted to round building shapes thanks to trapezoidal ceiling panels and radially installed Post Caps. The ceiling panels with heavy plating can easily be removed for maintenance works without the need for any tools.

Post Cap ceiling with tested longitudinal sound reduction
visible linear Post Caps as design elements
individual room layout thanks to the possibility to fasten partitions to Post Caps
Post Caps can be used for technical installations or luminaires
space-saving ceiling system with low construction height
round, curved building shapes can be realised thanks to radially installed Post Caps and trapezoidal ceiling panels
easy maintenance option due to ceiling panels that can be individually operated without tools
hygienic and easy to clean

Data Sheet CAD-Portal

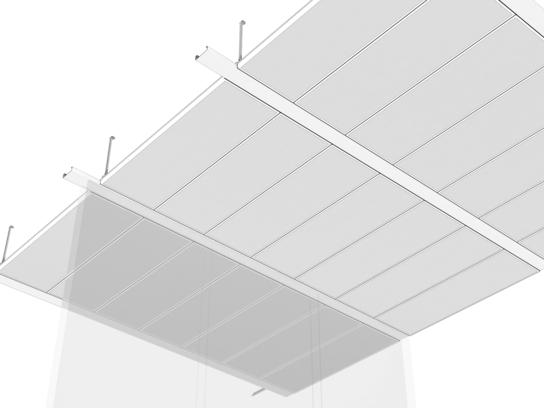

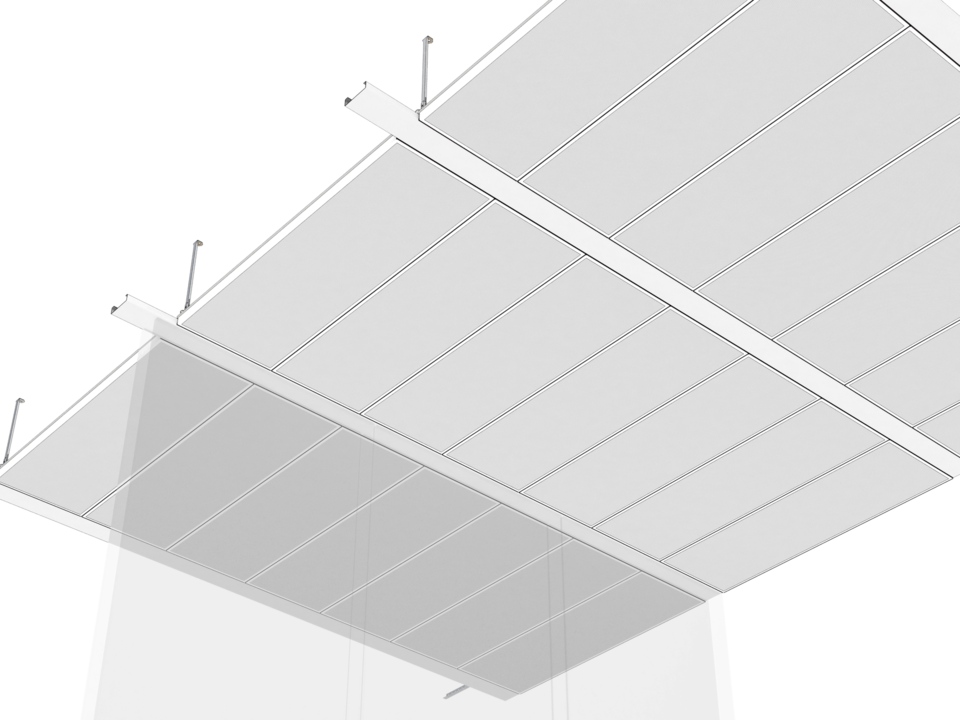

LMD-B 100 SDView from below

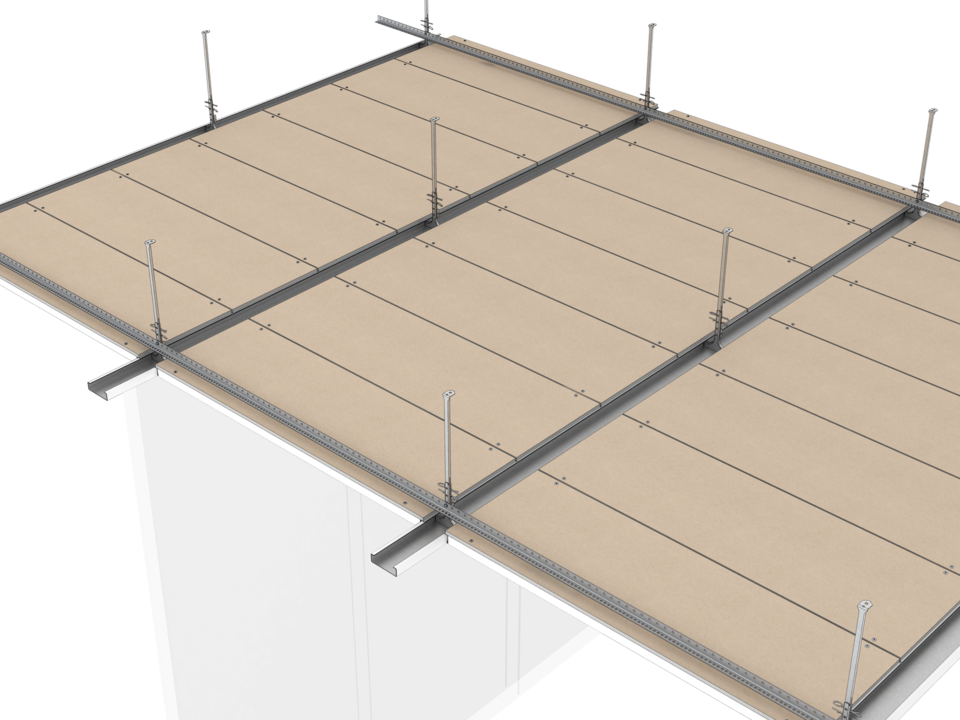

LMD-B 100 SDView from above

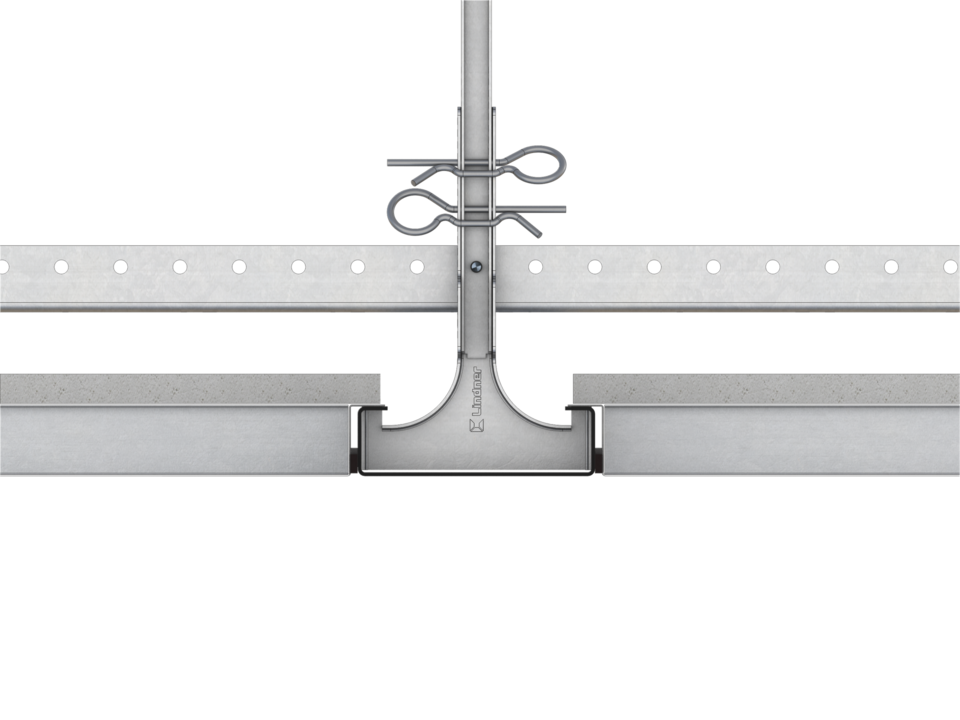

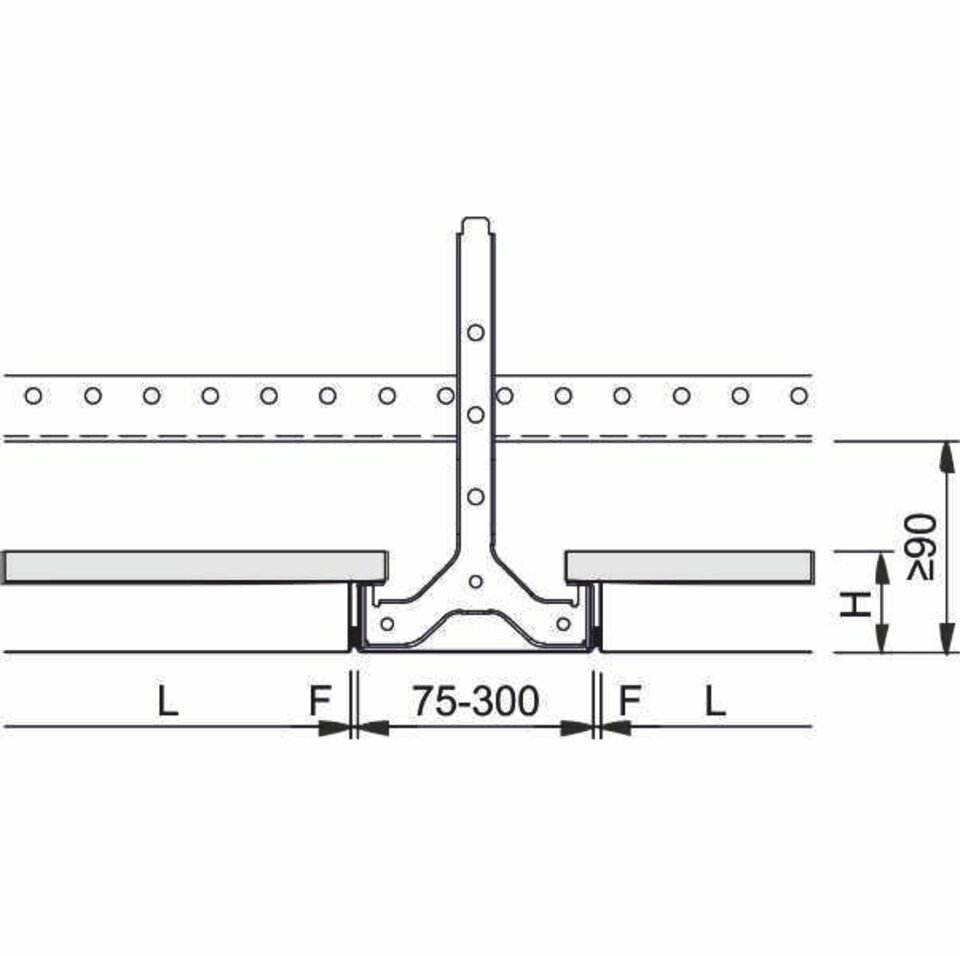

LMD-B 100 SDSection

LMD-B 100 SDApplication

Superior

Downloads

More items

Digital Service

NBS Specifications

Product Information

Ceiling elements

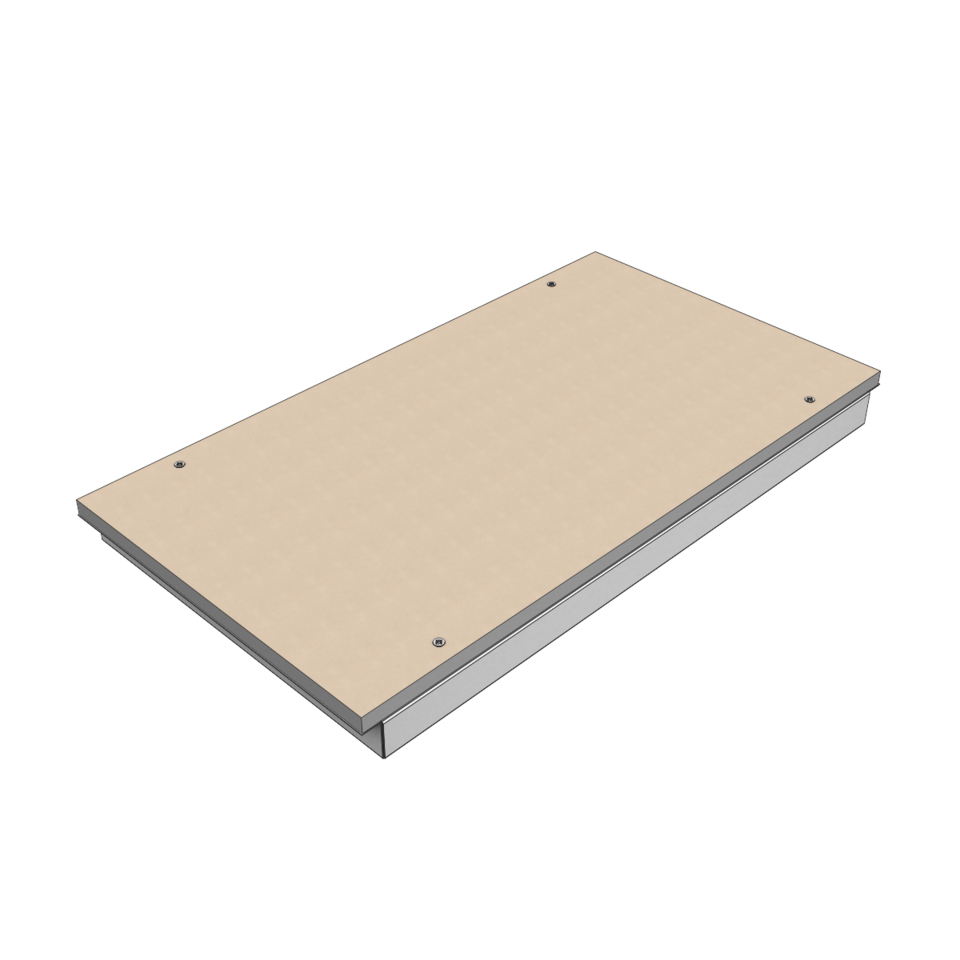

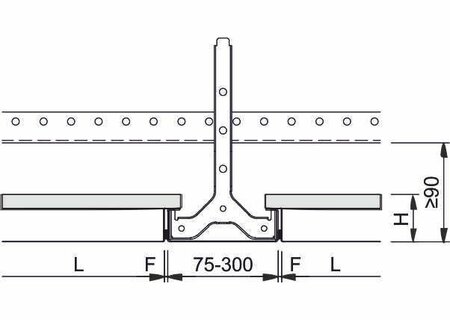

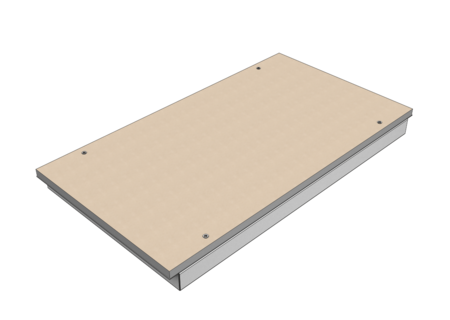

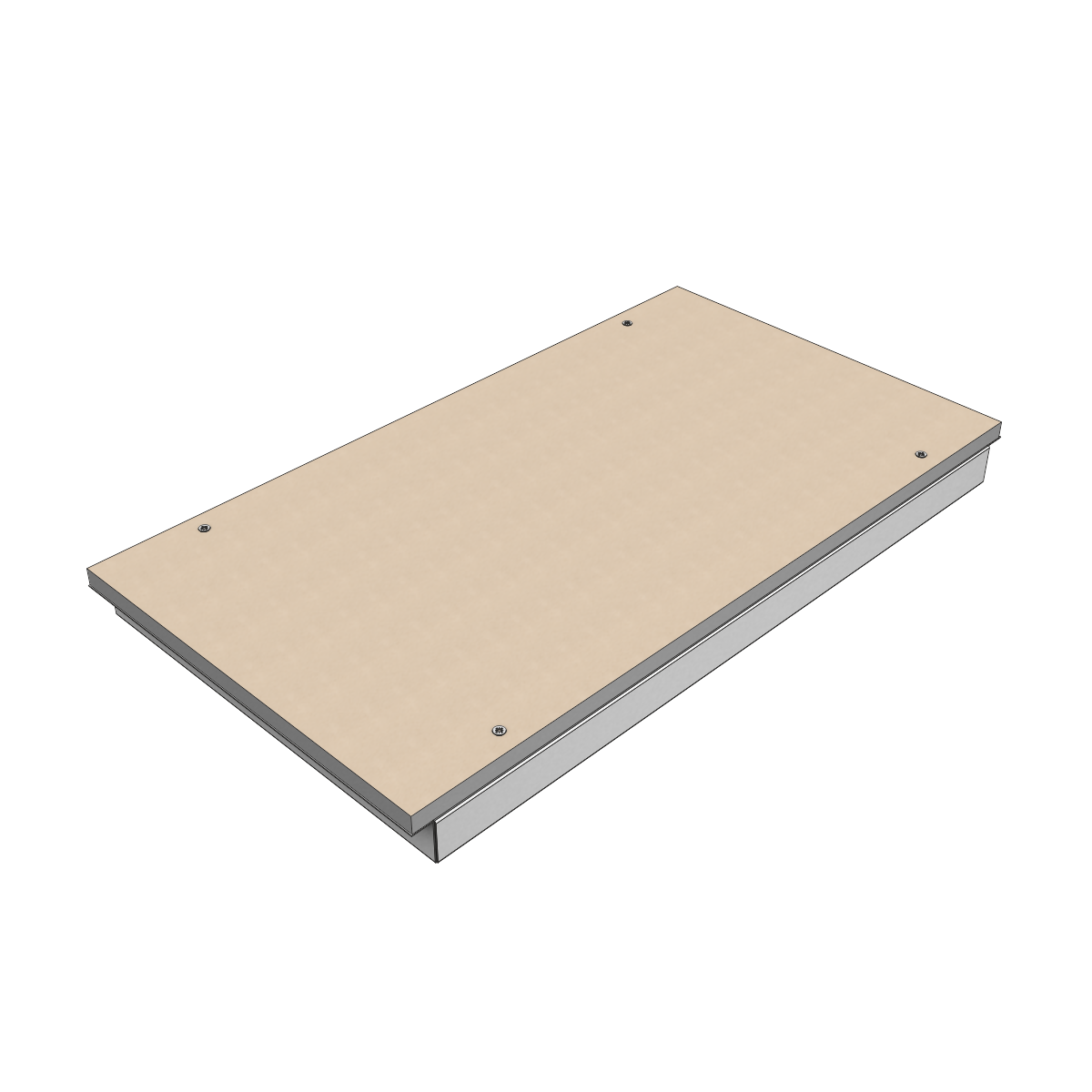

LMD-B 100 SD Typ 1

Lay-In

Length (L)

250 - 1,400 mm | 250 - 2,000 mm

Width (B)

200 - 900 mm | 200 - 600 mm

Height

≥ 43 mm

Joint width (F)

3 mm

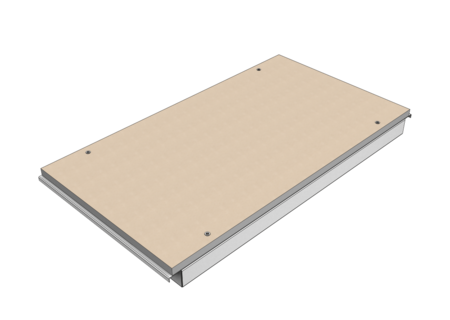

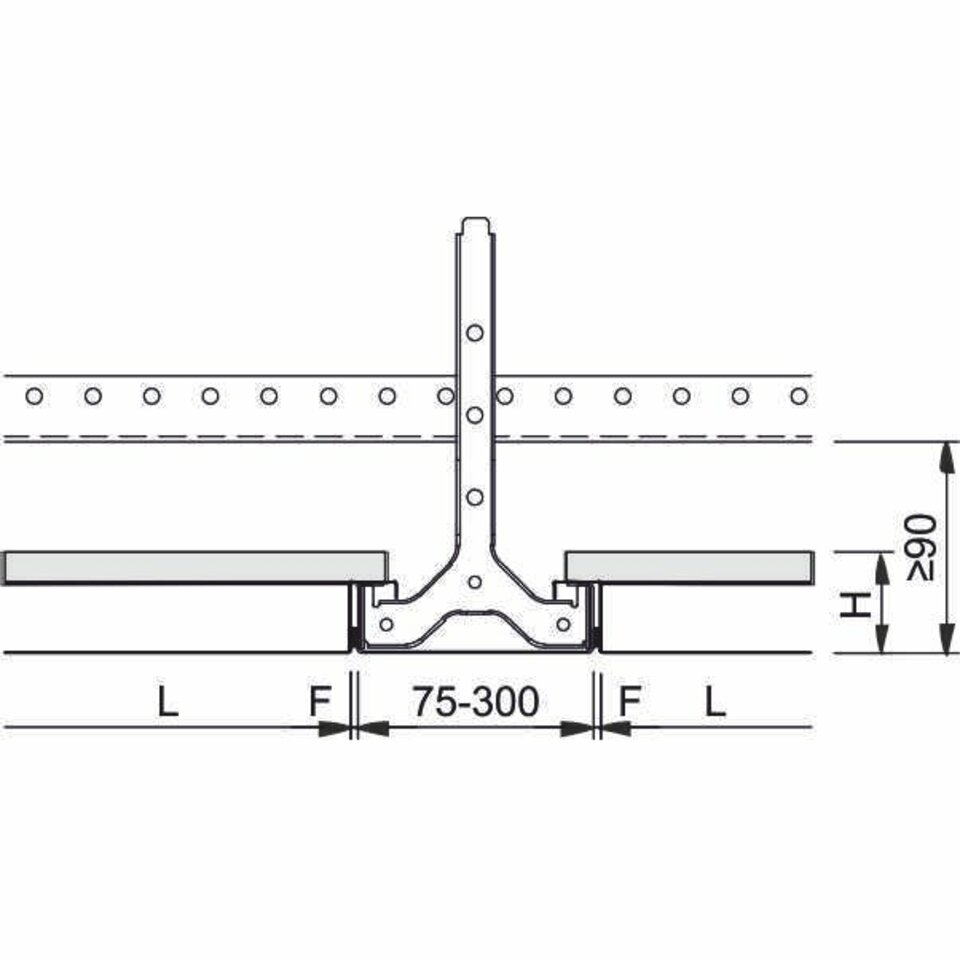

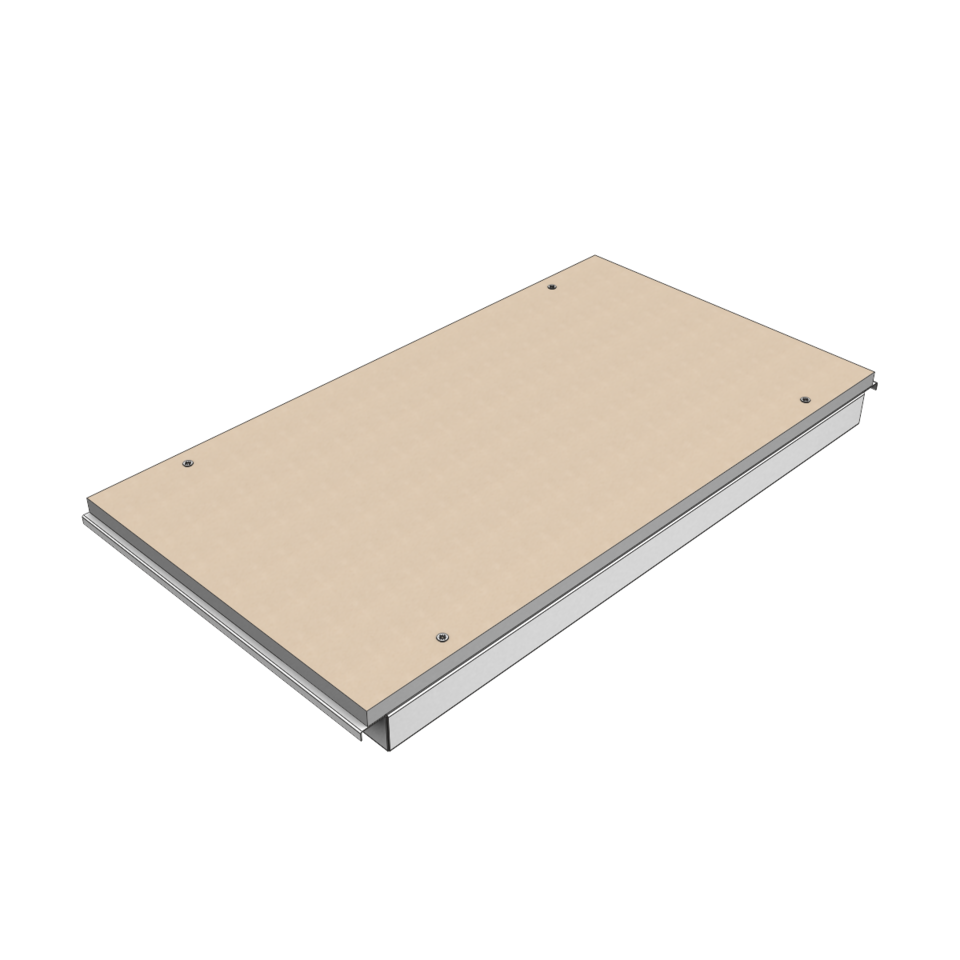

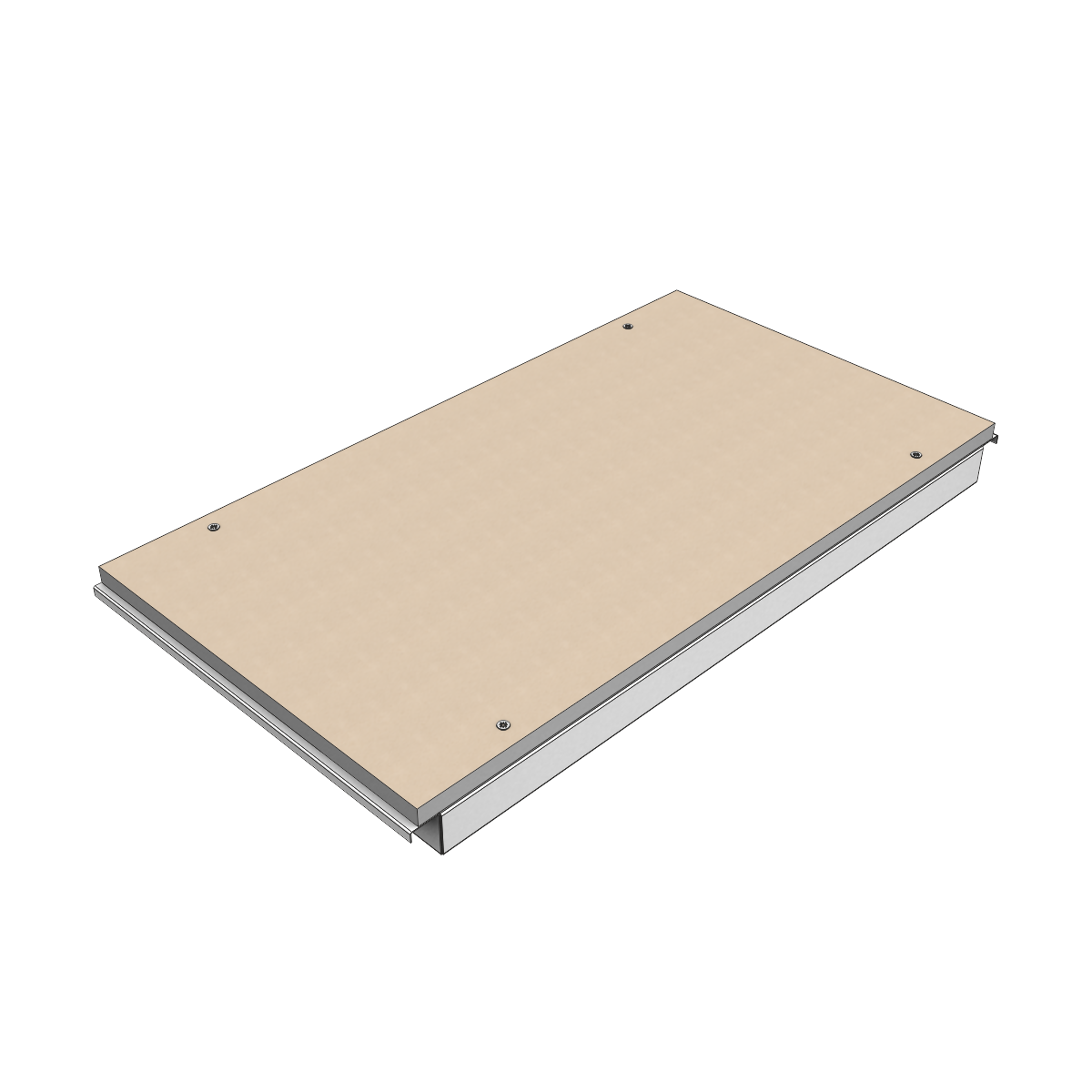

LMD-B 100 SD Typ 2

Lay-In with Hook-On edge

Length (L)

250 - 1,400 mm | 250 - 2,000 mm

Width (B)

200 - 900 mm | 200 - 600 mm

Height

≥ 43 mm

Joint width (F)

3 mm

Technical details

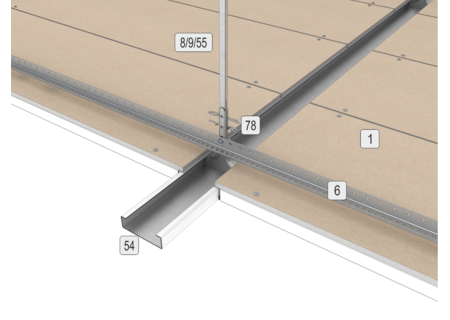

Component list

Acoustics

Room acoustics

evaluated sound absorption coefficient

ISO 11654

E - C

Noise Reduction Coefficient

ASTM C423

NRC

0.15 - 0.85

Building acoustics

Evaluated Sound Absorption Coeff.

ISO 354

α_w

0.15 - 0.75 dB

weighted normalised flanking level difference

DIN EN ISO 717 1 1 abhängig Zusatzmaßnahmen

D _n,f,w

Fire protection

Durability

Sustainability

Surfaces

Certification

Don't hesitate to contact us!

+49 8723 20-3679 E-Mail

Additional Equipment - (3)

IS 17

Integrated luminaire for general areas

The lighting fixture IS 17 is framelessly and flush-mounted integrated into the metal ceiling elemen...

IS 22

Integrated luminaire for monitor workstations

The lighting fixture IS 22 is framelessly and flush-mounted integrated into the metal ceiling elemen...

QZI

Recessed luminaire for metal ceilings

The system luminaire QZI can be flexibly used for all areas with requirements of glare-control. Ligh...

Combinable Systems - (1)

Superior

Plafotherm® B 100 SD

Linear Heated and Chilled Post Cap Ceiling, Longitudinally Sound-Reduced

This longitudinally sound-reduced post cap ceiling creates a pleasant room climate. It is the perfec...

Areas of Use

Work: Facilities for Meetings, Conventions and Conferences, Office buildings, Common Rooms, Assembly Rooms

Public Institutions: Court Houses, Government Buildings

Education: School of Higher Education, Schools, Research Rooms

Businesses, Recreation and Culture: Banks

Hotels and Gastronomy: Restaurants and Canteens, Hotels and Resorts
