Plafotherm® B 100 SD

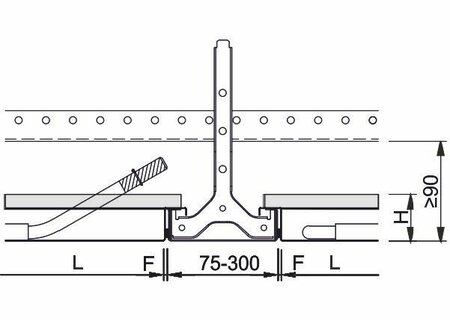

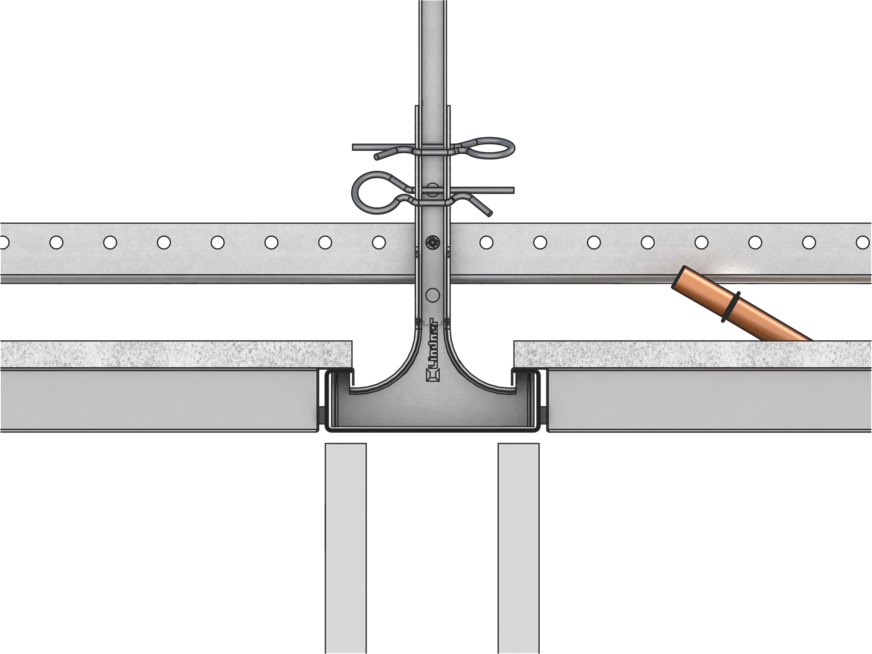

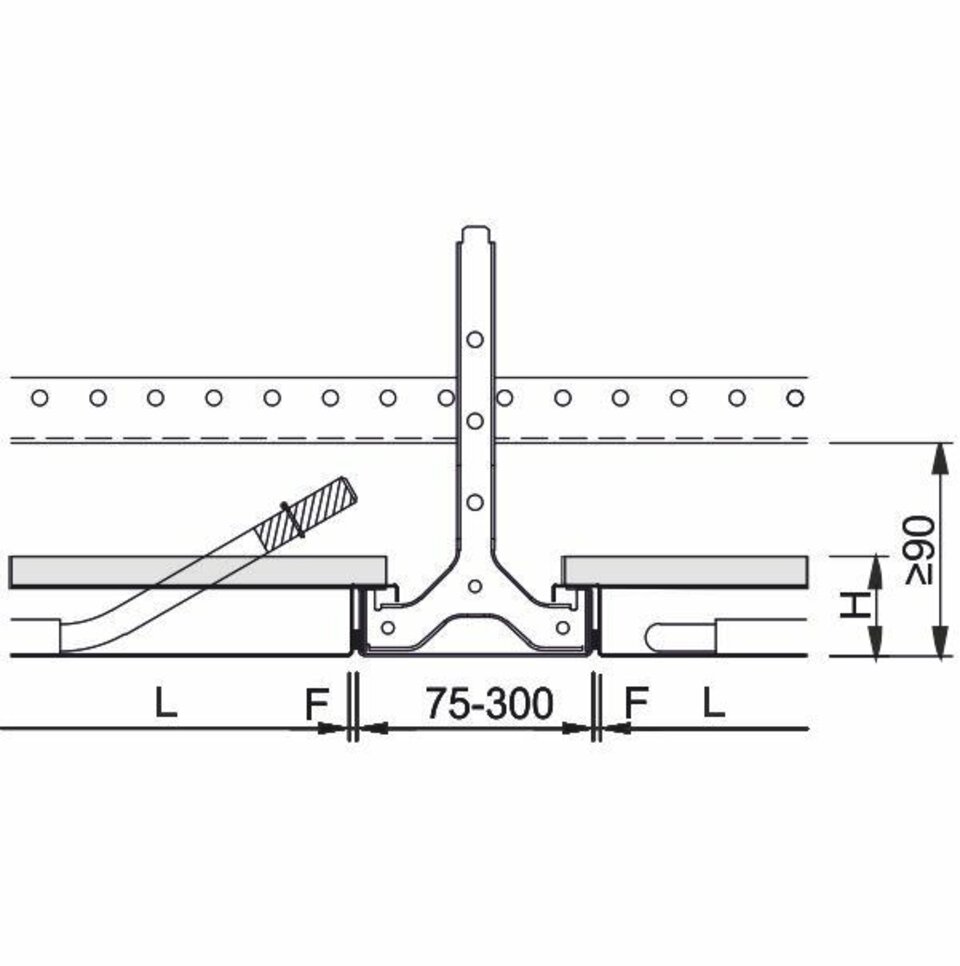

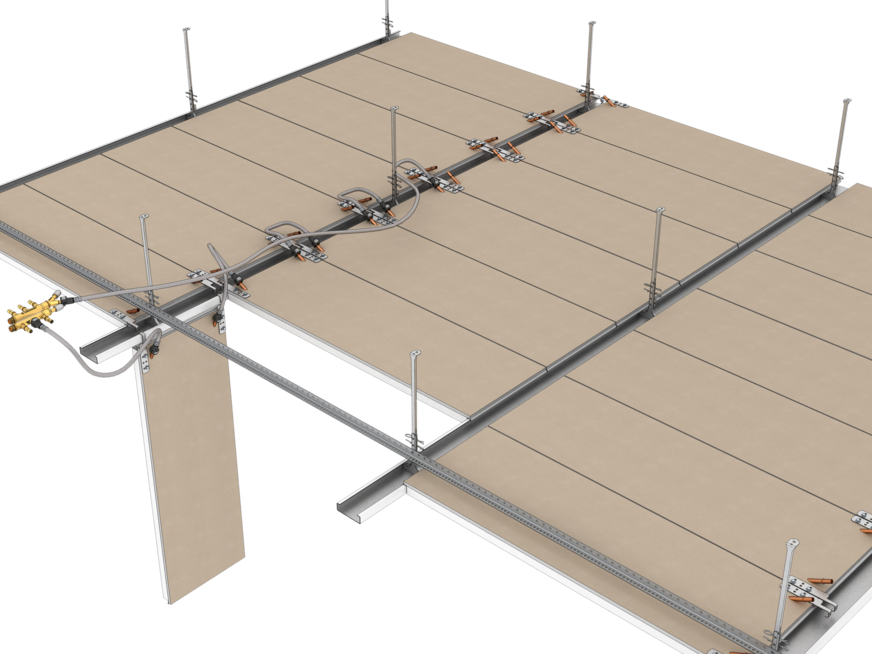

Linear Heated and Chilled Post Cap Ceiling, Longitudinally Sound-Reduced

This longitudinally sound-reduced post cap ceiling creates a pleasant room climate. It is the perfect solution to fasten partitions and offers great freedom in office design - no additional ceiling bulkheads are required. The visible linear post caps can be used as design element or for the integration of installations. The space-saving system can easily be opened: the ceiling panels can be operated without the need for any tools. Even round or curved building shapes can be realised. A combination of thermally active and passive areas is possible.

  • no additional ceiling bulkheads required
  • post cap ceiling with tested longitudinal sound reduction
  • heating/cooling by means of radiation creates a pleasant room climate
  • flexibility thanks to the combination of thermally active and passive areas
  • visible linear post caps as design elements
  • individual room layout thanks to the possibility to fasten partitions to post caps
  • post caps can be used for technical installations or luminaires
  • space-saving ceiling system with low construction height

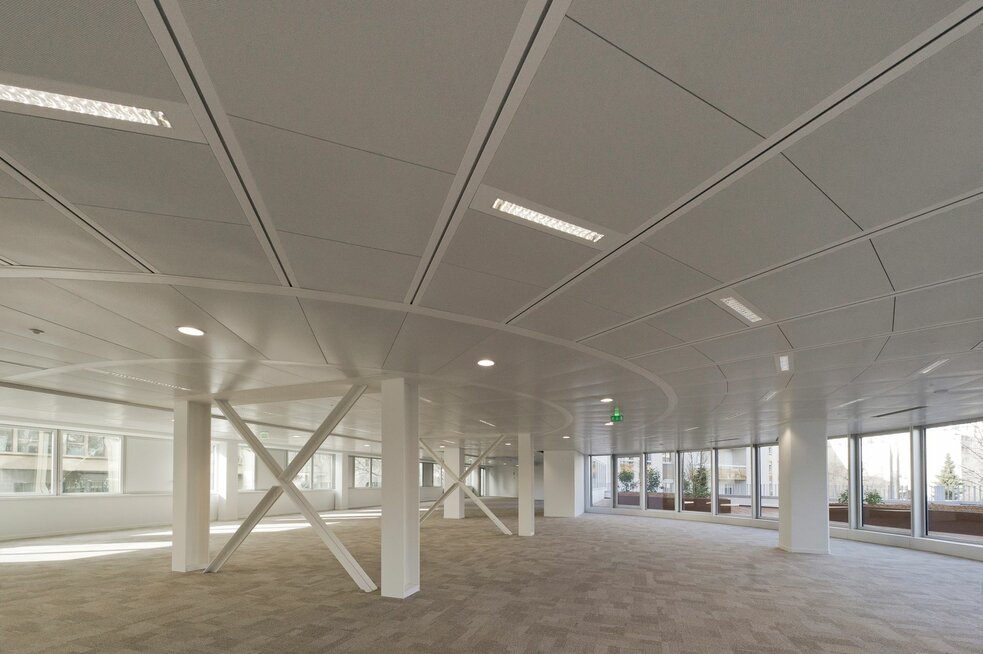

  • round, curved building shapes can be realised thanks to radially installed post caps and trapezoidal ceiling panels

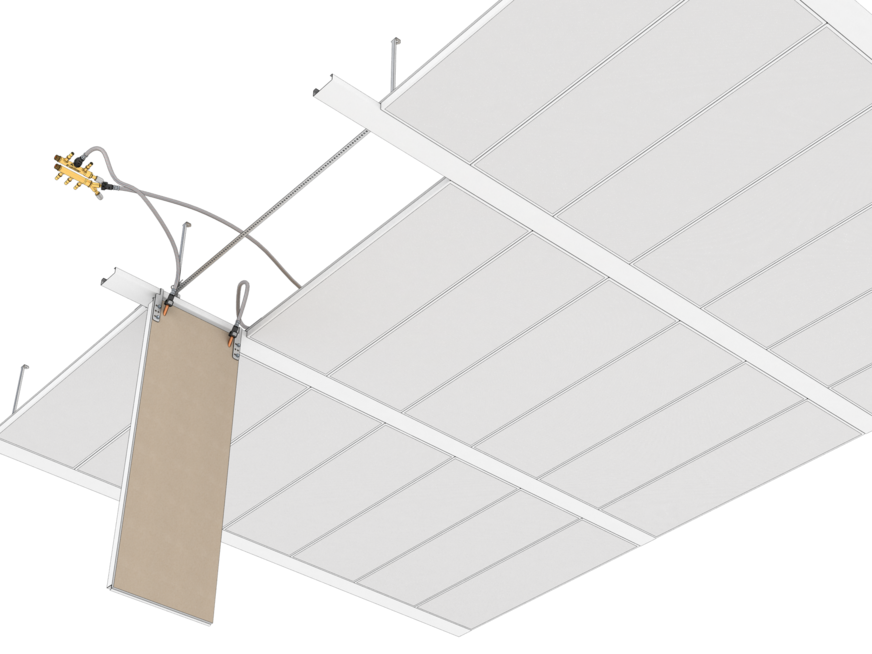

  • easy maintenance option due to ceiling panels that can be individually operated without tools
  • hygienic and easy to clean

Downloads

Downloads

Digital Service

NBS Specifications

Product Information

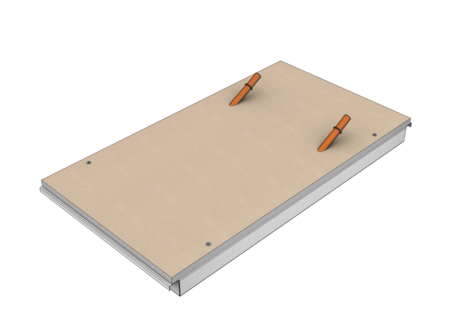

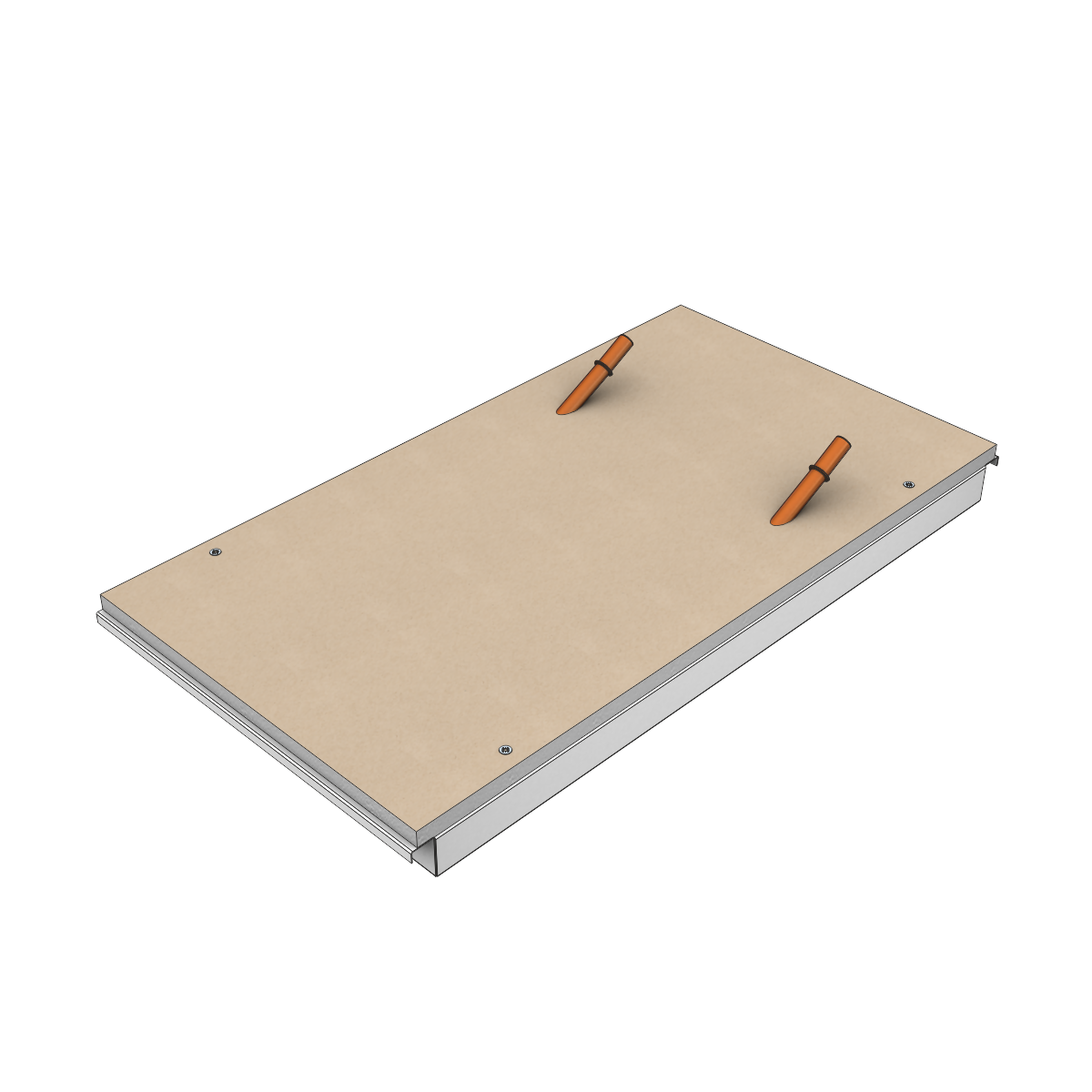

Ceiling elements
Technical details

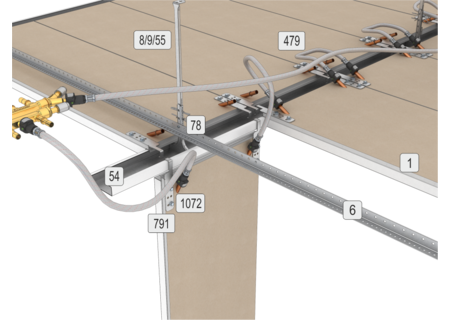

Component list
Acoustics
Fire protection
HVAC
Durability
Sustainability
Certification

Don't hesitate to contact us!

Additional Equipment - (2)

Examples for areas of application

Work: Facilities for Meetings, Conventions and Conferences, Office buildings, Common Rooms, Stage and Studio Rooms, Broadcasting Rooms, Television Studios

Public Institutions: Court Houses, Government Buildings

Businesses, Recreation and Culture: Banks

Education: Research Rooms, School of Higher Education, Schools

Hotels and Gastronomy: Restaurants and Canteens, Hotels and Resorts

Certificate

ce-zeichen
TAIM

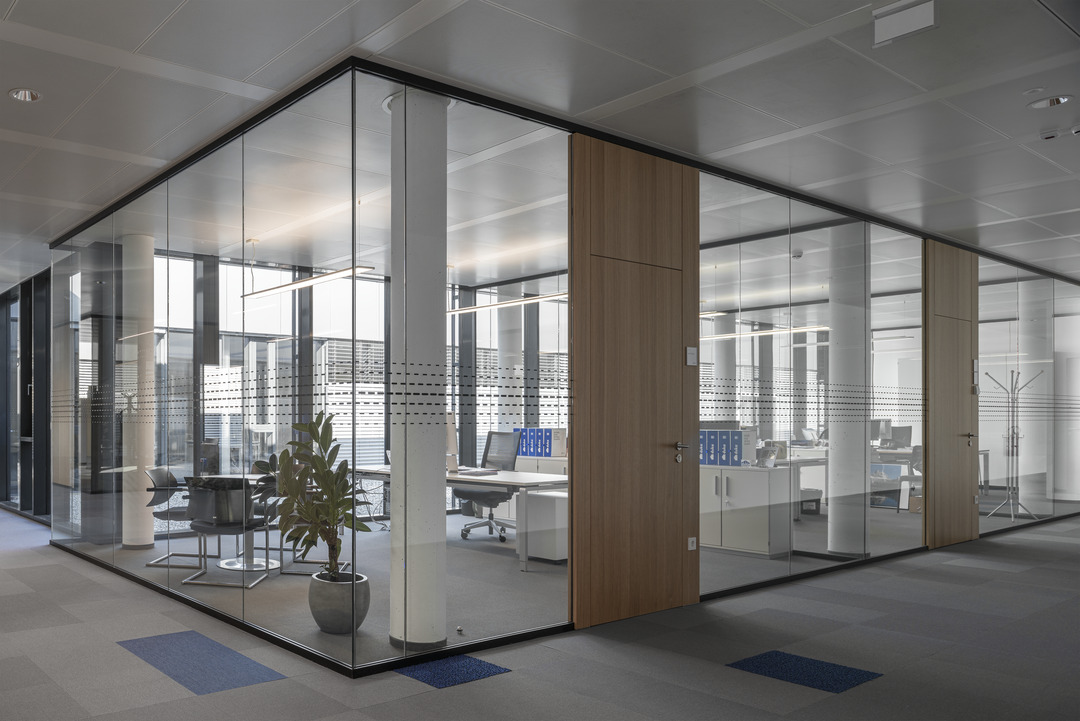

References
