via raised floor

Presence sensor
Switch
Daylight sensor
Push-button

4,000 mm

6,000 mm

2,500 mm

DIN EN ISO 3382 2

0.30 s

DIN EN ISO 11957

D _w

33 dB

DIN EN ISO 717 3

D _w

33 dB

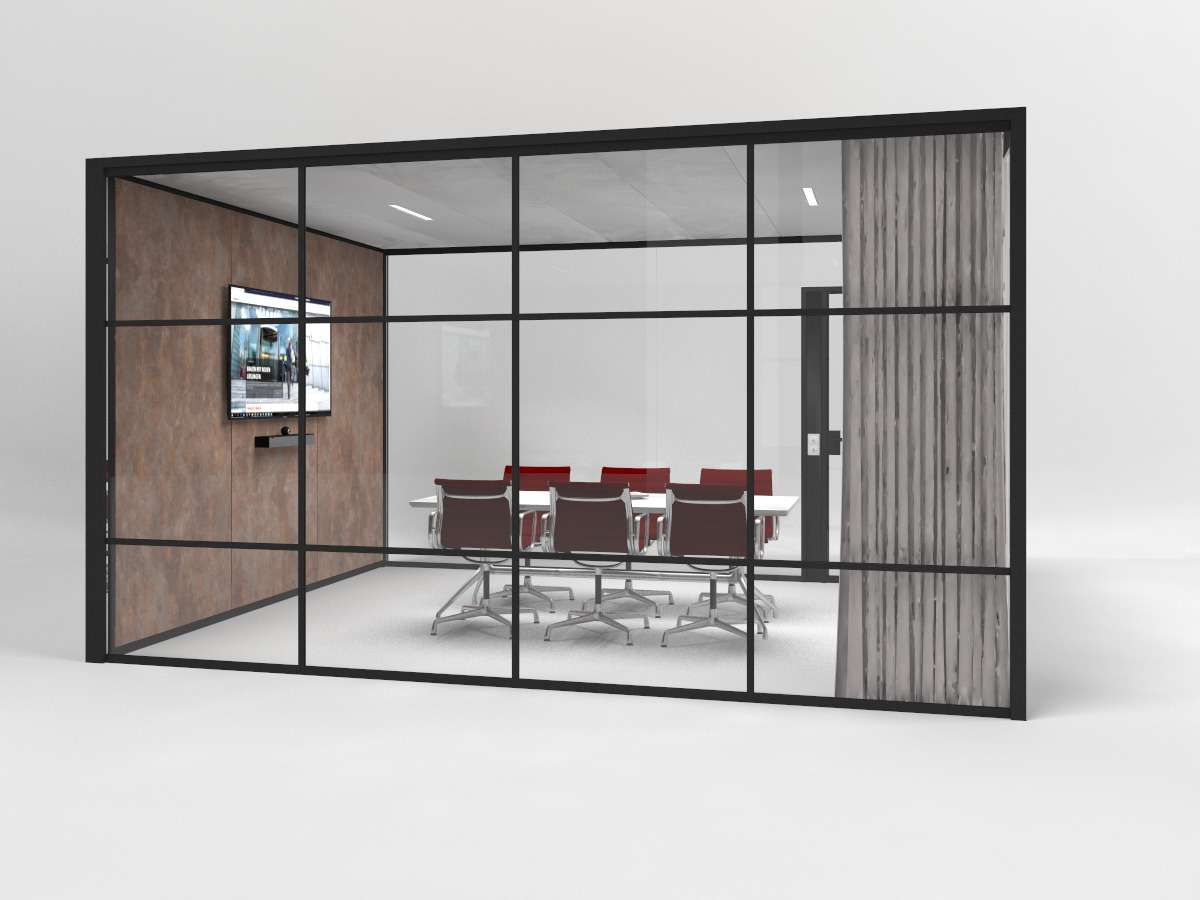

Example case with Lindner Life Pure 620 (12mmVSG) and wooden door leaf

Supply and circulation of fresh air via supply and exhaust air slots in the ceiling panels
Variant 1: Connected to present ventilation system
Variant 2: independent supply installed on the ceiling of Lindner Cube

Variant 1: Connection to existing cold water network
Variant 2: Connection to self-contained cooling unit (stand-alone chiller)
Optional via acoustically effective chilled ceilings (type Plafotherm^® Cube SD) in order to create radiation cold

DIN 4103 1

Installation area 1

ETAG 003

III

Self-Declaration according to ISO 14021

This describes the amount of carbon dioxide emissions generated during the individual stages of the product's life. The global warming potential (GWP) is given as a CO2 equivalent and describes the contribution of a substance to the warming of the air layers near the ground (greenhouse effect). This is considered in relation to the global warming potential of CO2. The lower this value is, the lower the associated environmental impact. A carbon footprint in accordance with DIN EN ISO 14067 can be created for our systems on request.
