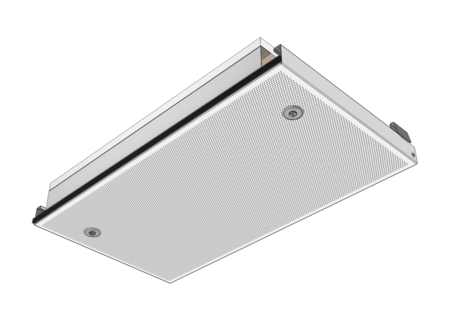

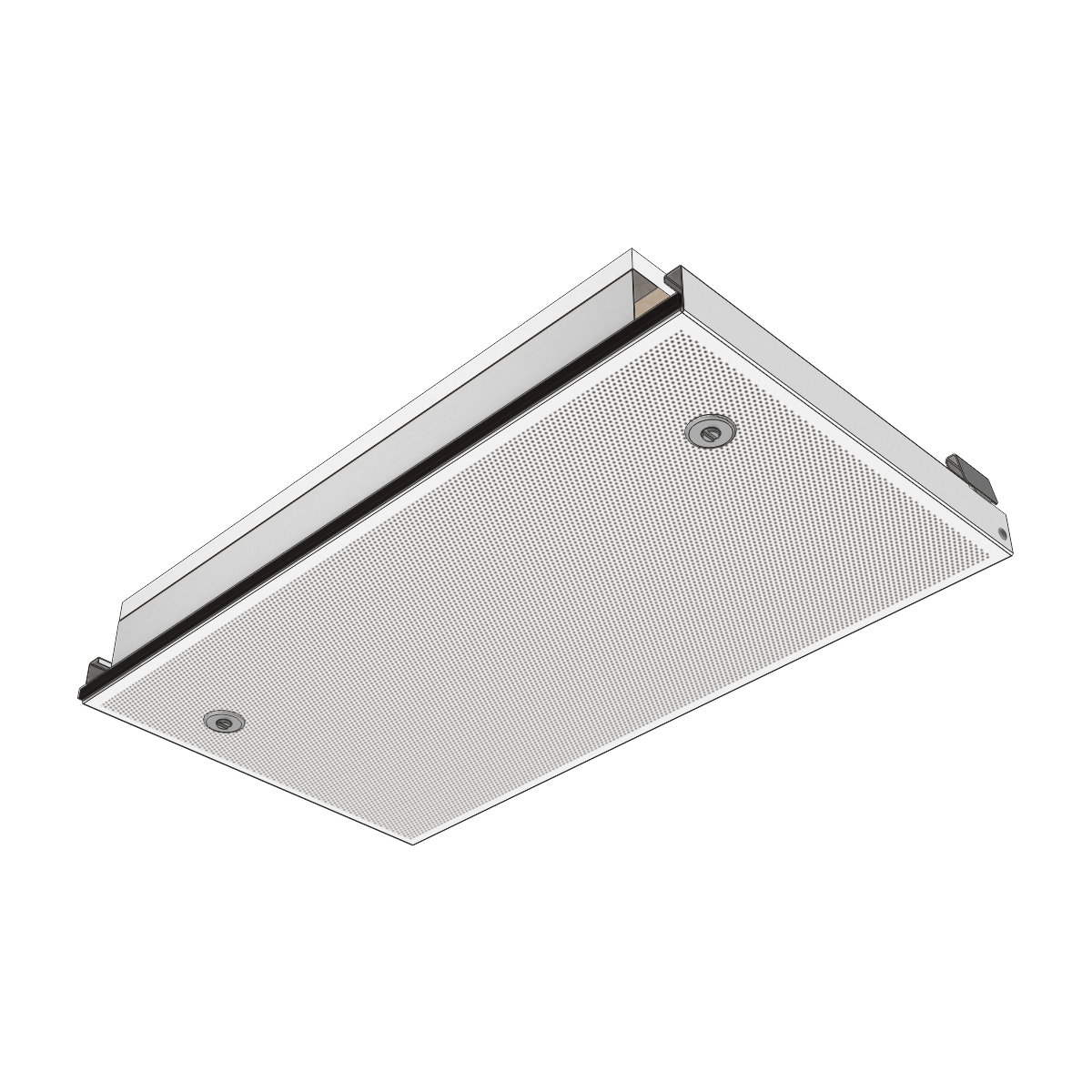

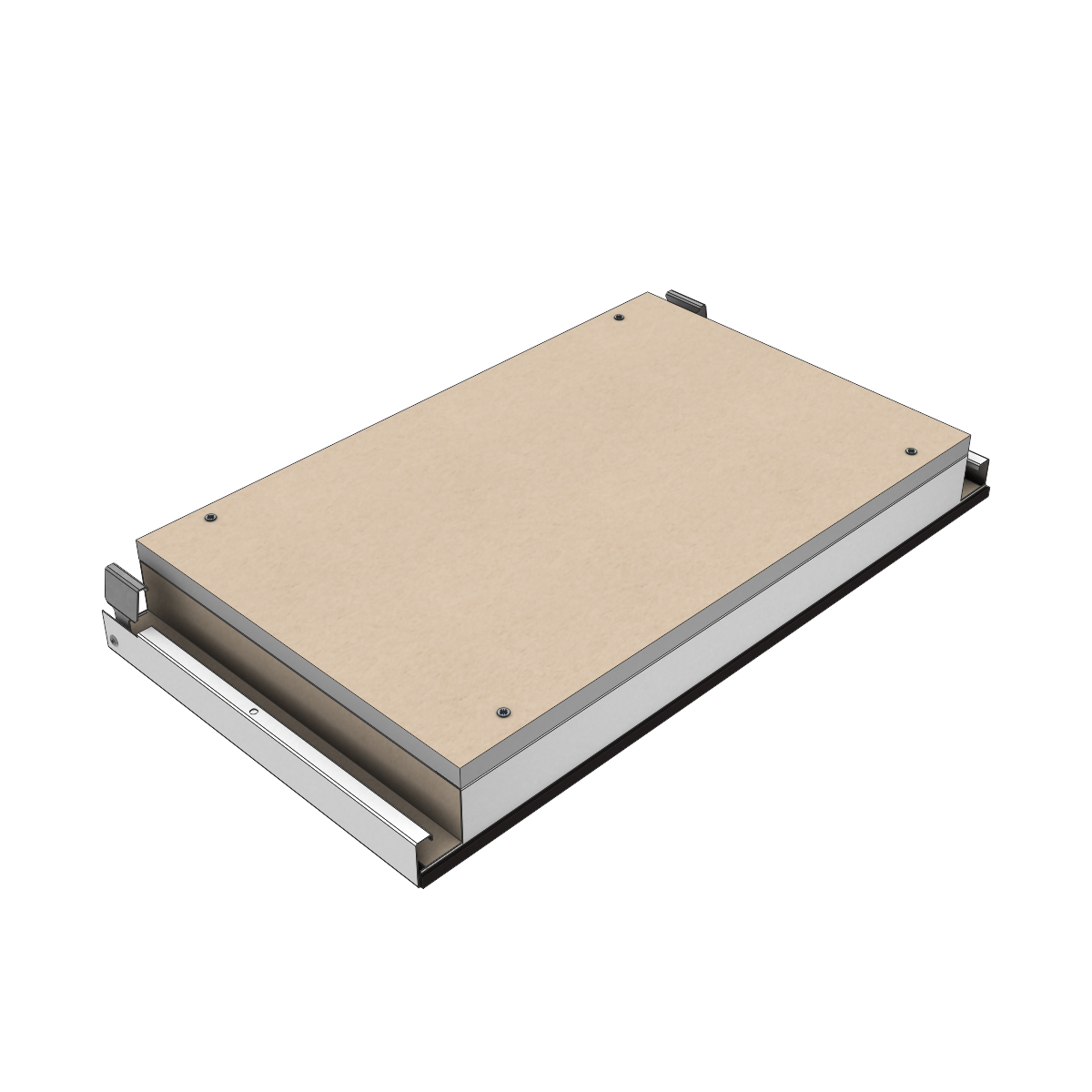

EI30-VKF Hook-On-Swing-Down-Slide

LMD Fire Rated Metal Ceiling application acc. to VKF

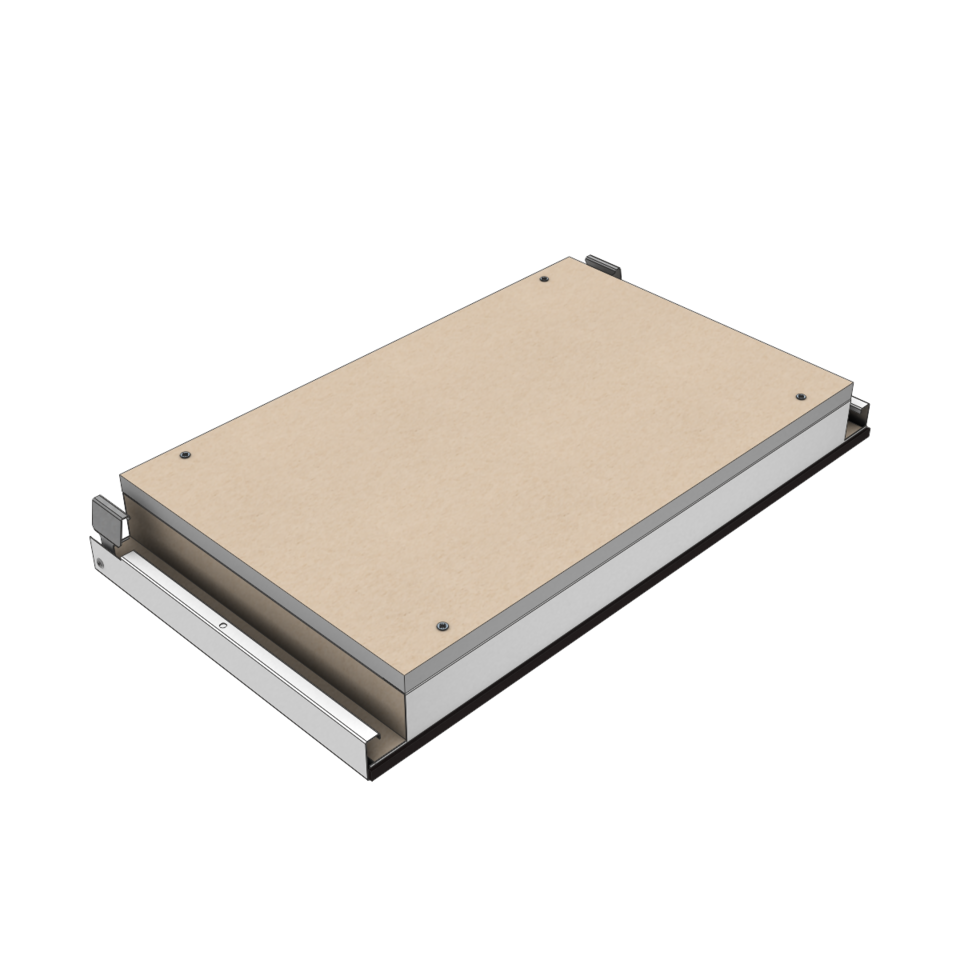

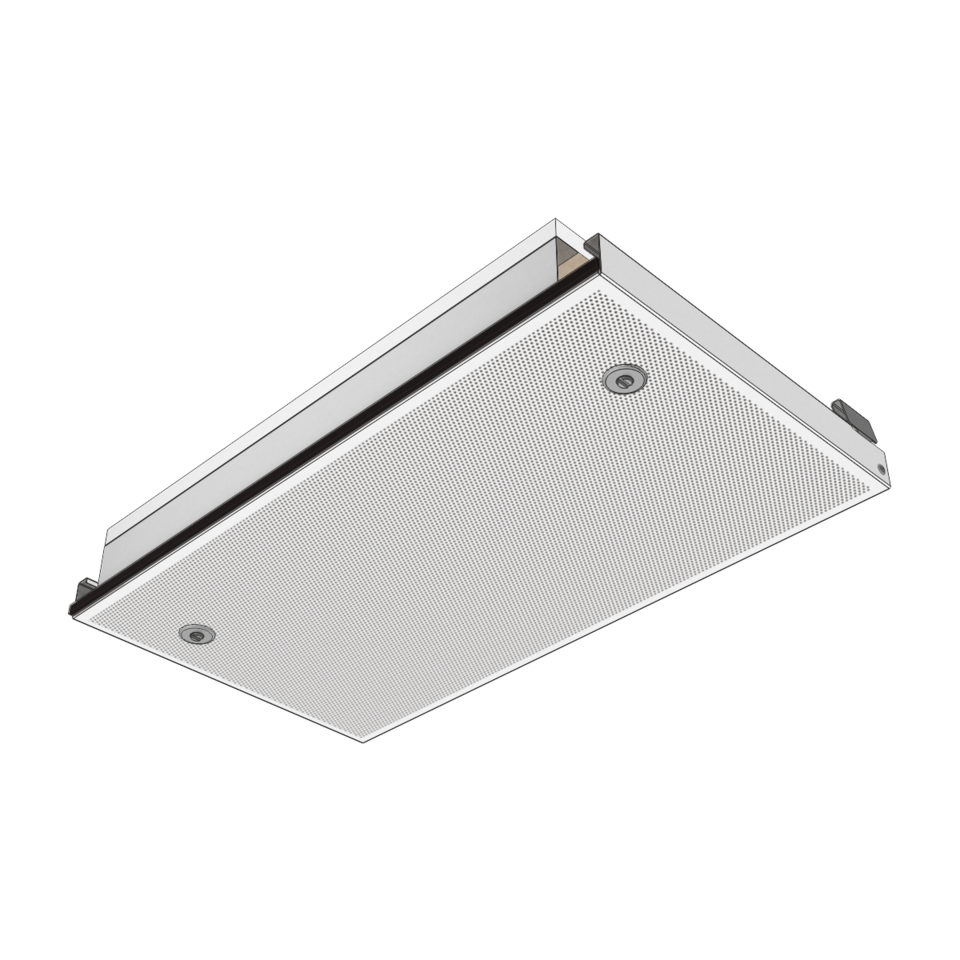

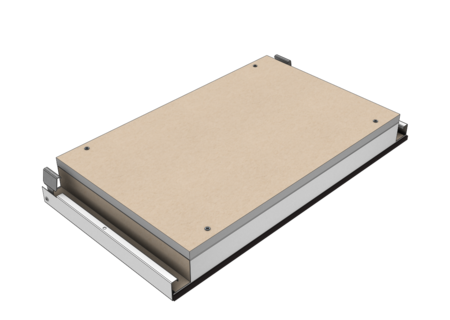

The ceiling elements of this fire rated ceiling can be removed or swung down and slid without the need for any tools. No additional ceiling void is necessary for maintenance works. Moreover, up to three ceiling elements can be moved together to facilitate maintenance works. Tolerances on the wall can be compensated. Lockable elements are available for areas with increased safety requirements.

  • VKF fire protection application No. 26870
  • freely spanned construction

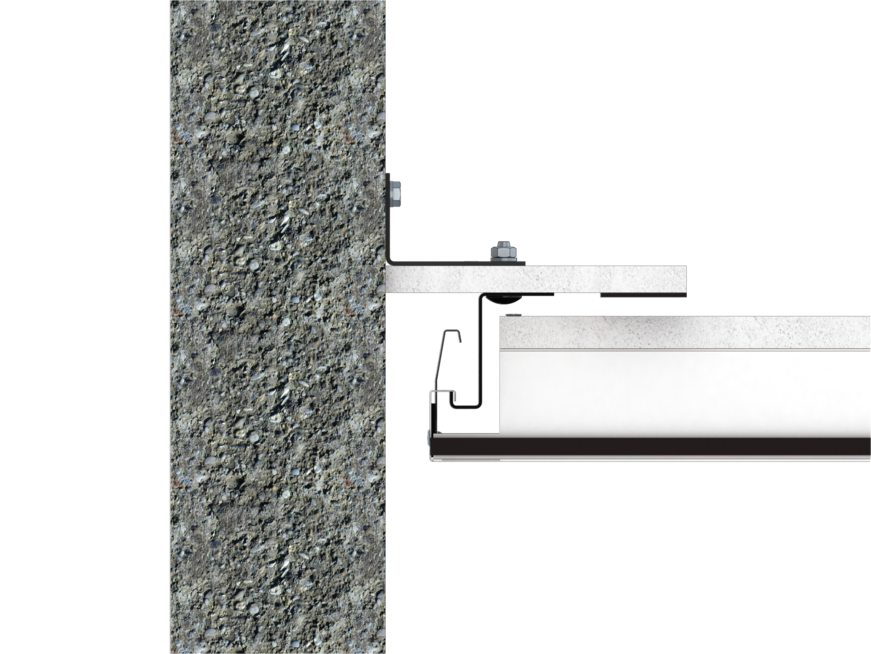

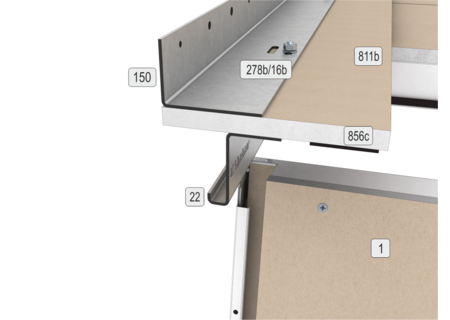

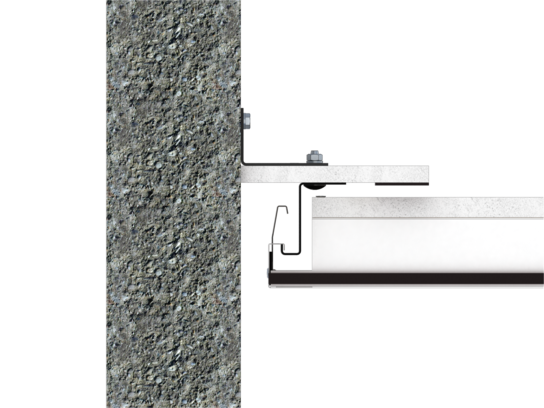

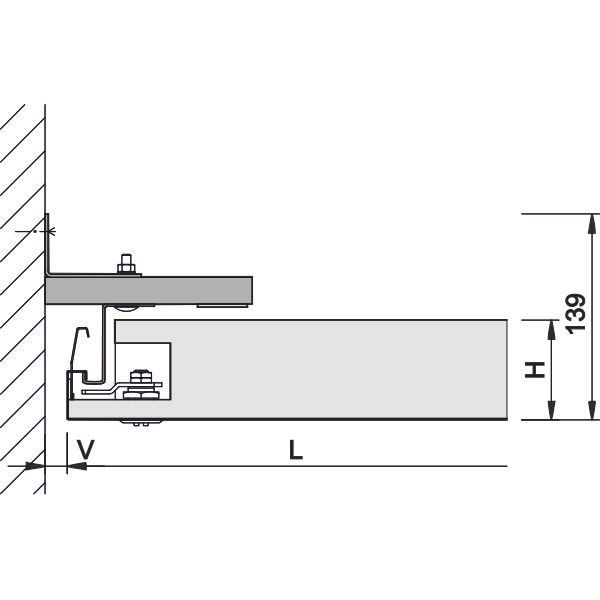

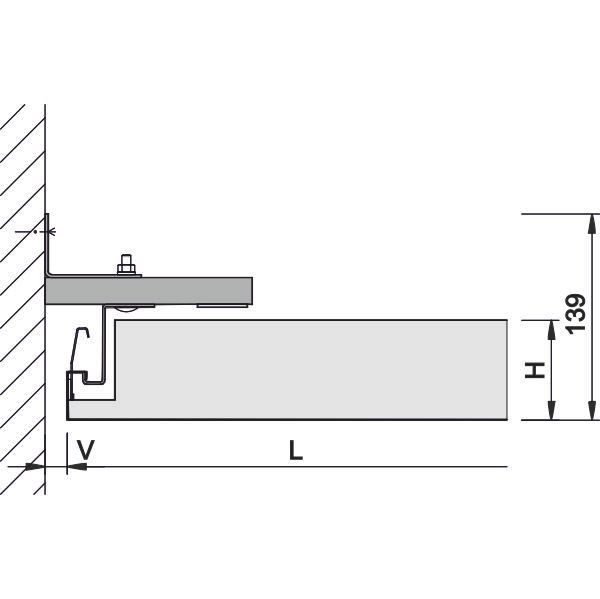

  • good compensation of tolerances on the wall is possible due to an adjustable wall connection

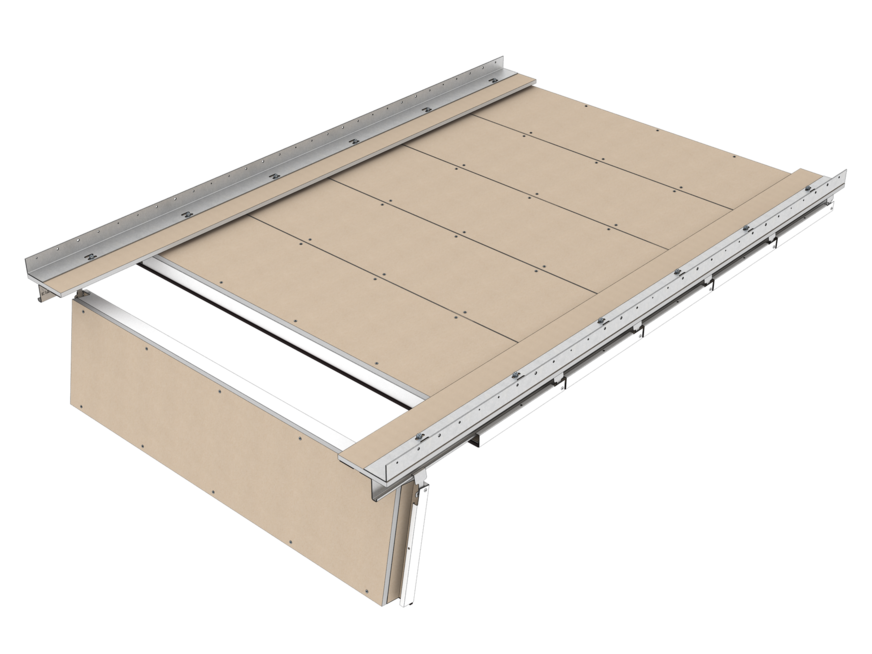

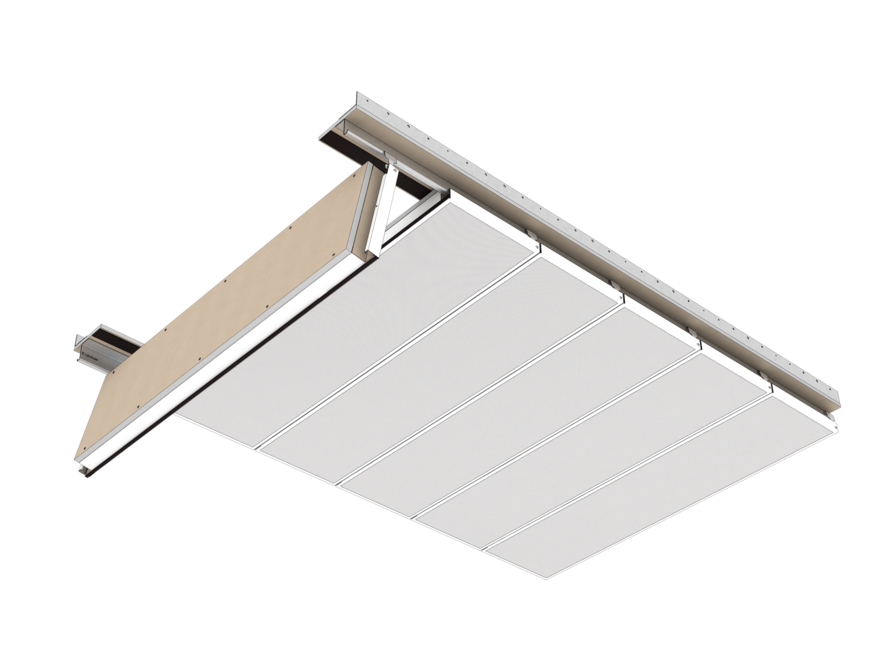

  • maintenance option due to ceiling elements that can be individually operated, swung down and slid without tools
  • swung down ceiling elements can be moved together to receive a large inspection opening (approx. 3,000 x 2,000 mm)
  • no additional ceiling void is necessary for maintenance works
  • hygienic and easy to clean

Downloads

Downloads

Digital Service

NBS Specifications

Product Information

Ceiling elements
Technical details
Component list
Acoustics
Fire protection
Static
Durability
Sustainability
Certification
