Plafotherm® B 110

Heated and Chilled Post Cap Ceiling with Cross Noggins

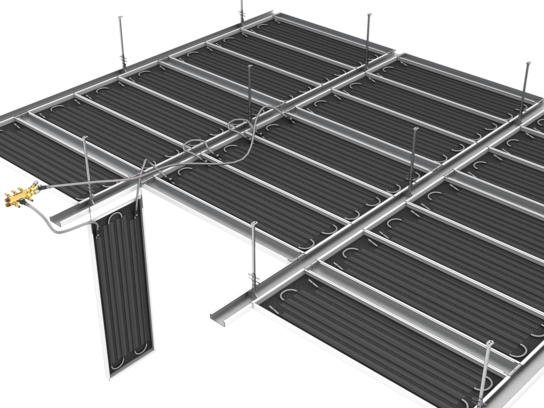

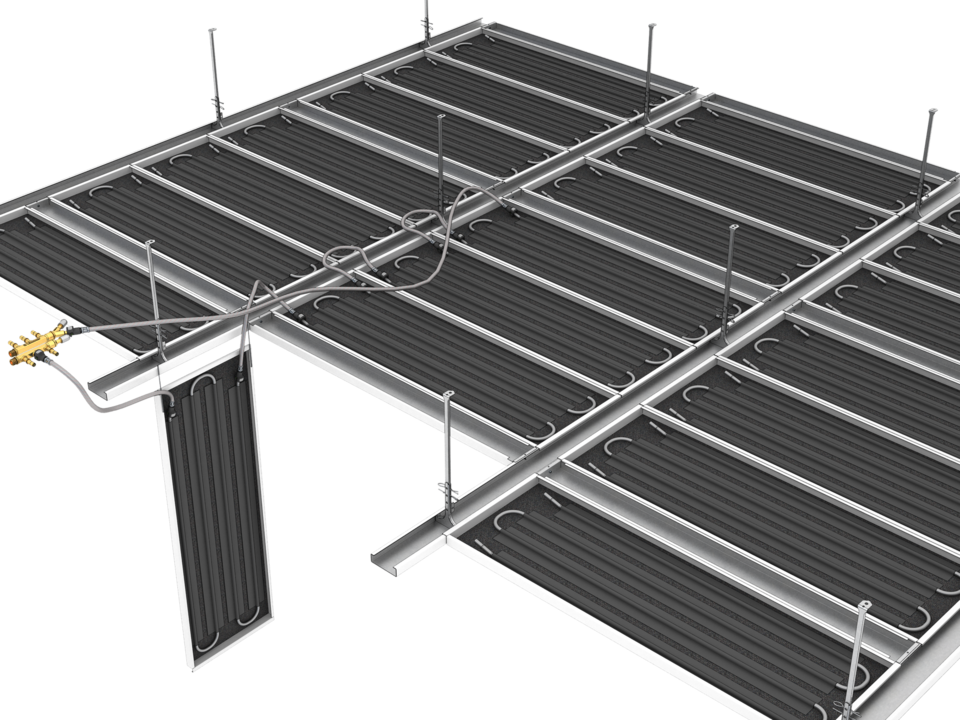

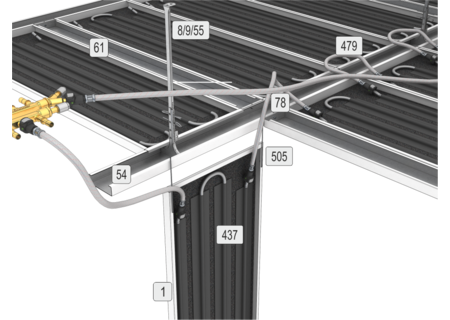

This post cap ceiling creates an ideal indoor climate thanks to radiant heating and cooling. Cross noggins define the visual appearance of this system and offer many advantages: partitions can be fastened to post caps in both directions. Moreover, possible future room sizes can be identified. Luminaires or technical installations can be integrated into the post caps. The post cap ceiling with cross noggins has a low construction height and is maintenance-friendly thanks to ceiling panels that can individually be operated. Thermally active and passive areas can be combined.

  • heating/cooling by means of radiation creates a pleasant room climate
  • flexibility thanks to the combination of thermally active and passive areas
  • visible cross noggins as design elements
  • individual room layout thanks to the possibility to fasten partitions to post caps in both directions
  • post caps can be used for technical installations or luminaires
  • space-saving ceiling system with low construction height

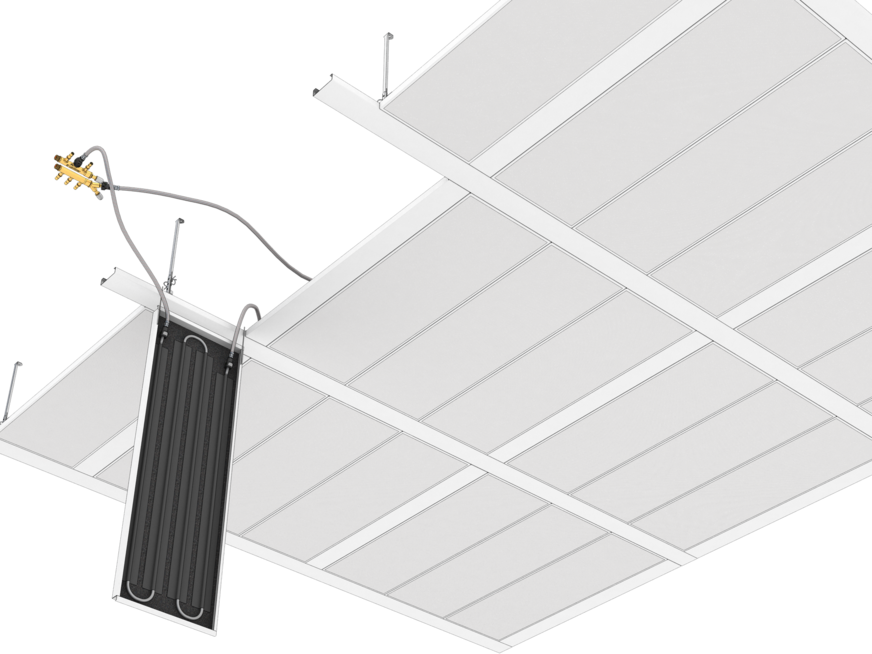

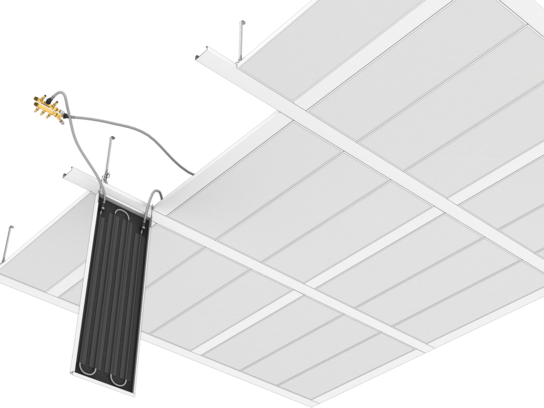

  • easy maintenance option due to ceiling panels that can be individually operated, swung down and slid
  • possible future room sizes can be identified
  • hygienic and easy to clean

Downloads

Downloads

Digital Service

NBS Specifications

Product Information

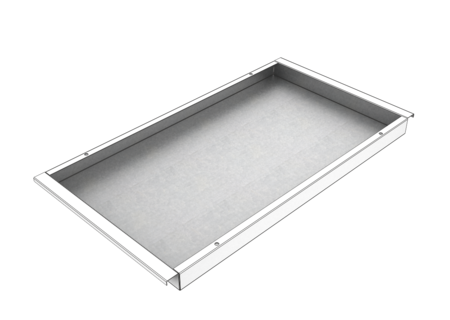

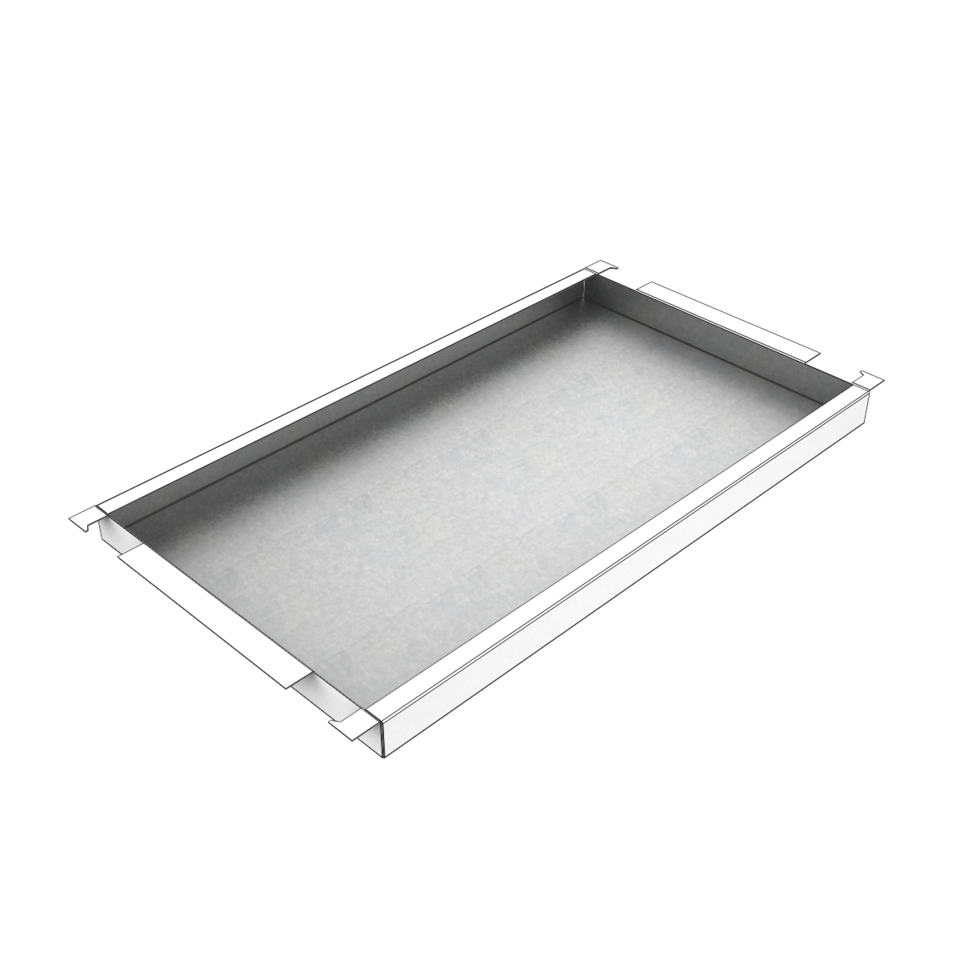

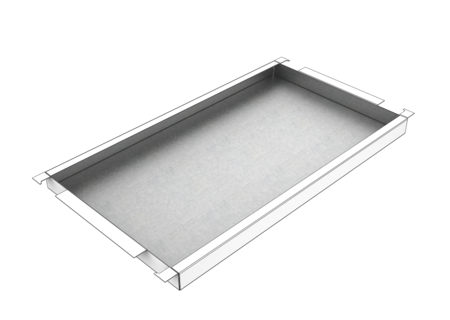

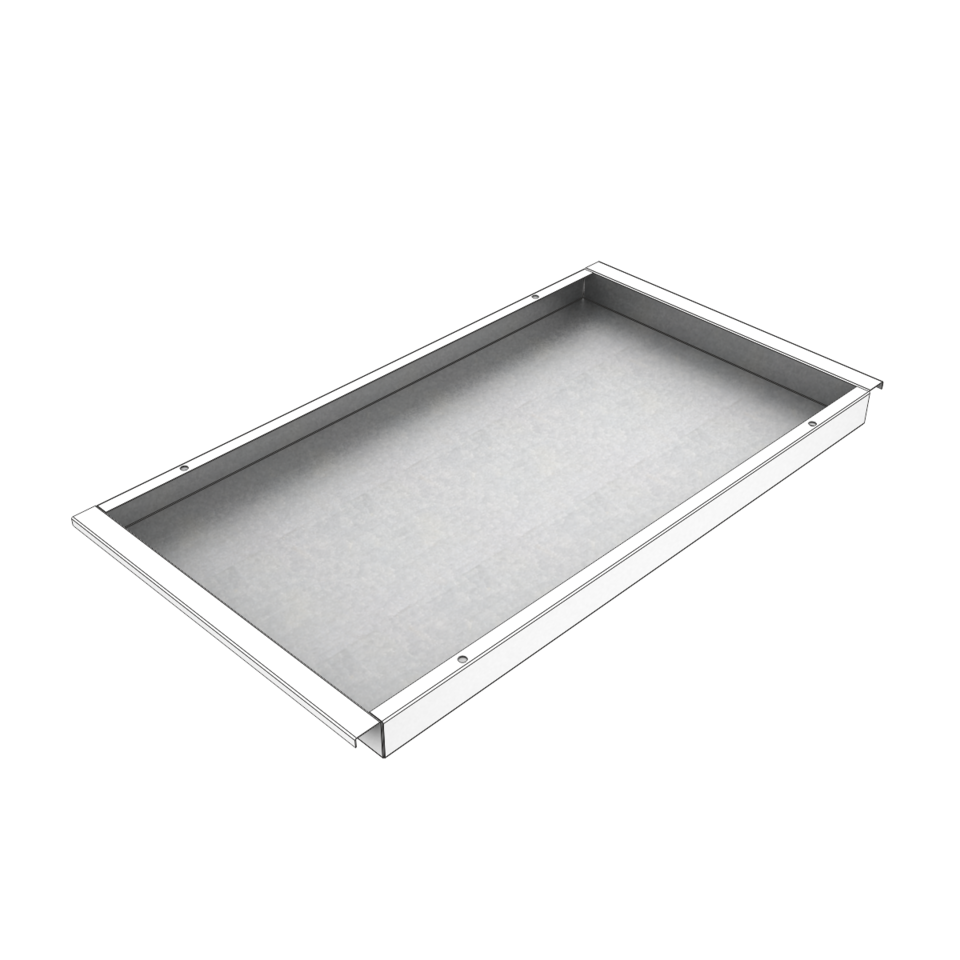

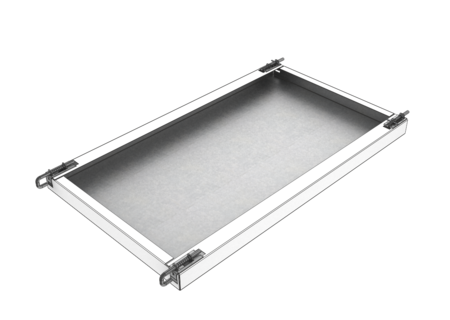

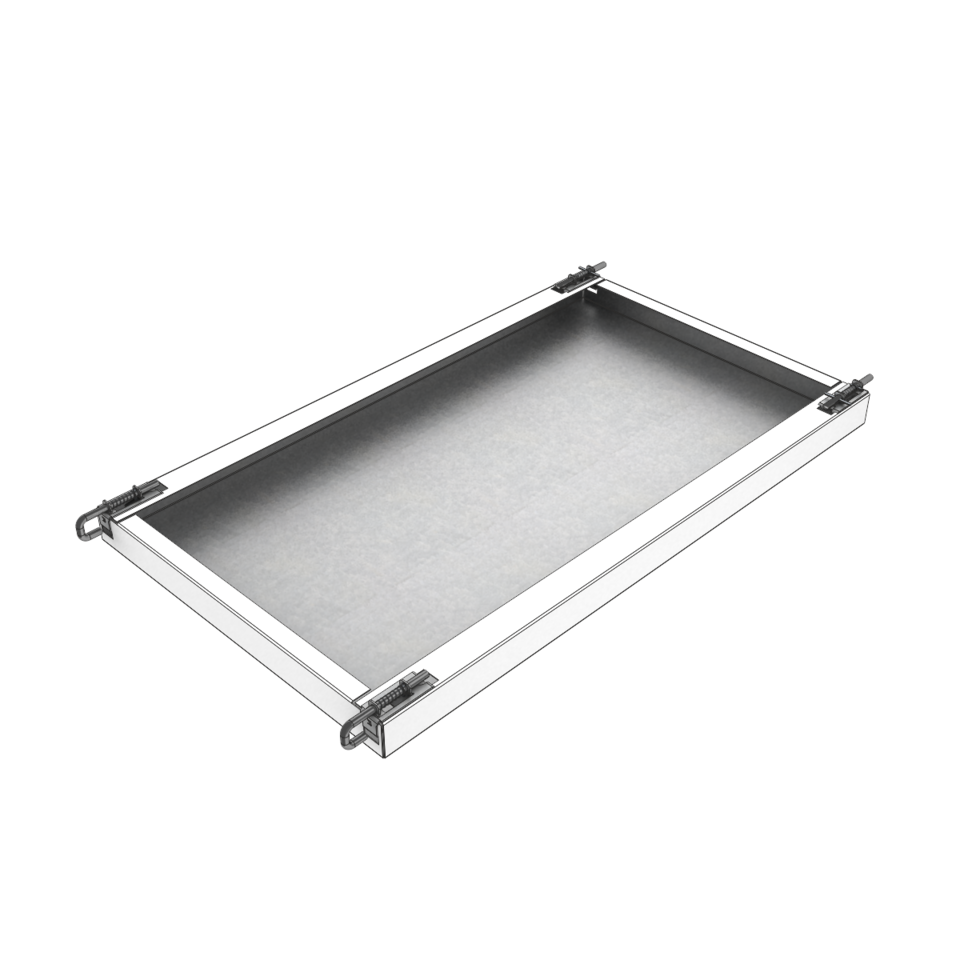

Ceiling elements

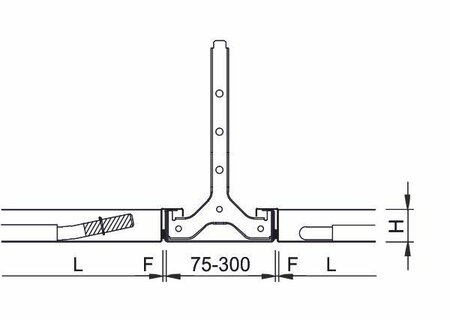

Technical details
Component list
Acoustics
Fire protection
HVAC
Durability
Sustainability
Certification

Don't hesitate to contact us!

Additional Equipment - (16)

Examples for areas of application

Work: Facilities for Meetings, Conventions and Conferences, Office buildings, Common Rooms, Stage and Studio Rooms, Broadcasting Rooms, Television Studios

Education: School of Higher Education, Schools, Research Rooms

Businesses, Recreation and Culture: Banks, Places of Assembly, Cinemas and Theatres

Public Institutions: Court Houses, Government Buildings

Hotels and Gastronomy: Restaurants and Canteens, Hotels and Resorts

Transport: Airports

Public Areas: Entrance Areas

Industry: Production Facilities

Certificate

ce-zeichen
TAIM

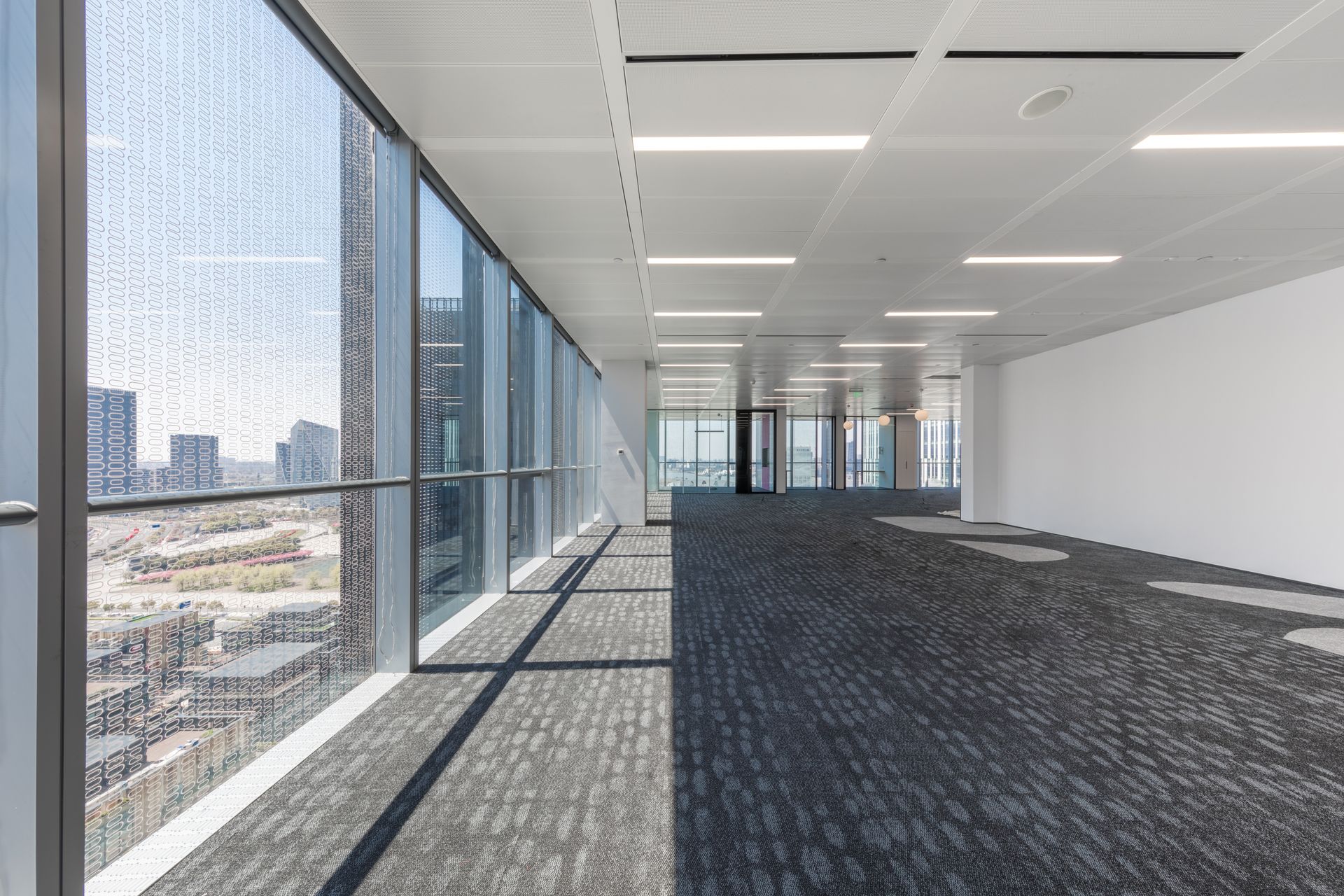

References
