MESHdesign Light

Filigree Expanded Metal

MESHdesign Light

Filigree Expanded Metal

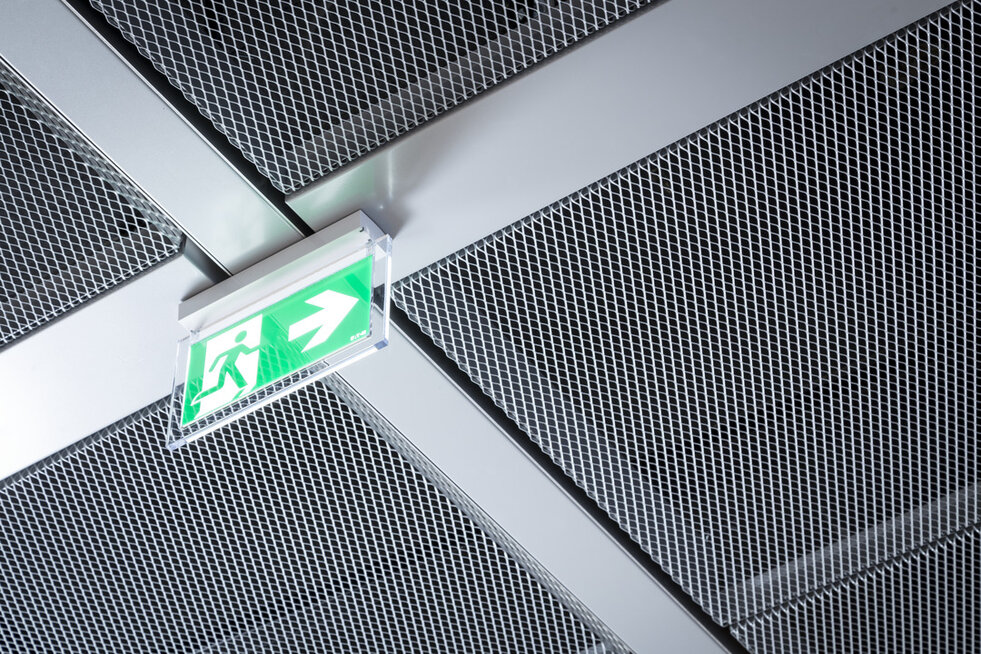

Expanded metal offers numerous design options: diamond and square meshes are available in different sizes. The meshes of MESHdesign Light are especially filigree. Thus, it has an open appearance in combination with the frameless expanded metal ceiling LMD-St 215. Expanded metal is acoustically effective thanks to acoustic inlays on the rear side.

almost unlimited diversity of structures, sizes and surfaces
filigree expanded metal meshes for open appearance
acoustically effective in combination with sound absorbing inlays

Data Sheet

MESHdesign LightApplication

Downloads

Brochures (1)

Downloads

More items

Digital Service

NBS Specifications

Product Information

Variants

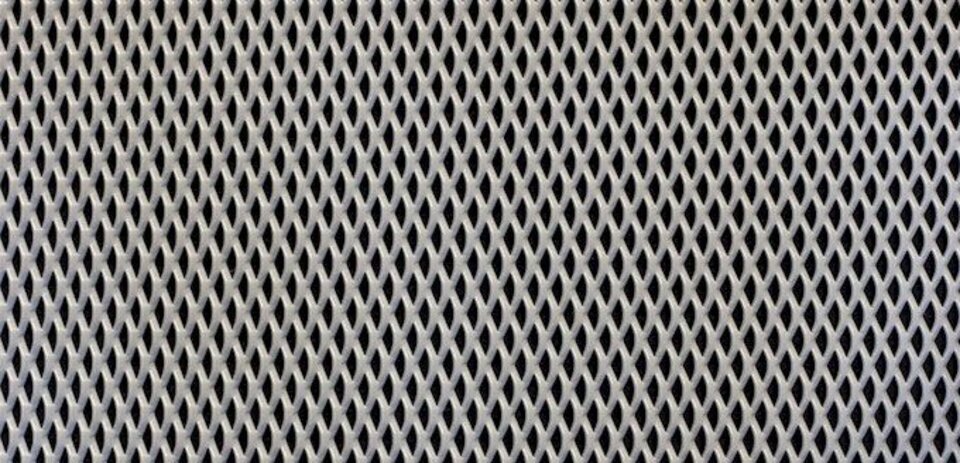

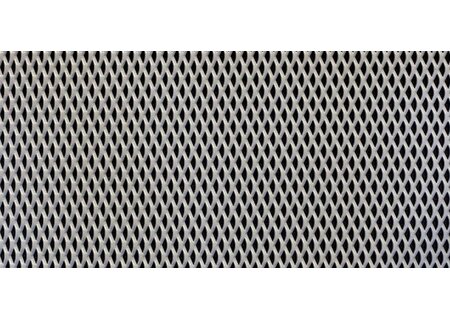

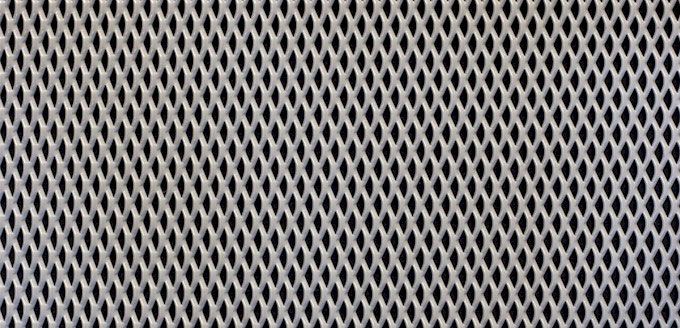

RM 12.7 x 6 x 1.5 x 1.0

Surface

mesh type: diamond mesh
open area: 50 %
expanded metal thickness: approx. 3 mm
mesh length: 12.7 mm
mesh width: 6 mm
strand width: 1.5 mm
strand thickness: 1.0 mm

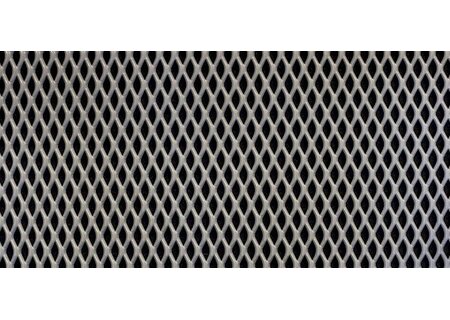

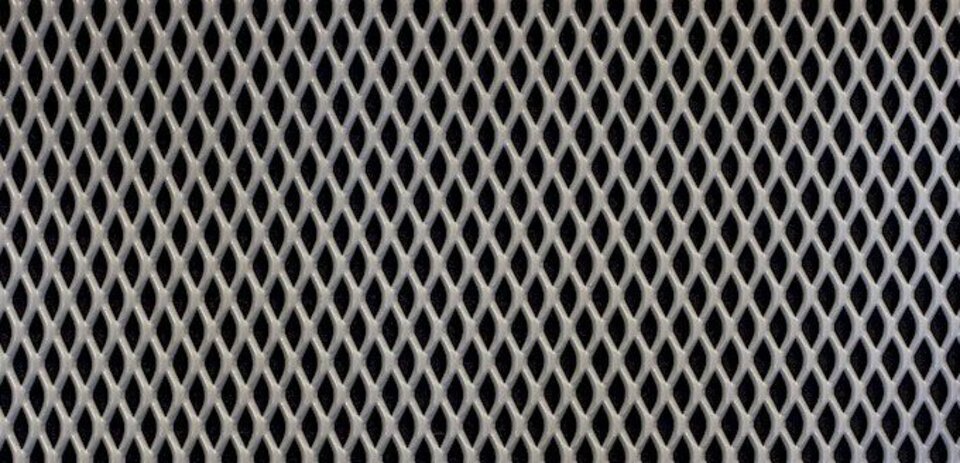

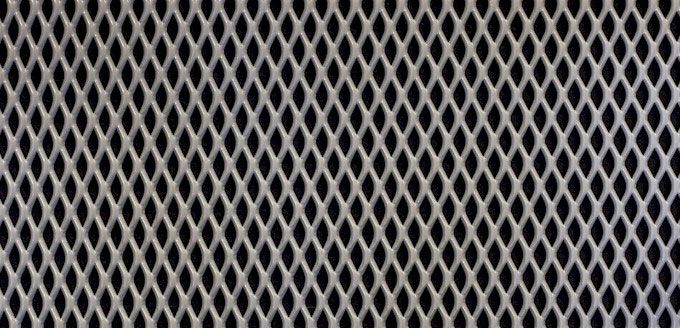

RM 16 x 8 x 1.5 x 1.0

Surface

mesh type: diamond mesh
open area: 62.5 %
expanded metal thickness: approx. 3 mm
mesh length: 16 mm
mesh width: 8 mm
strand width: 1.5 mm
strand thickness: 1.0 mm

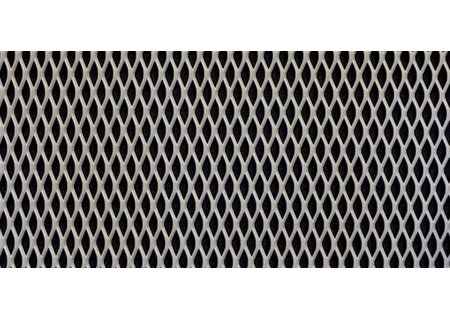

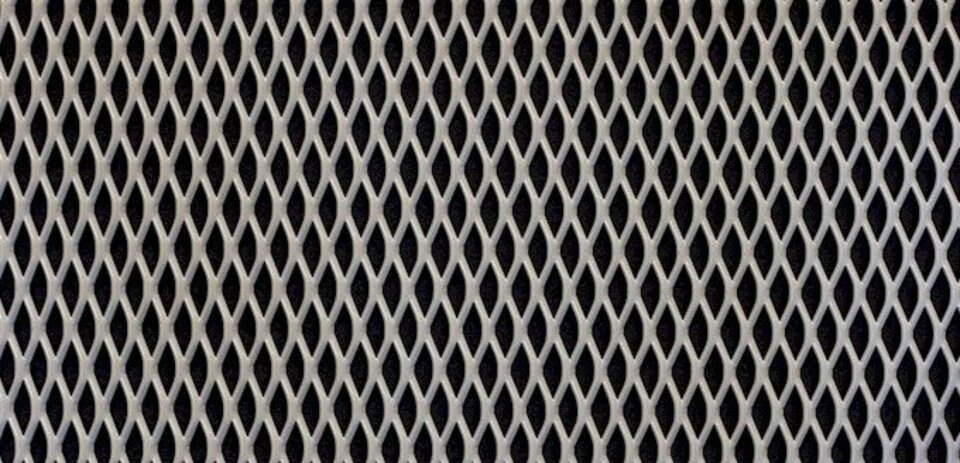

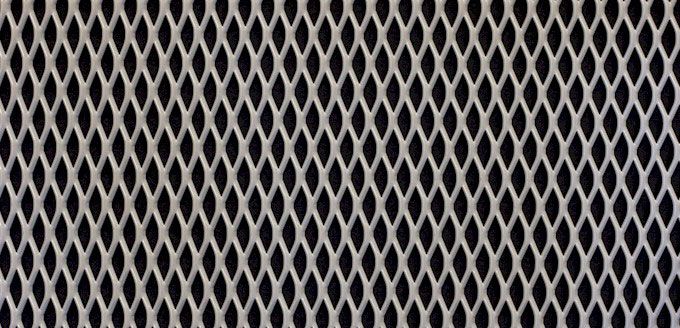

RM 20 x 8 x 1.5 x 1.0

Surface

mesh type: diamond mesh
open area: 62.5 %
expanded metal thickness: approx. 3 mm
mesh length: 20 mm
mesh width: 8 mm
strand width: 1.5 mm
strand thickness: 1.0 mm

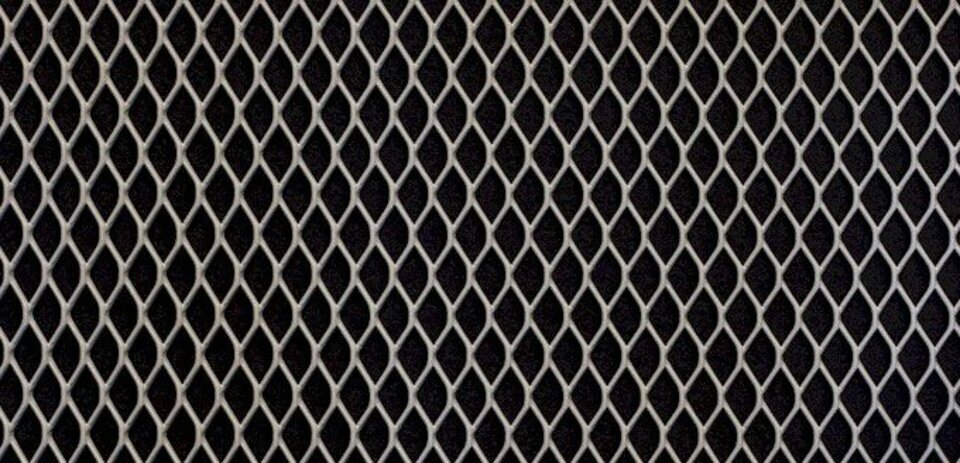

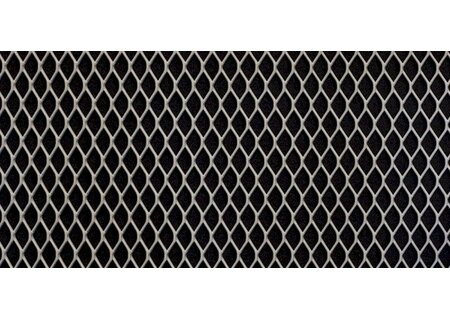

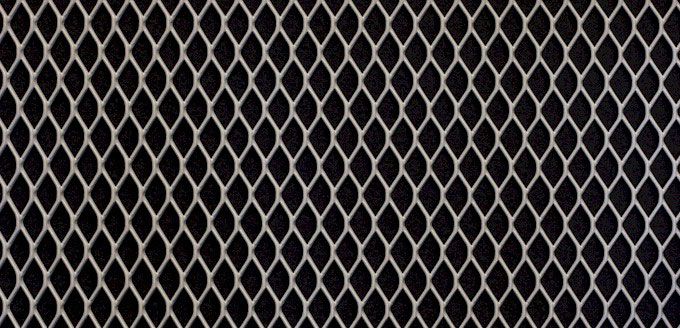

RM 20 x 10 x 1.5 x 1.0

Surface

mesh type: diamond mesh
open area: 70 %
expanded metal thickness: approx. 3 mm
mesh length: 20 mm
mesh width: 10 mm
strand width: 1.5 mm
strand thickness: 1.0 mm

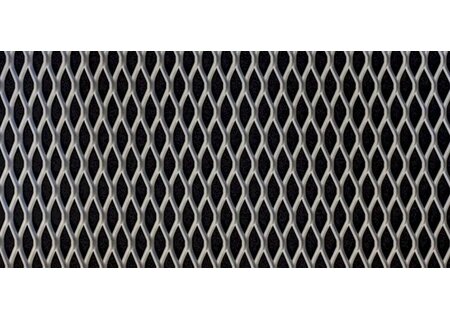

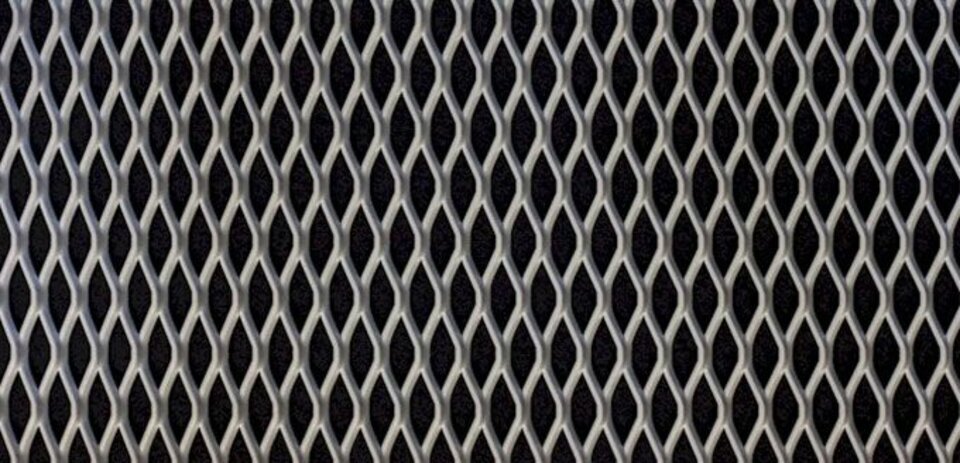

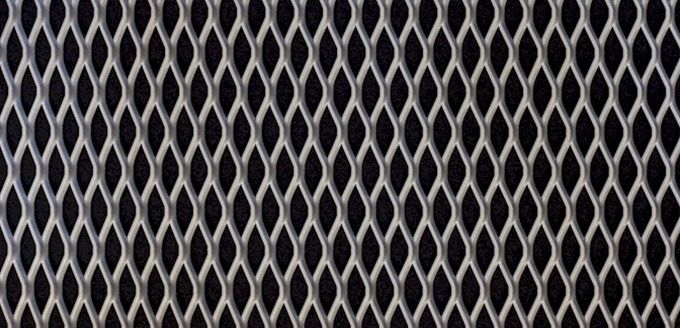

RM 28 x 10 x 1.5 x 1.0

Surface

mesh type: diamond mesh
open area: 70 %
expanded metal thickness: approx. 3 mm
mesh length: 28 mm
mesh width: 10 mm
strand width: 1.5 mm
strand thickness: 1.0 mm

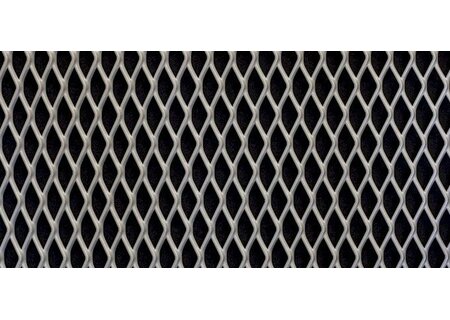

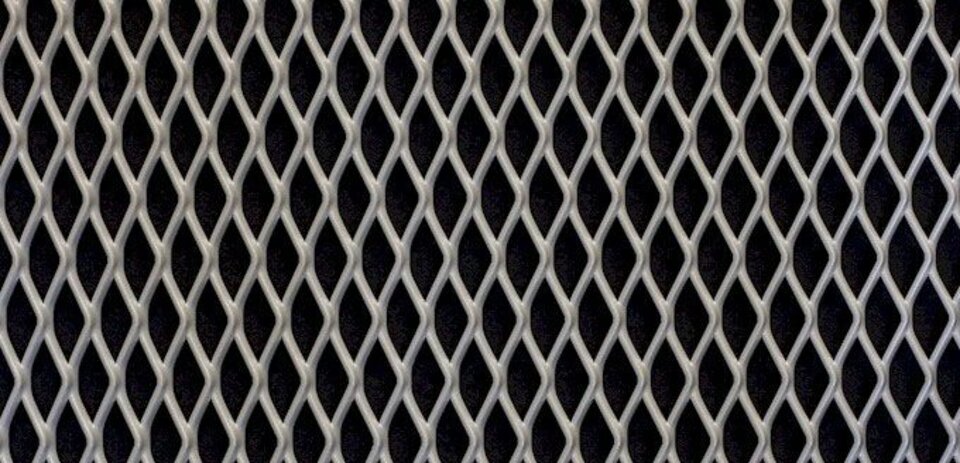

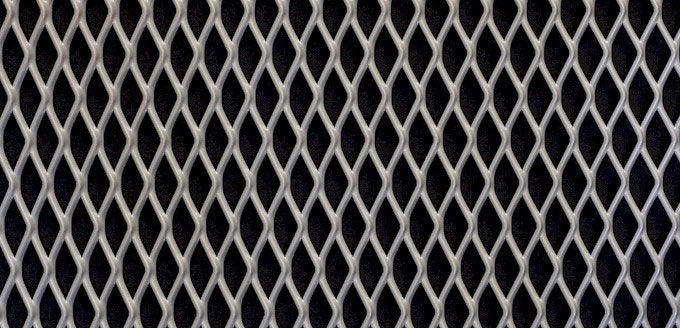

RM 28 x 12 x 1.5 x 1.0

Surface

mesh type: diamond mesh
open area: 75 %
expanded metal thickness: approx. 3 mm
mesh length: 28 mm
mesh width: 12 mm
strand width: 1.5 mm
strand thickness: 1.0 mm

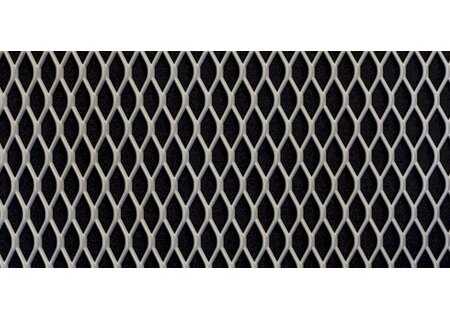

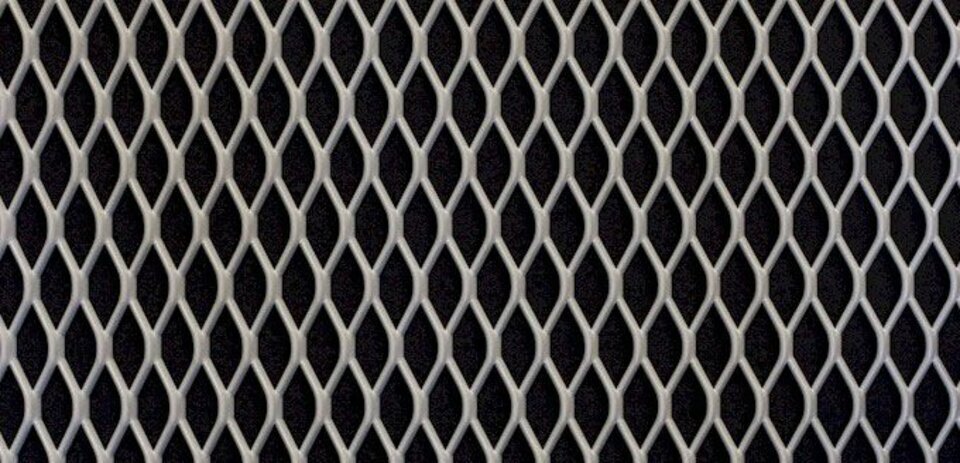

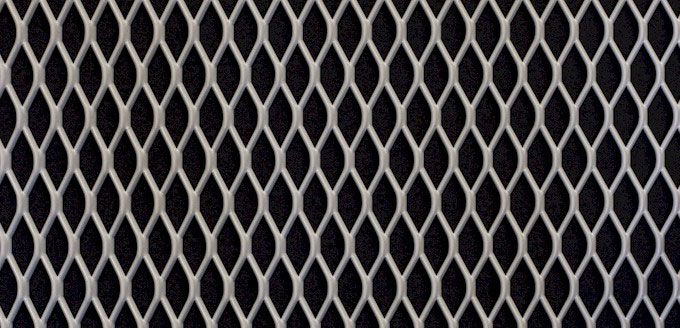

RM 30 x 12 x 1.5 x 1.0

Surface

mesh type: diamond mesh
open area: 75 %
expanded metal thickness: approx. 3 mm
mesh length: 30 mm
mesh width: 12 mm
strand width: 1.5 mm
strand thickness: 1.0 mm

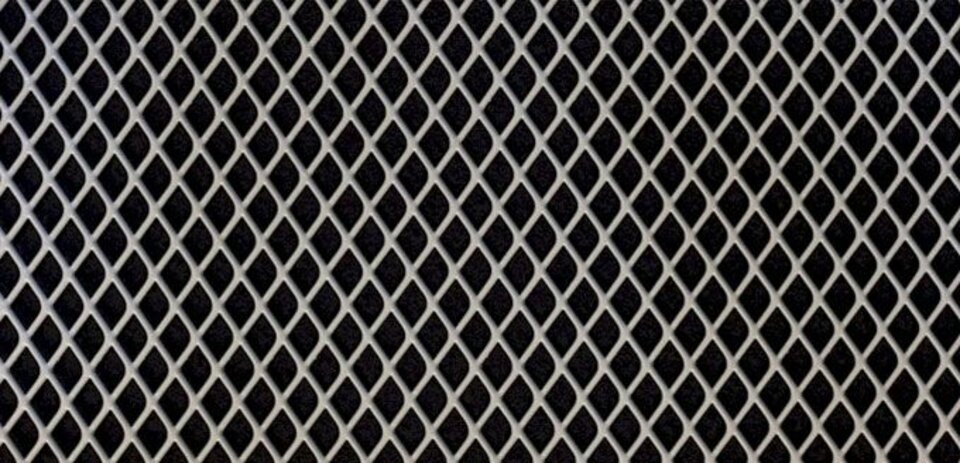

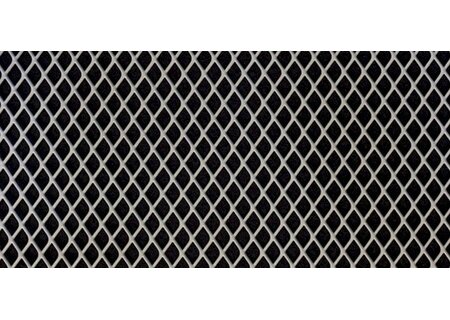

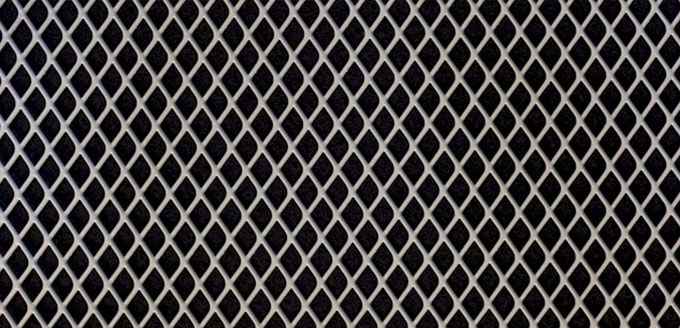

QM 16 x 11 x 1.5 x 1.0

Surface

mesh type: square mesh
open area: 73 %
expanded metal thickness: approx. 3 mm
mesh length: 16 mm
mesh width: 11 mm
strand width: 1.5 mm
strand thickness: 1.0 mm

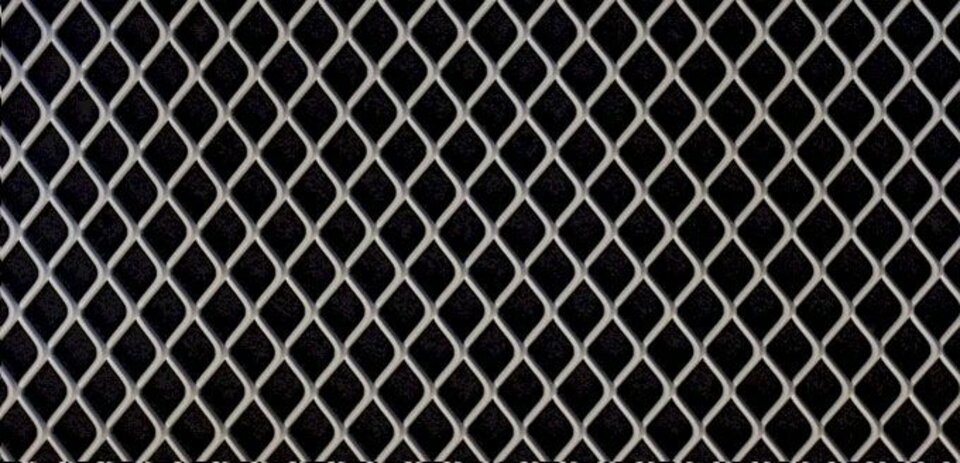

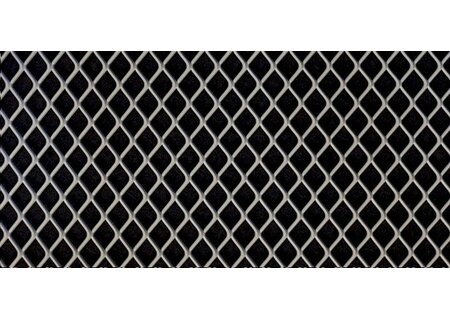

QM 20 x 15 x 1.5 x 1.0

Surface

mesh type: square mesh
open area: 80 %
expanded metal thickness: approx. 3 mm
mesh length: 20 mm
mesh width: 15 mm
strand width: 1.5 mm
strand thickness: 1.0 mm
