EI90 Hook-On-Swing-Down-Slide

LMD Fire Rated Metal Ceiling classified acc. to DIN EN 13501-2

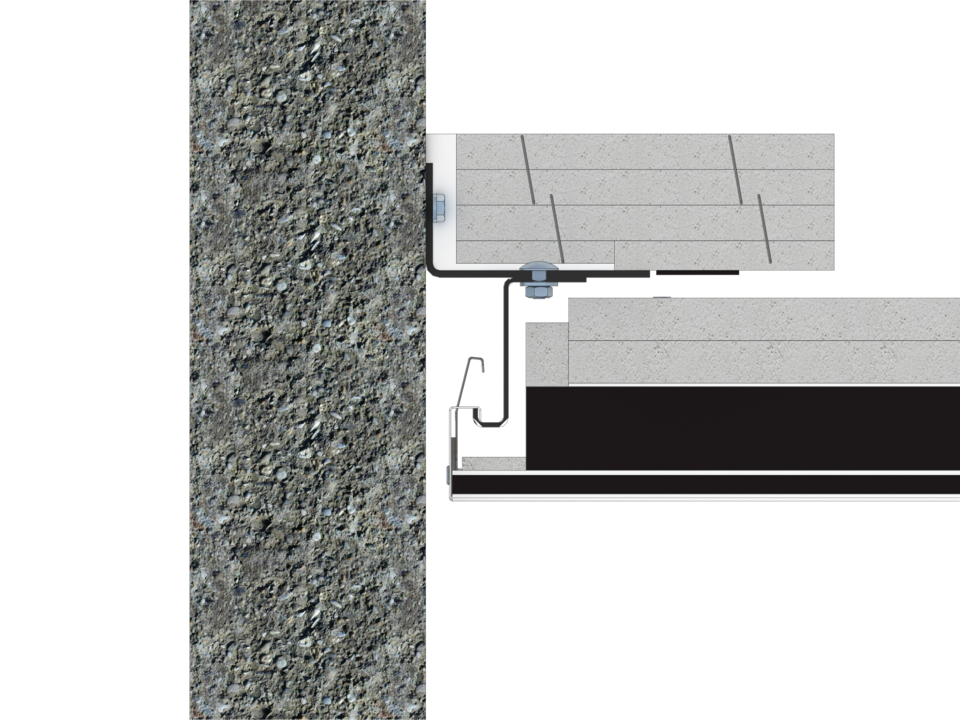

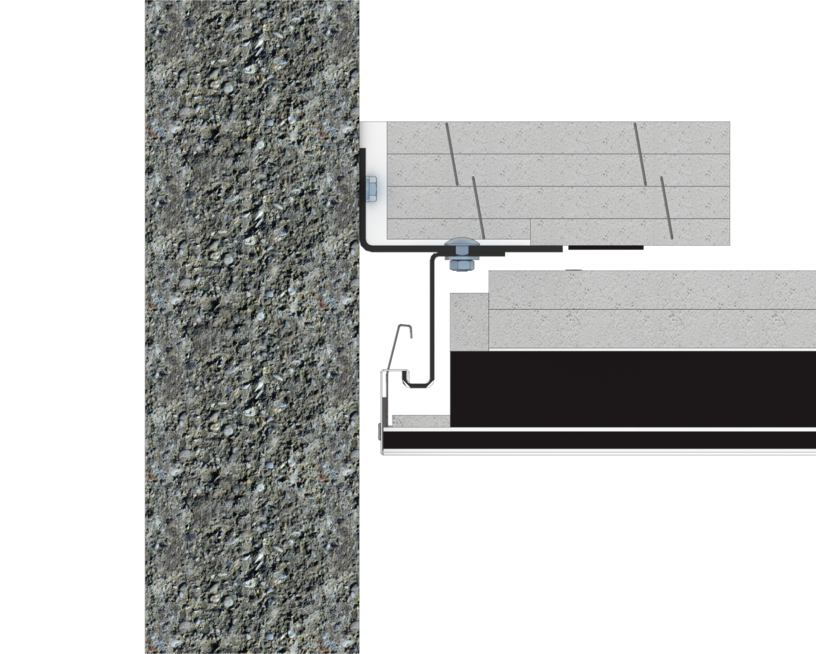

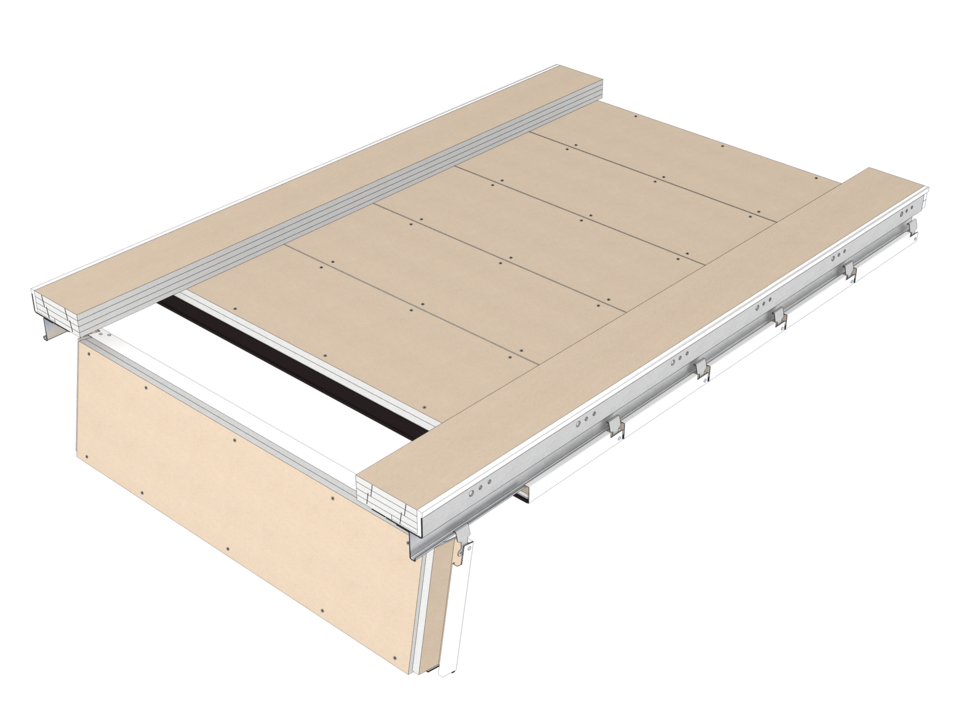

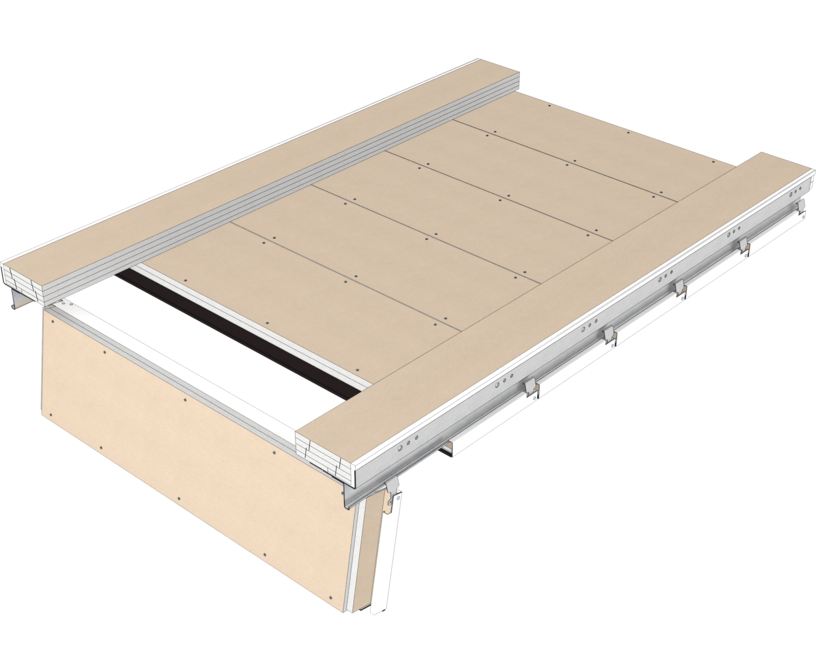

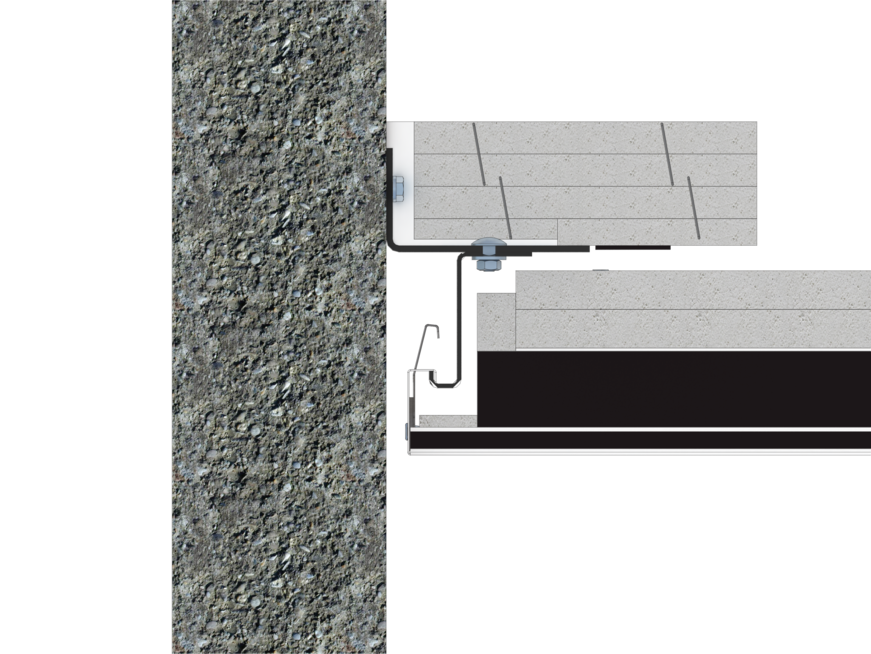

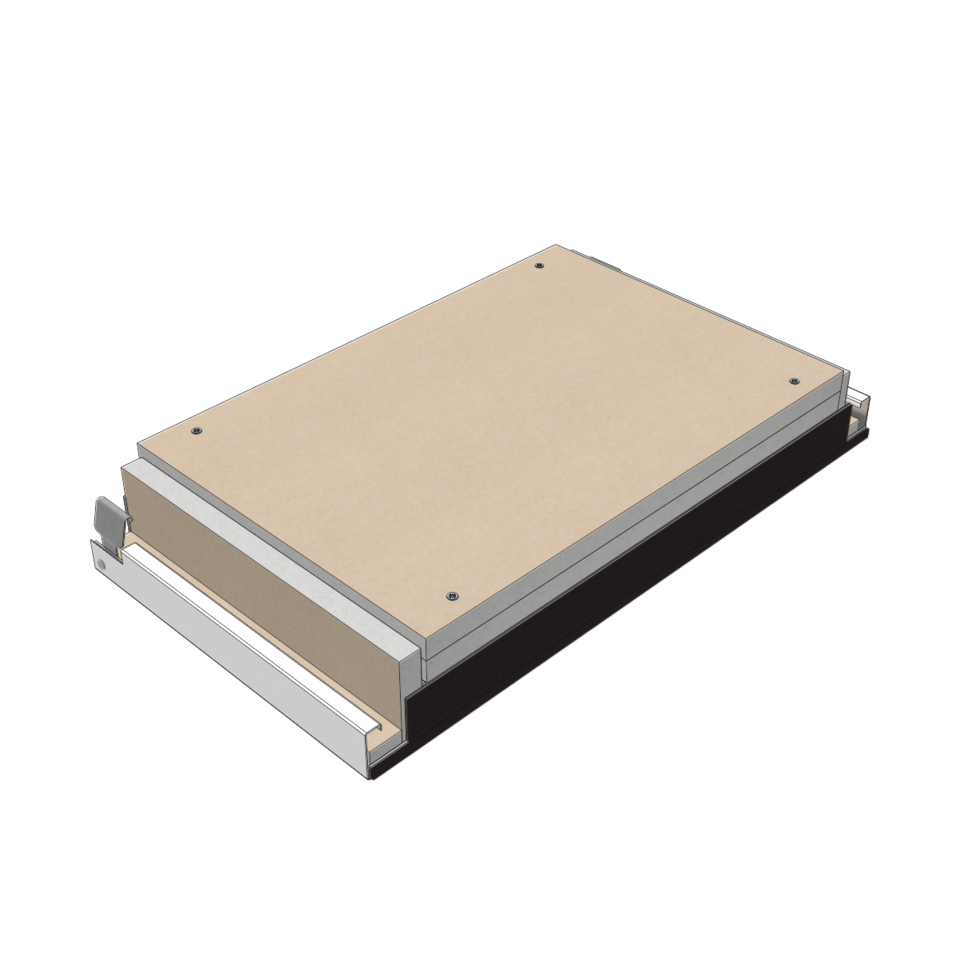

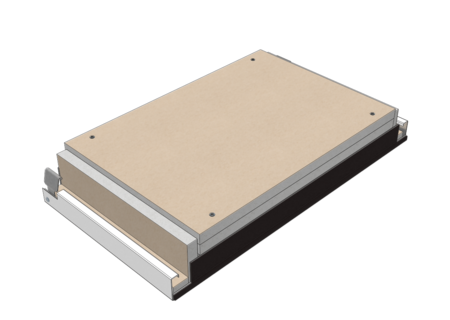

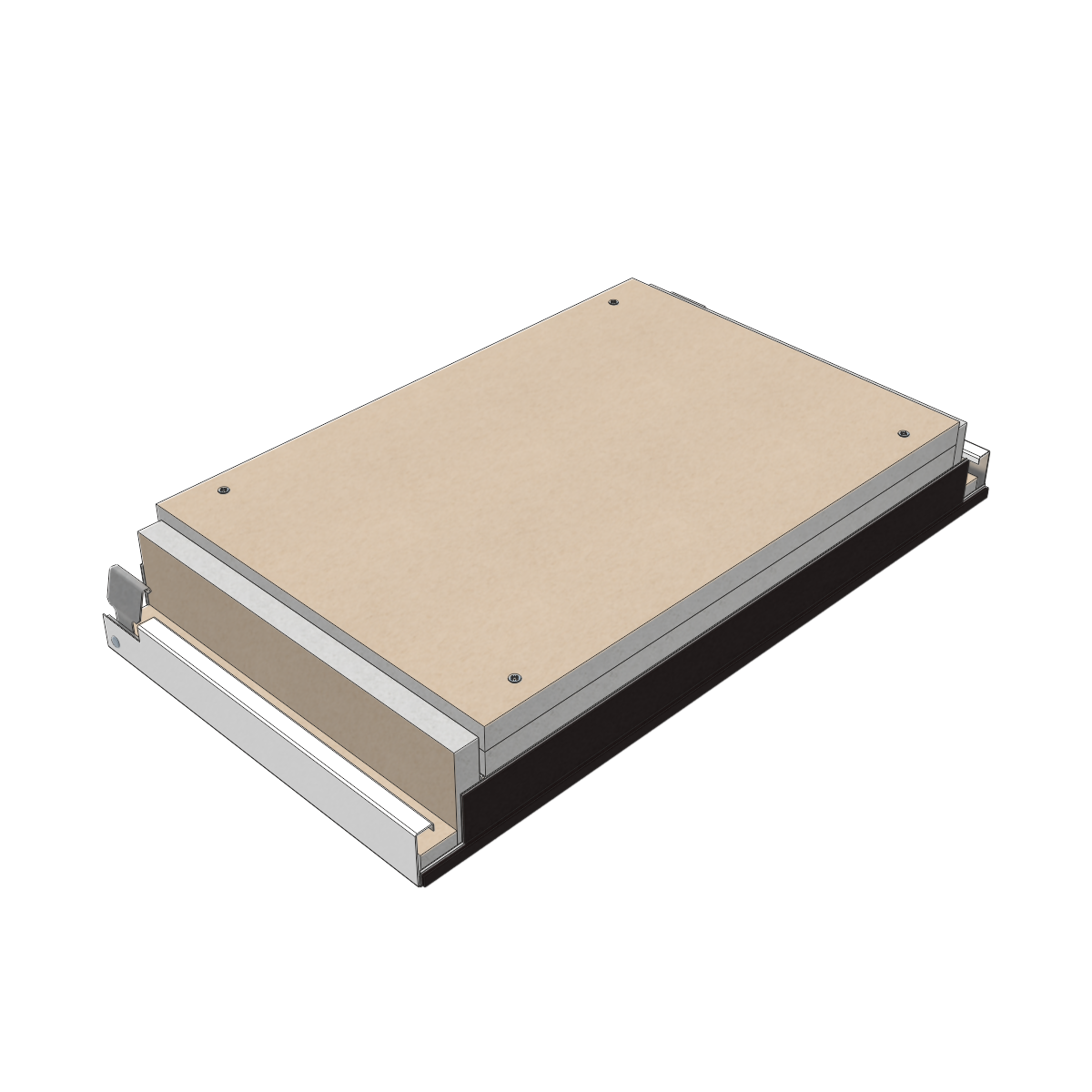

The ceiling elements of this fire rated ceiling are hooked onto carrier rails on both sides of the corridor. They can be swung down and slid along the corridor without the need for any tools. No additional ceiling void is required for maintenance works. This fire rated ceiling enables a good compensation of tolerances on the wall.

  • classification report K-2102/509/20-MPA BS
  • freely spanned construction

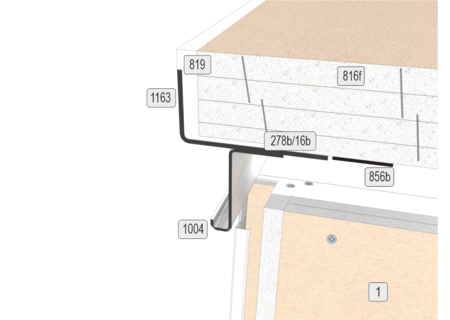

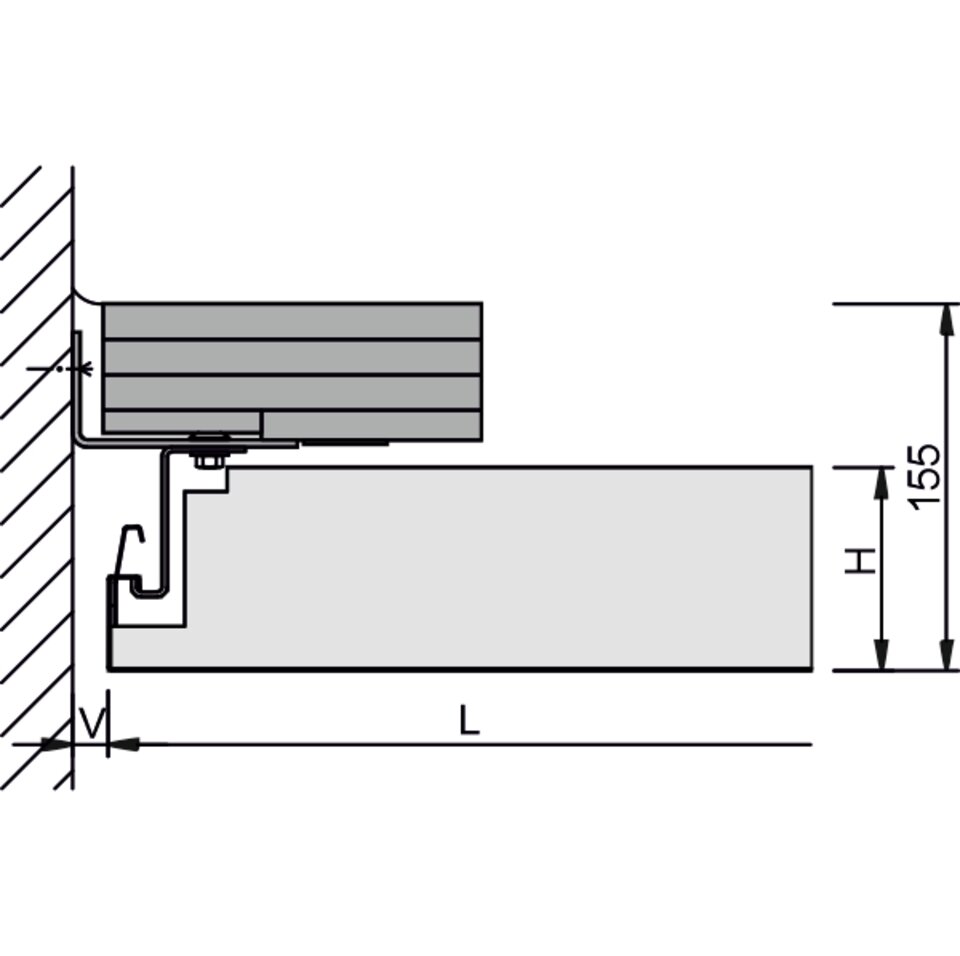

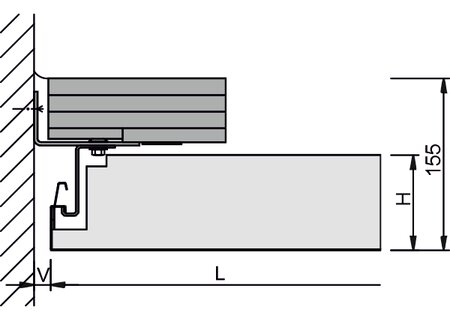

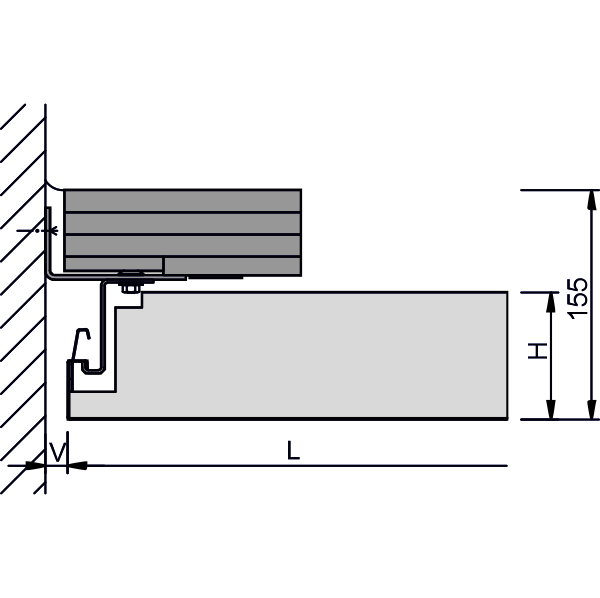

  • good compensation of tolerances on the wall is possible due to an adjustable wall connection

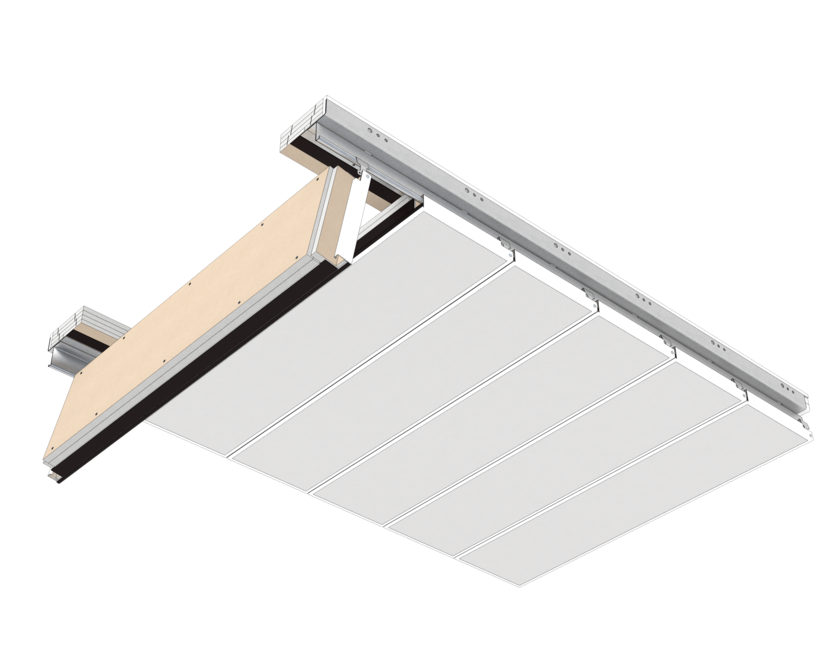

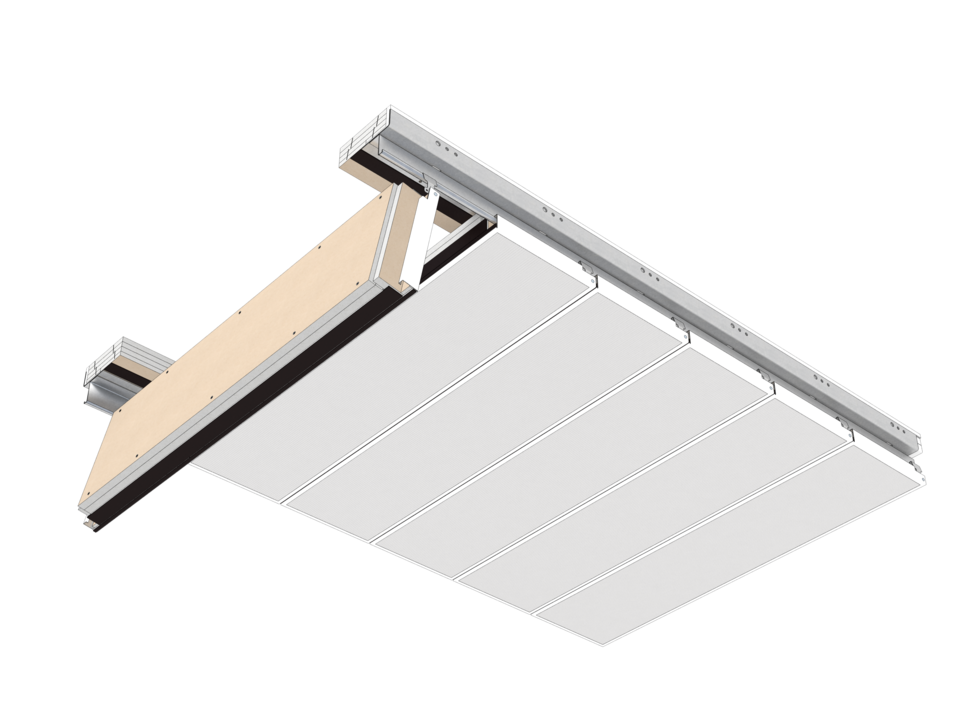

  • maintenance option due to ceiling elements that can be individually operated, swung down and slid without tools
  • swung down ceiling elements can be moved together to receive a large inspection opening (approx. 2,500 x 600 mm)
  • no additional ceiling void is necessary for maintenance works
  • hygienic and easy to clean

Downloads

Downloads

Digital Service

NBS Specifications

Product Information

Ceiling elements
Technical details
Component list
Acoustics
Fire protection
Static
Durability
Sustainability
Certification

Don't hesitate to contact us!

Additional Equipment - (8)

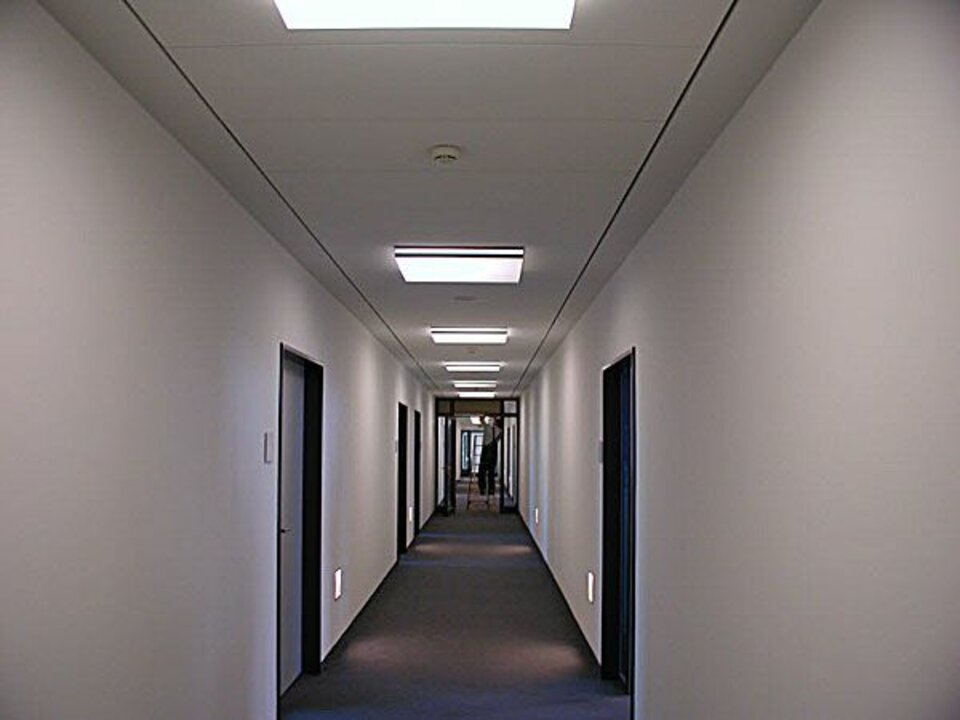

Examples for areas of application

Healthcare: Clinics and Hospitals, Laboratories and Research Facilities

Work: Data Centres, Utility Rooms

Businesses, Recreation and Culture: Places of Assembly

Public Areas: Escape Routes

Education: Research Rooms

Industry: Laboratories and Research Facilities

Hotels and Gastronomy: Hotels and Resorts

Public Institutions: Court Houses, Government Buildings
