Plafotherm® DS 320

Heated and Chilled Canopy Ceiling in Filigree Optics

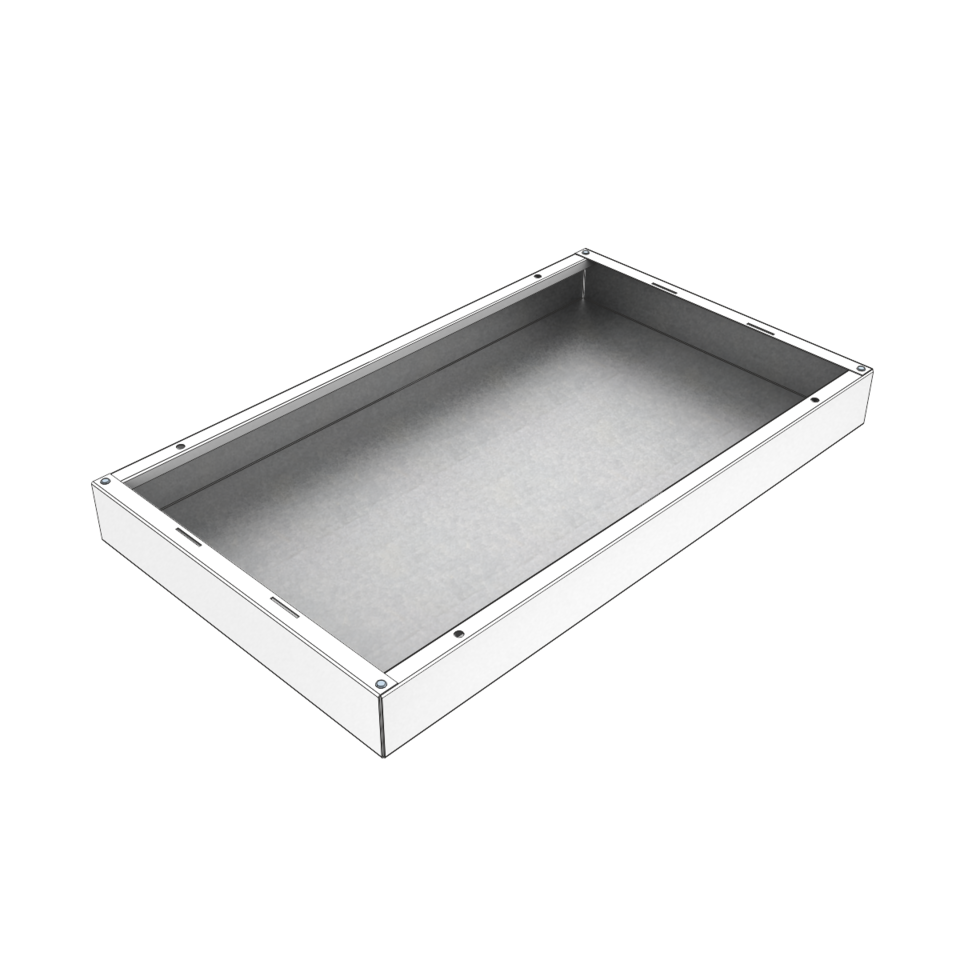

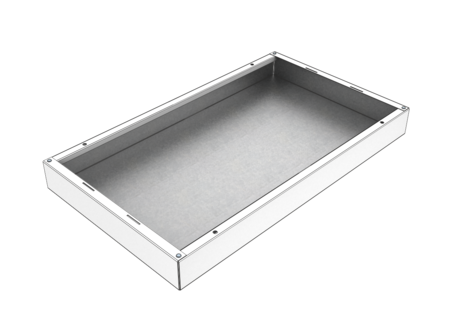

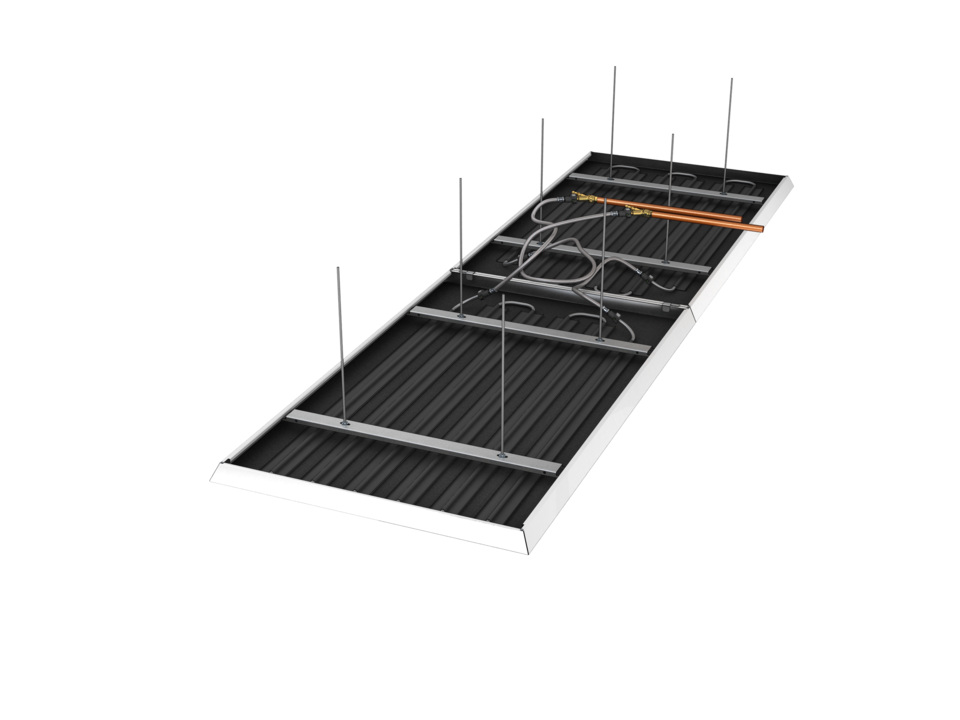

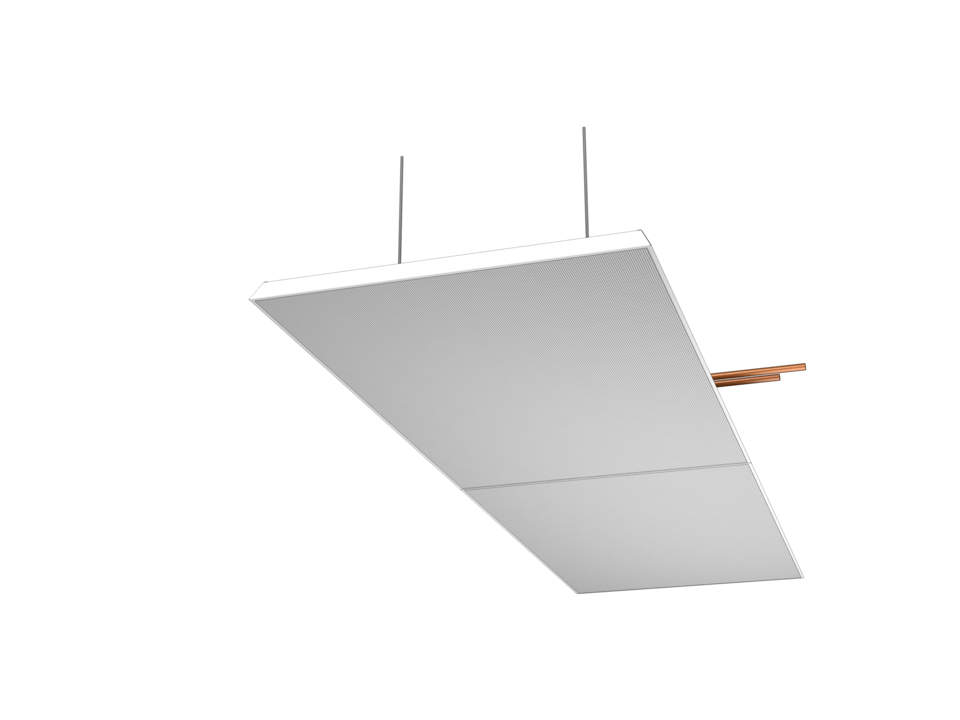

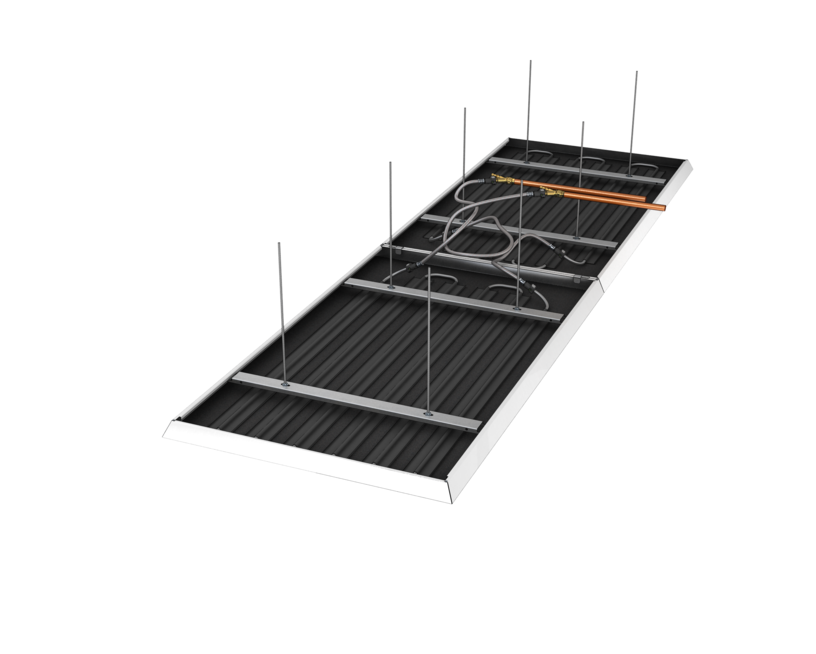

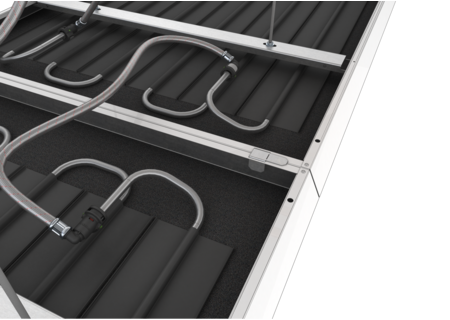

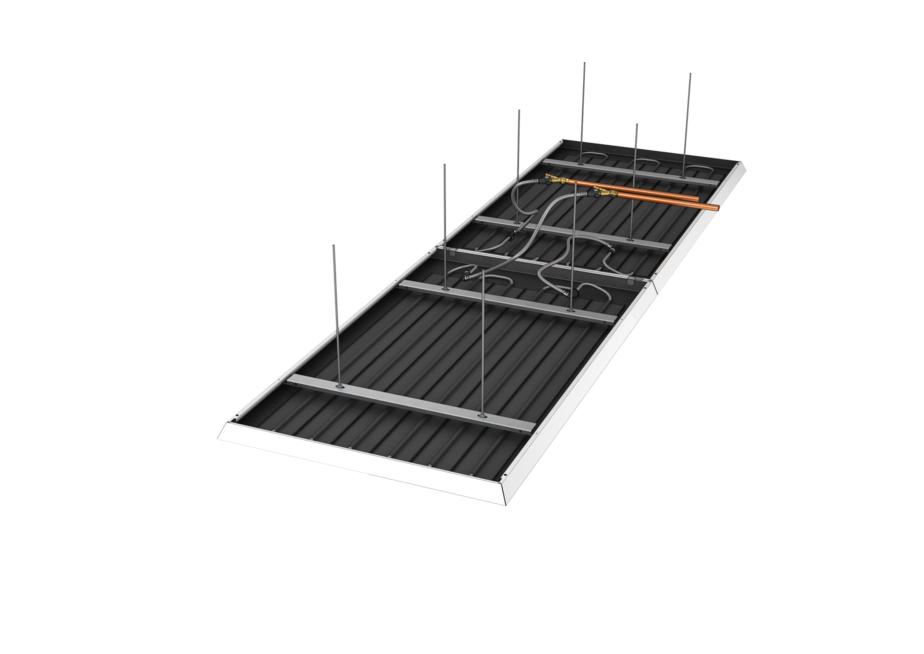

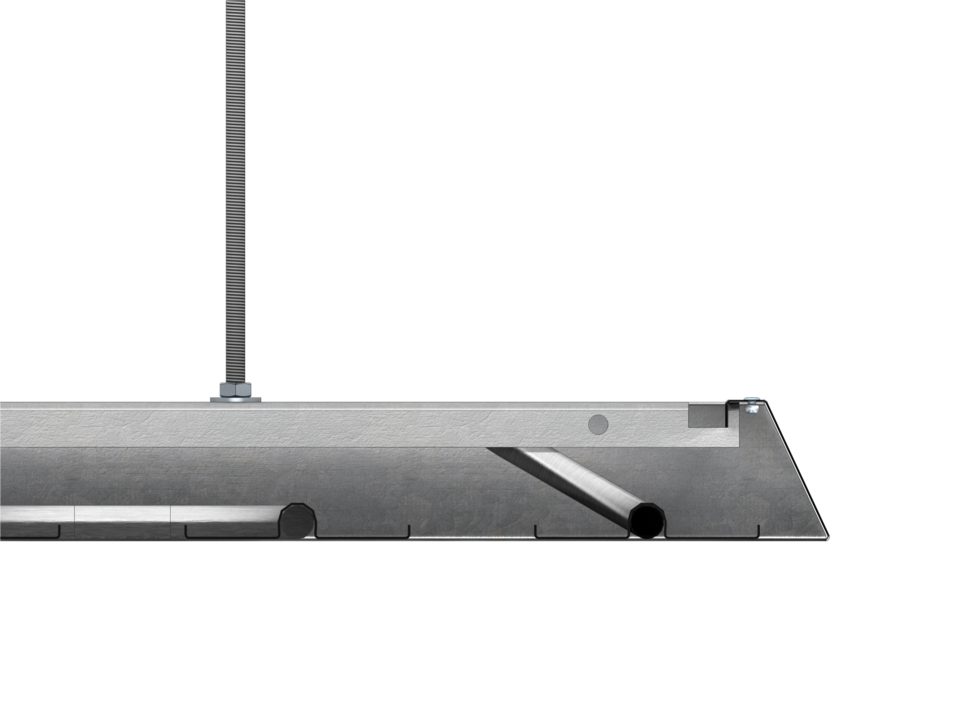

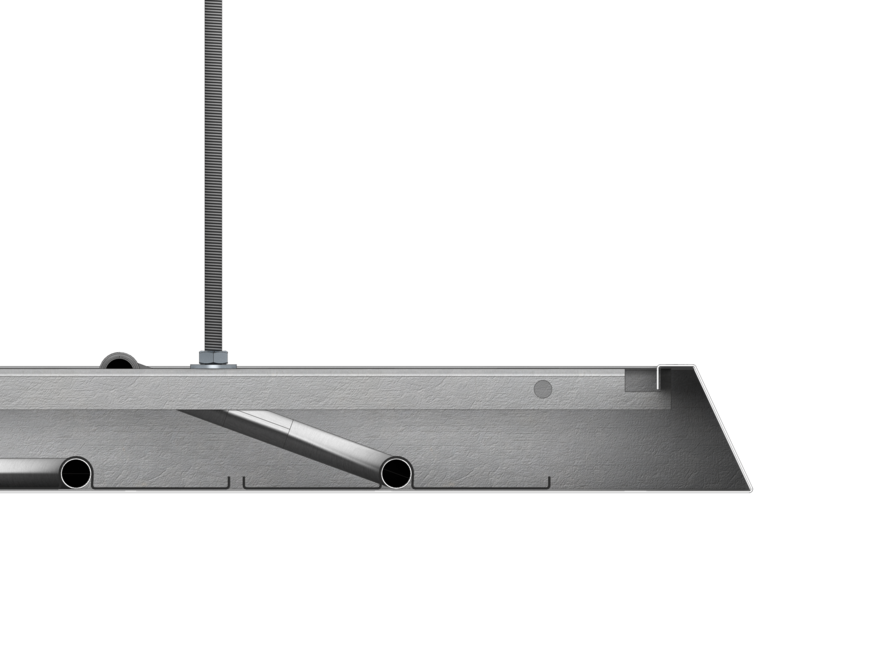

The metal canopy ceiling in open construction provides for pleasant climate and good acoustics in your rooms. The large-sized ceiling panels can be designed with vertical or angled edge. They can individually be arranged in your rooms. The free space between the canopies offers you the possibility to independently fasten installations. The ceiling panels can quickly be installed. No tools are required to remove the ceiling panels. It is possible to combine thermally active and passive areas of this cost-effective system.

  • heating/cooling by means of radiation and convection creates a pleasant room climate
  • flexibility thanks to the combination of thermally active and passive areas
  • high heating/cooling capacity and sound absorption due to the open construction
  • design freedom thanks to an individual arrangement of canopies and an exposed concrete

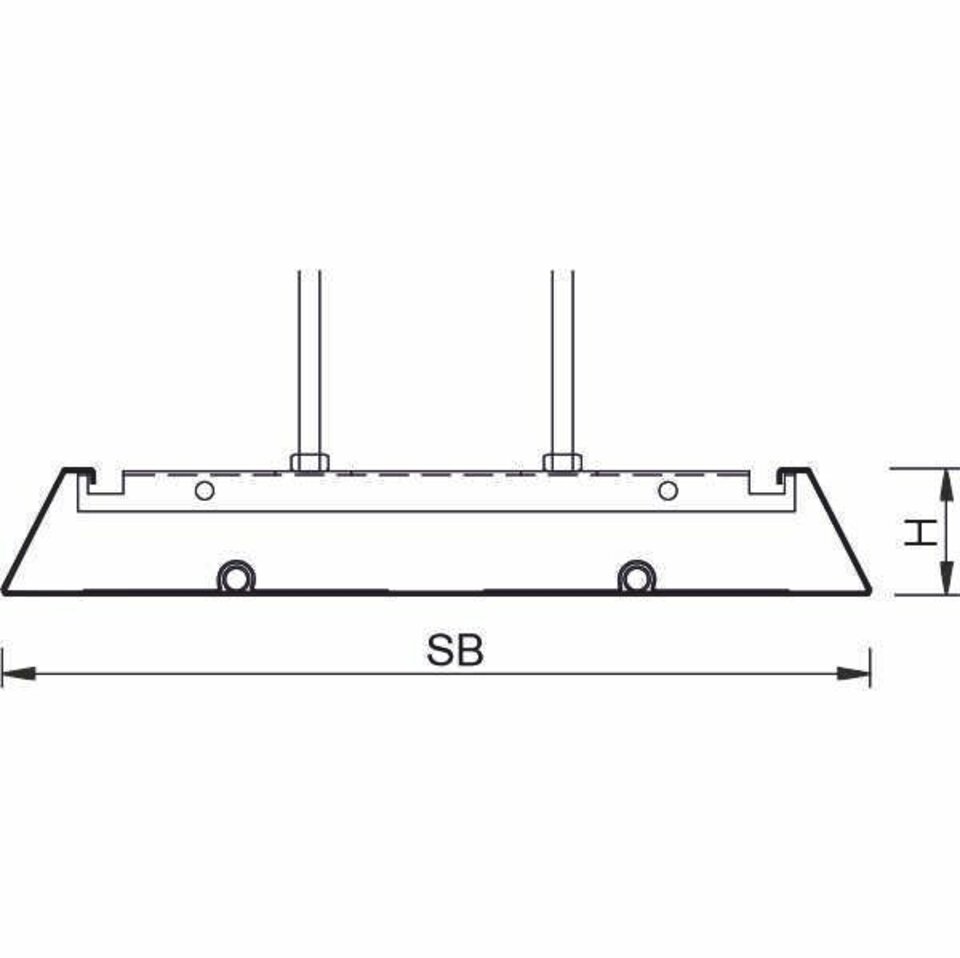

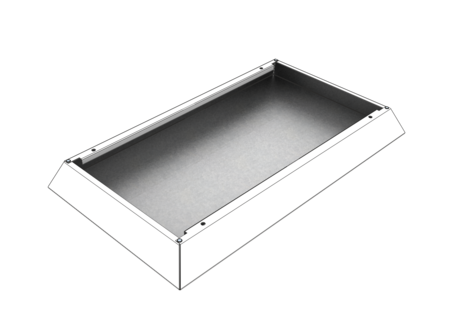

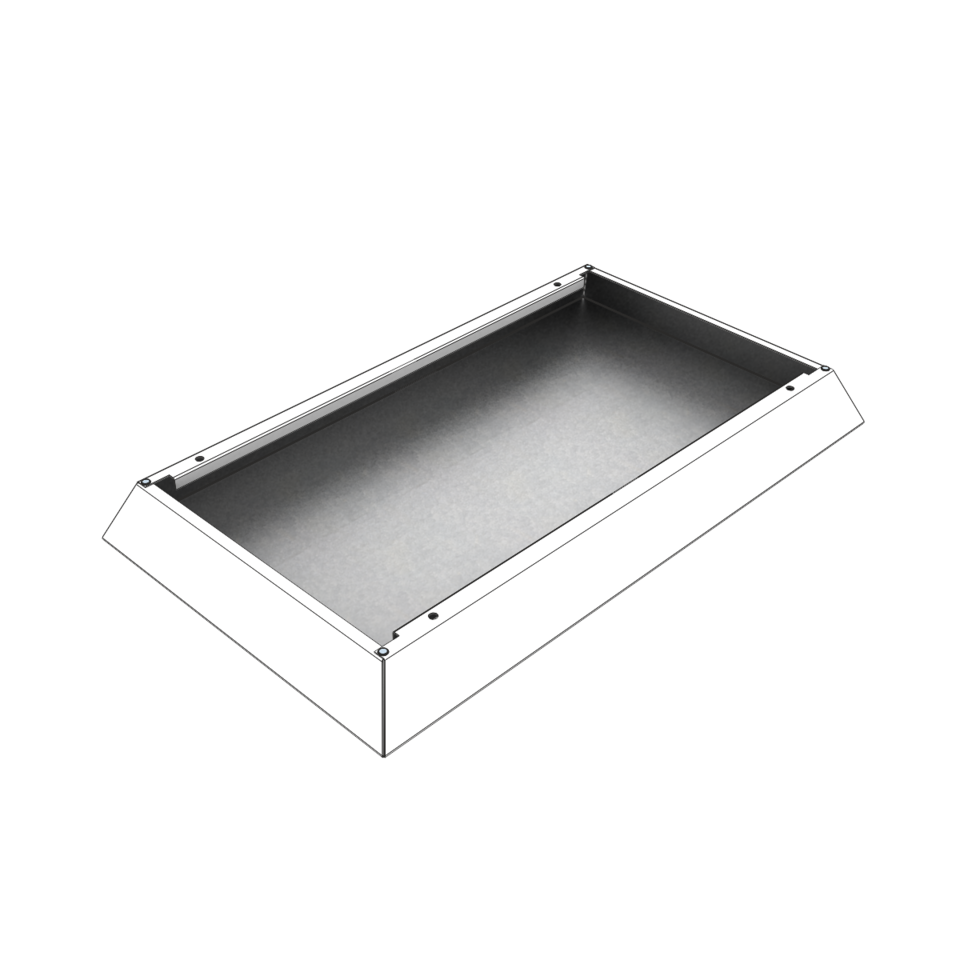

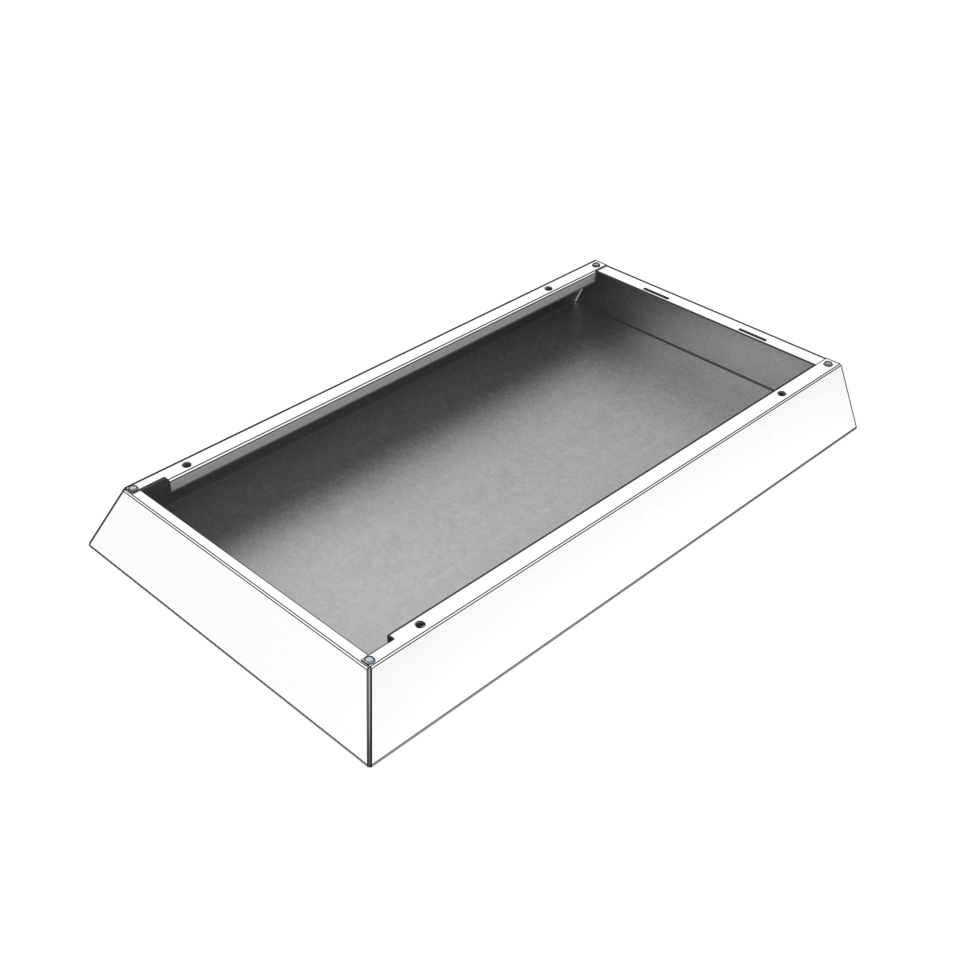

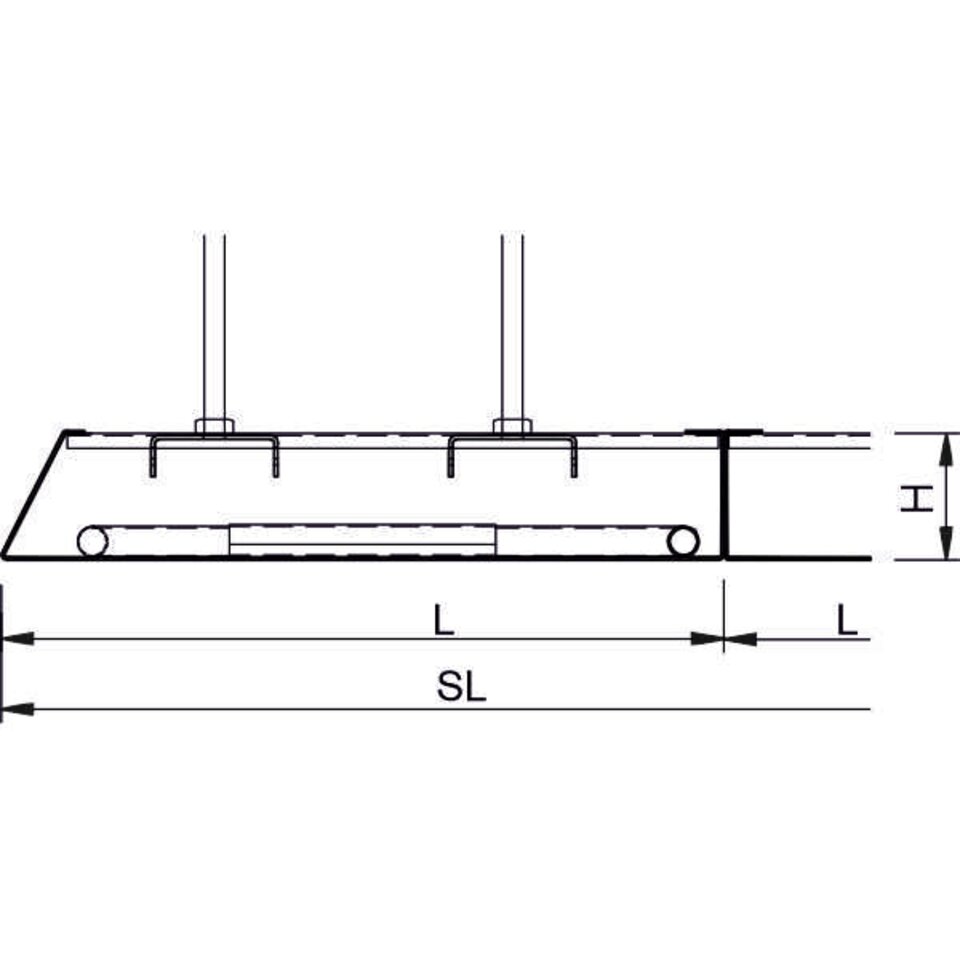

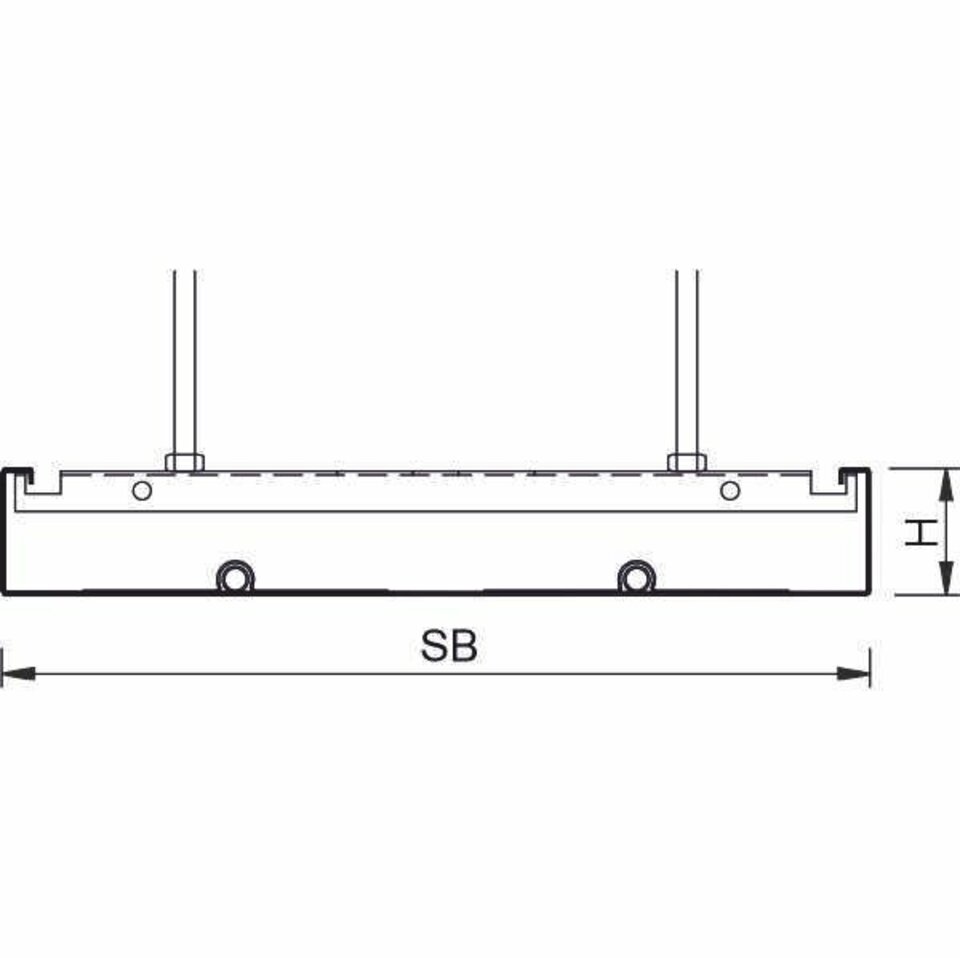

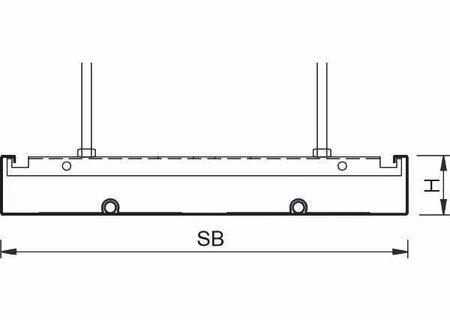

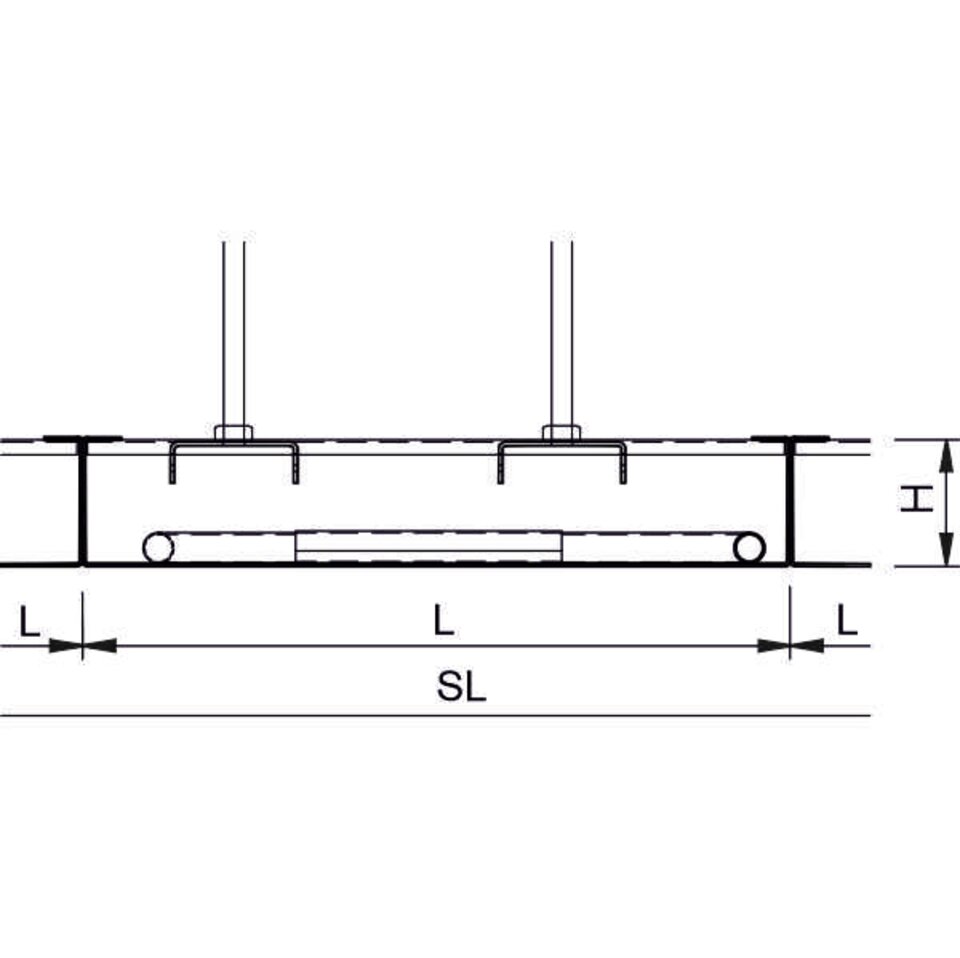

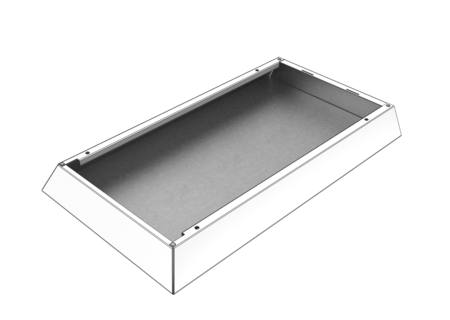

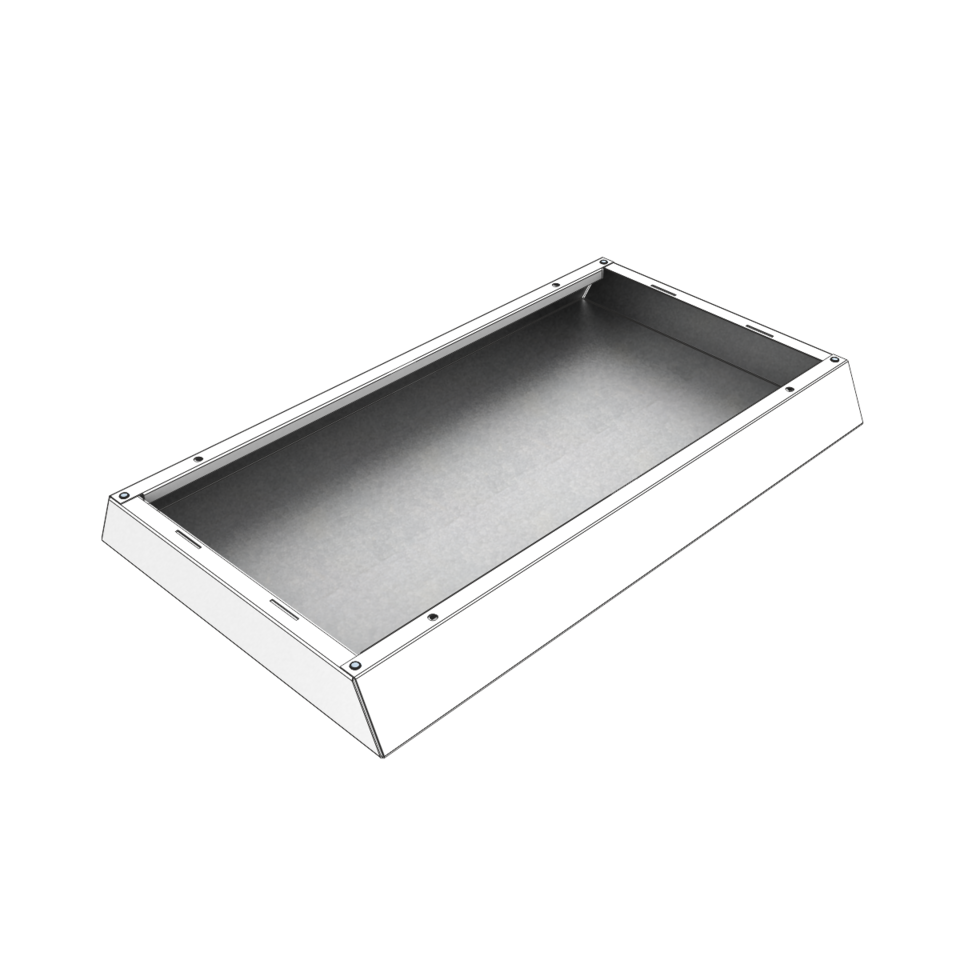

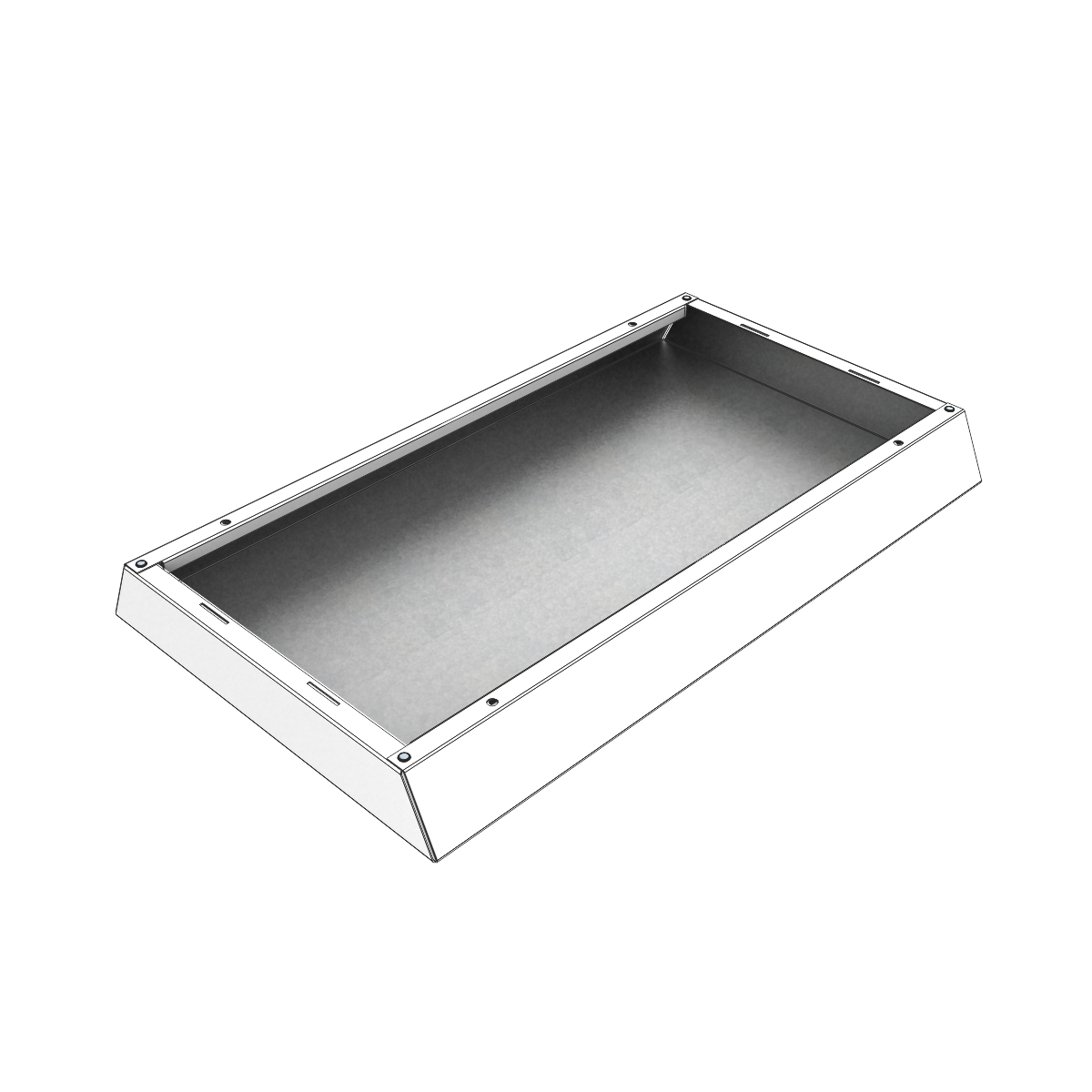

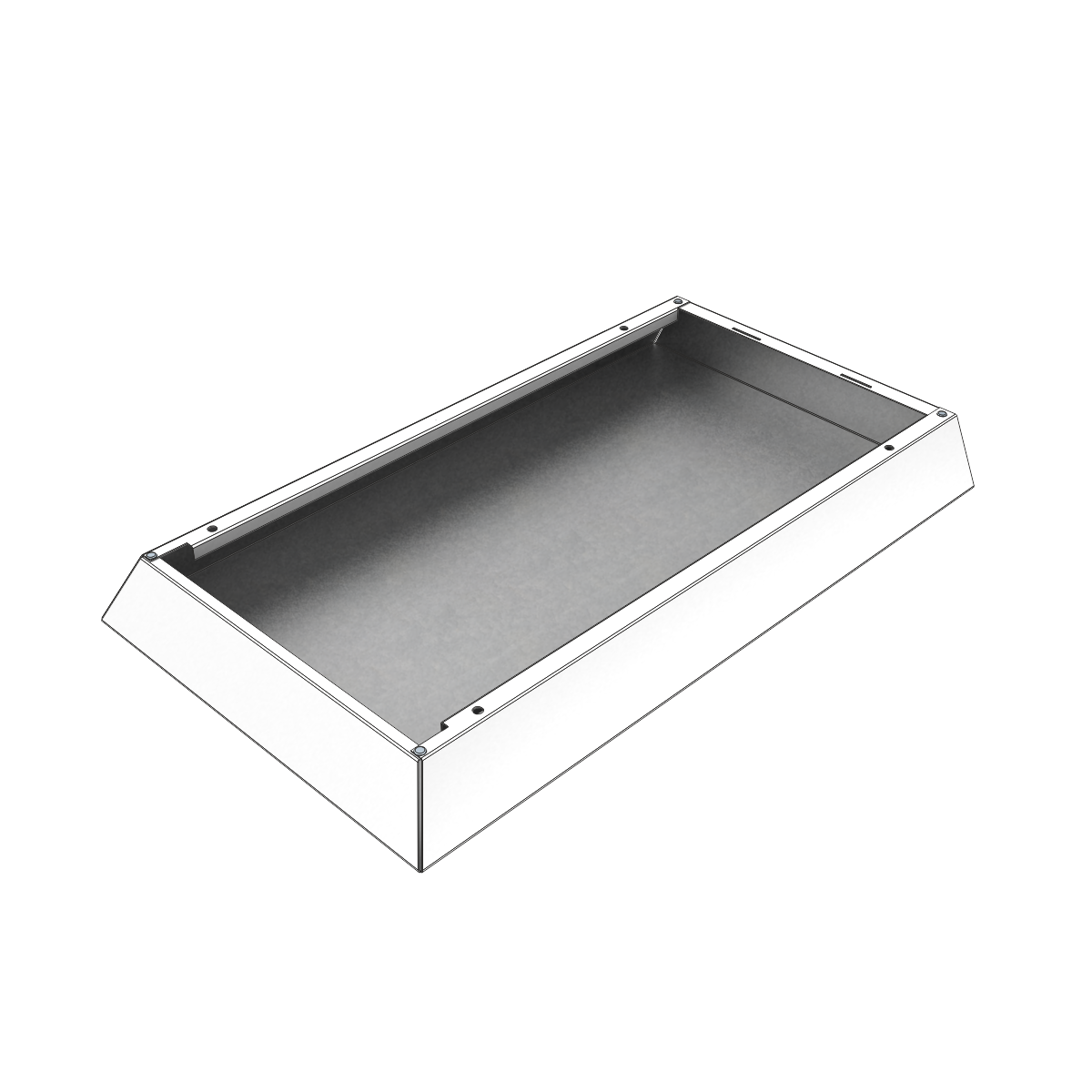

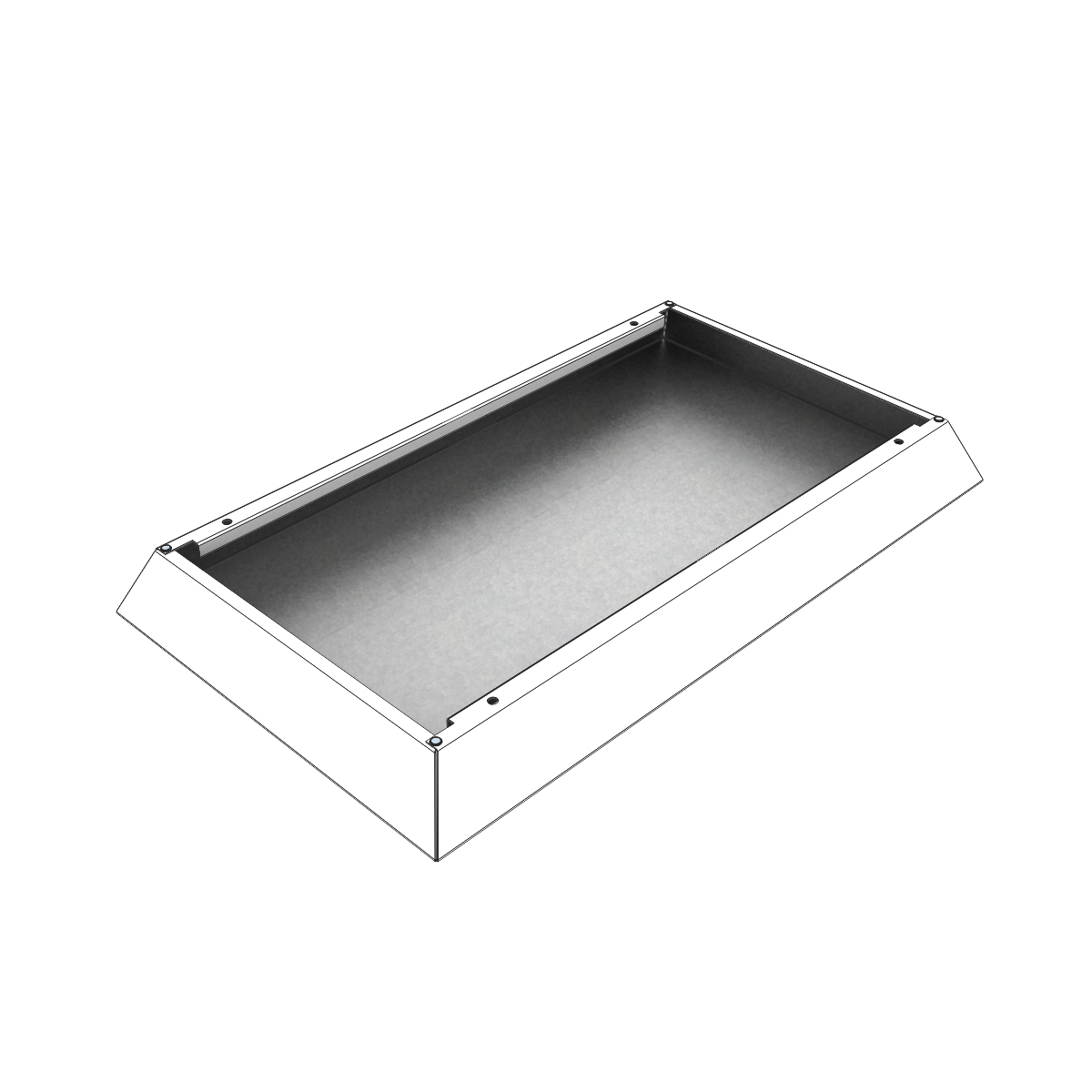

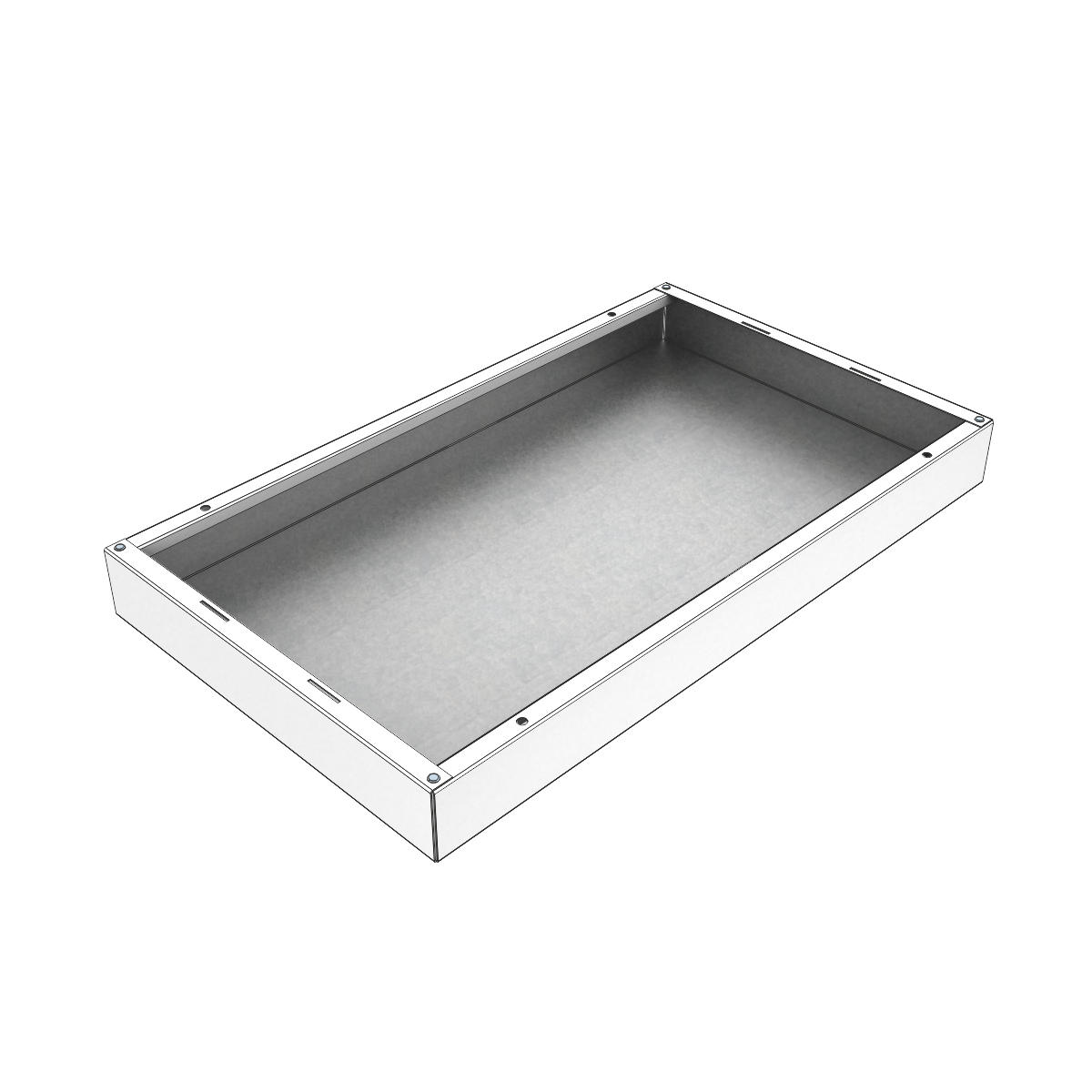

  • large-sized ceiling panels optionally with 90° or 65°-turn-up
  • easy maintenance option due to ceiling panels that can be individually operated without tools
  • independent installation of luminaires and fixtures possible between canopy ceilings
  • easy and quick installation
  • cost-effective canopy ceiling as economic solution
  • hygienic and easy to clean

Downloads

Downloads

Digital Service

NBS Specifications

Product Information

Ceiling elements
Technical details

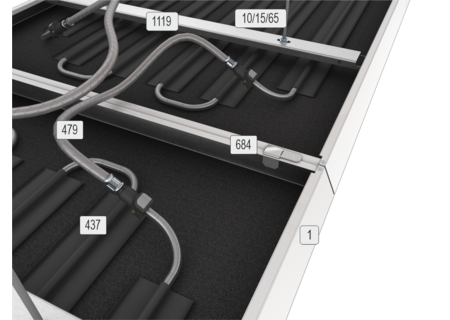

Component list
Acoustics
Fire protection
HVAC
Static
Durability
Sustainability
Certification

Don't hesitate to contact us!

Additional Equipment - (9)

Combinable Systems - (1)

Examples for areas of application

Work: Common Rooms, Facilities for Meetings, Conventions and Conferences, Stage and Studio Rooms, Office buildings, Broadcasting Rooms, Television Studios, Assembly Rooms

Businesses, Recreation and Culture: Banks, Stadiums, Cinemas and Theatres, Shopping Centres, Sales Areas, Museums, Places of Assembly

Education: School of Higher Education, Schools, Library Rooms

Public Institutions: Court Houses, Government Buildings

Transport: Airports, Train Stations

Public Areas: Entrance Areas

Hotels and Gastronomy: Hotels and Resorts
