FLOOR and more^® arena

Dry hollow floor for tiered structures

FLOOR and more^® arena

Dry hollow floor for tiered structures

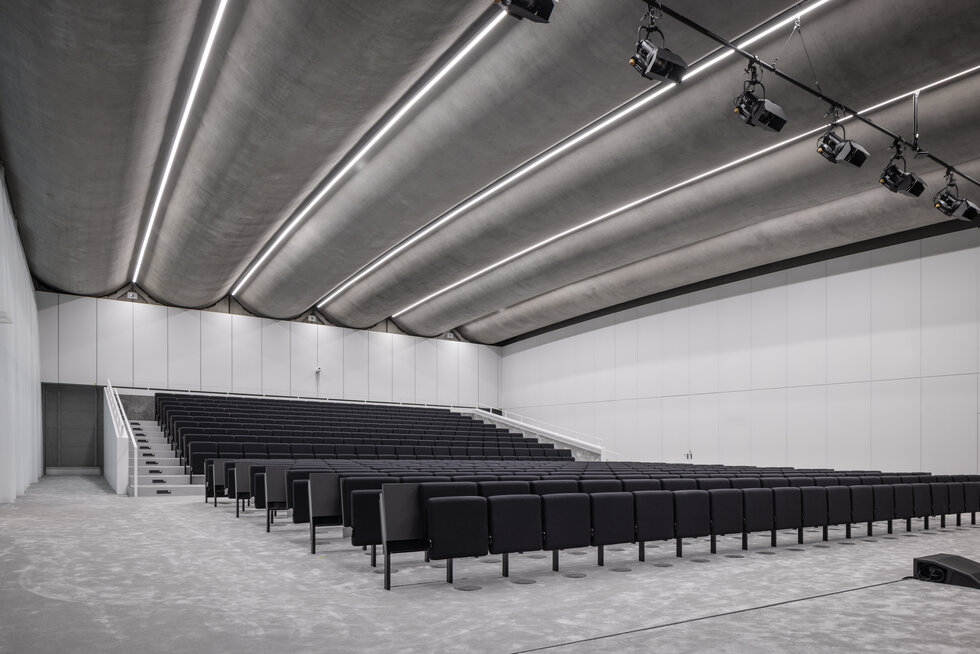

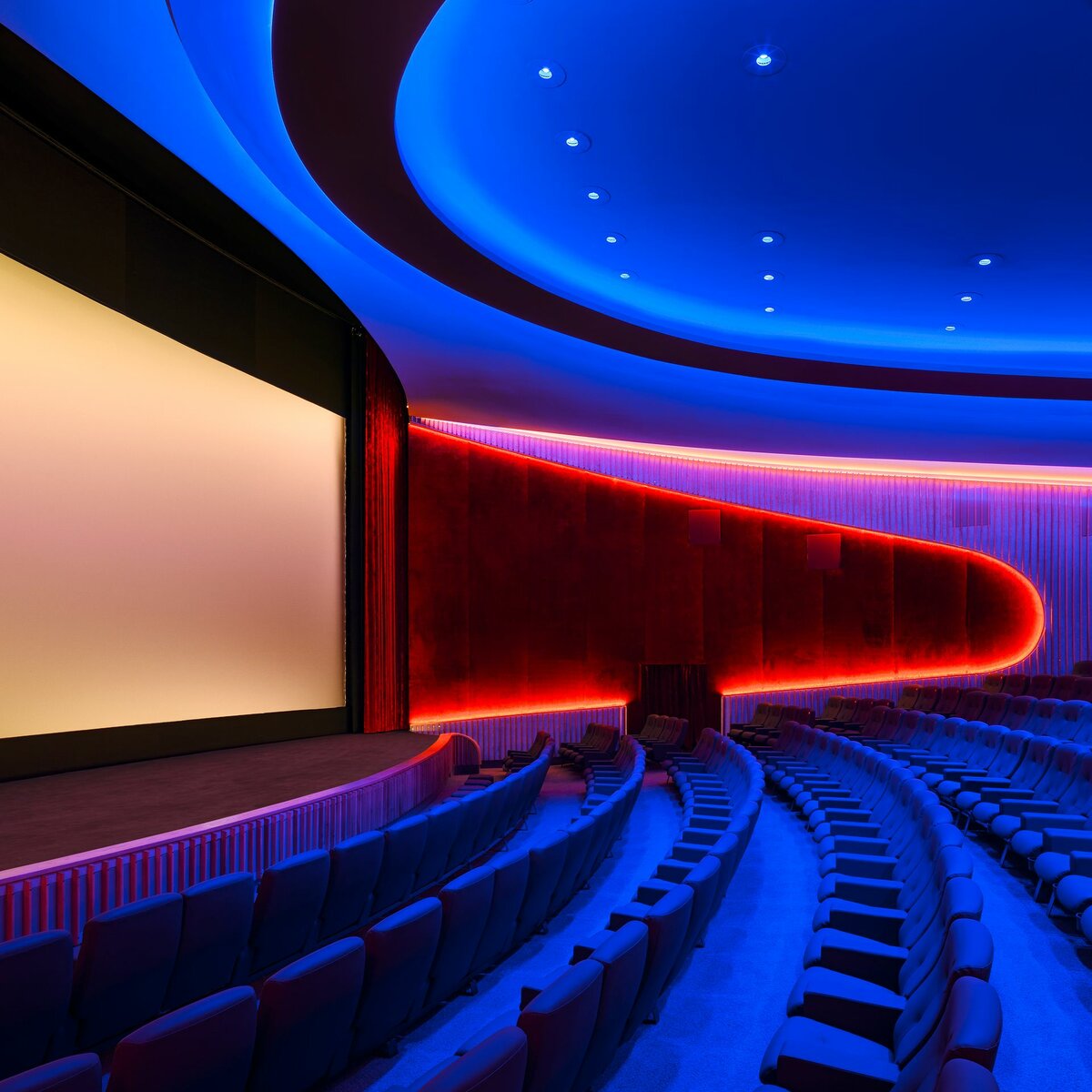

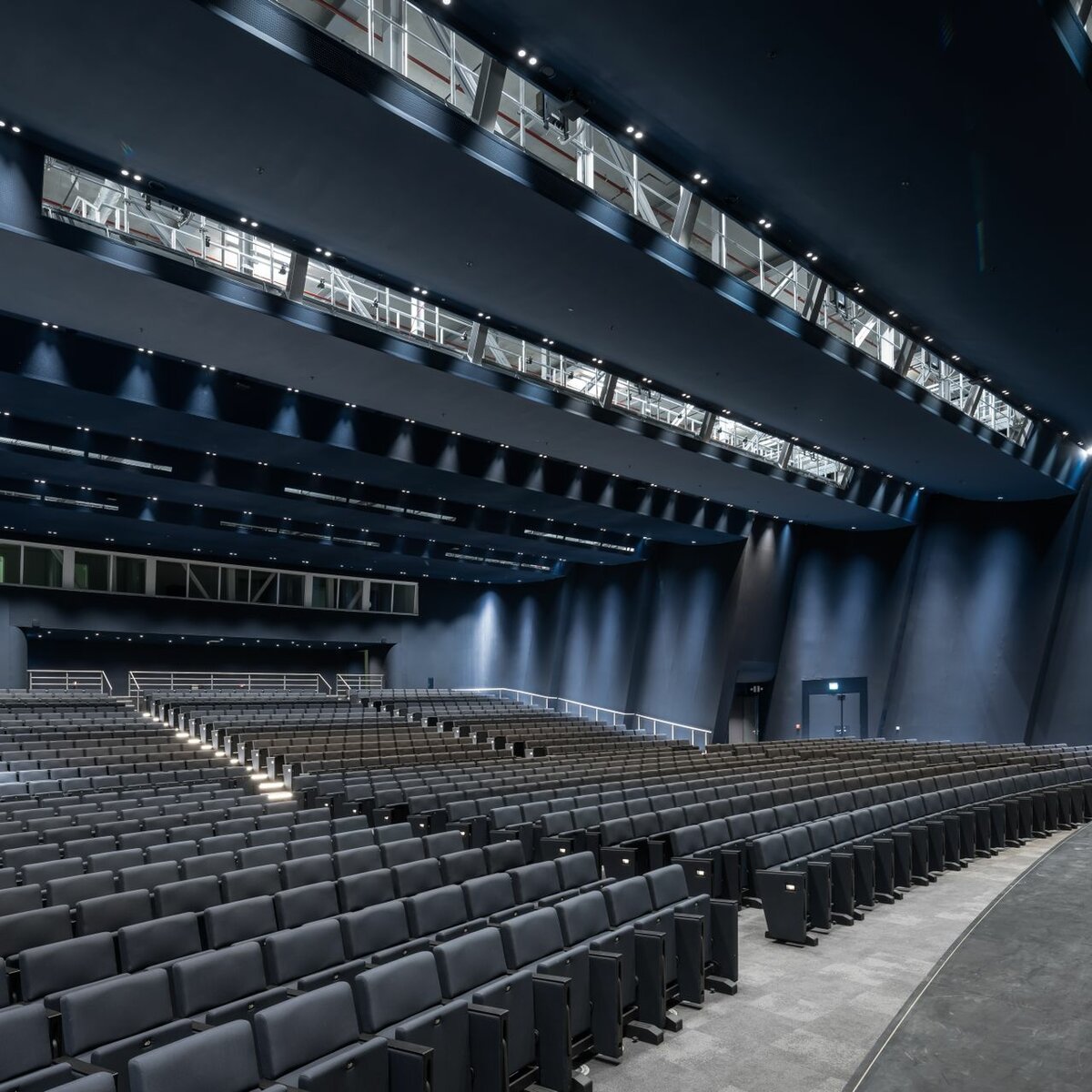

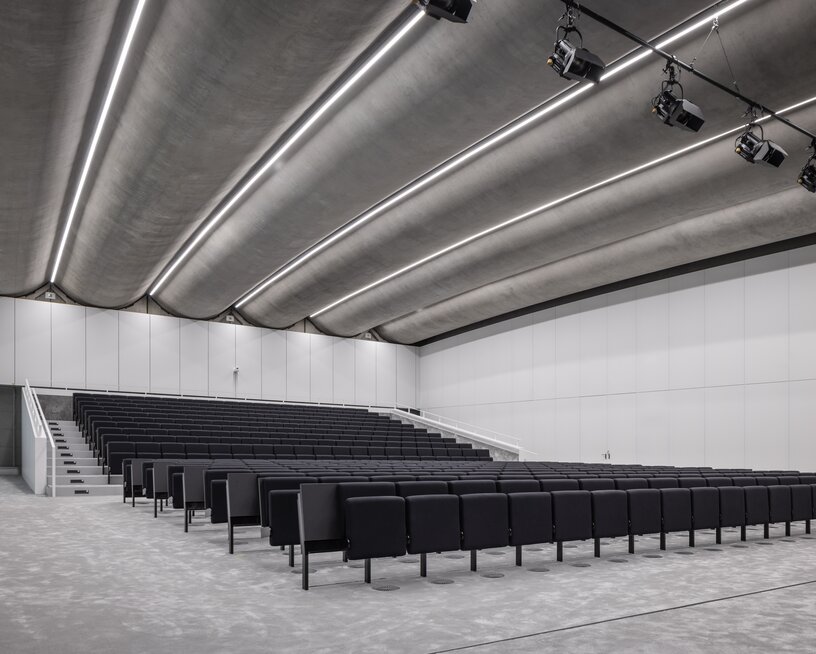

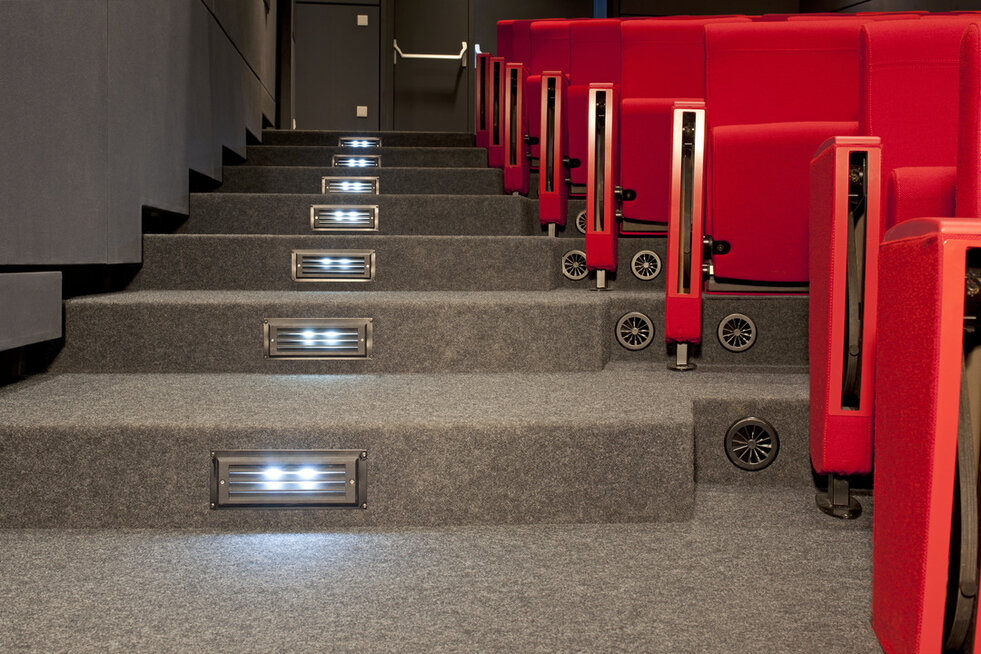

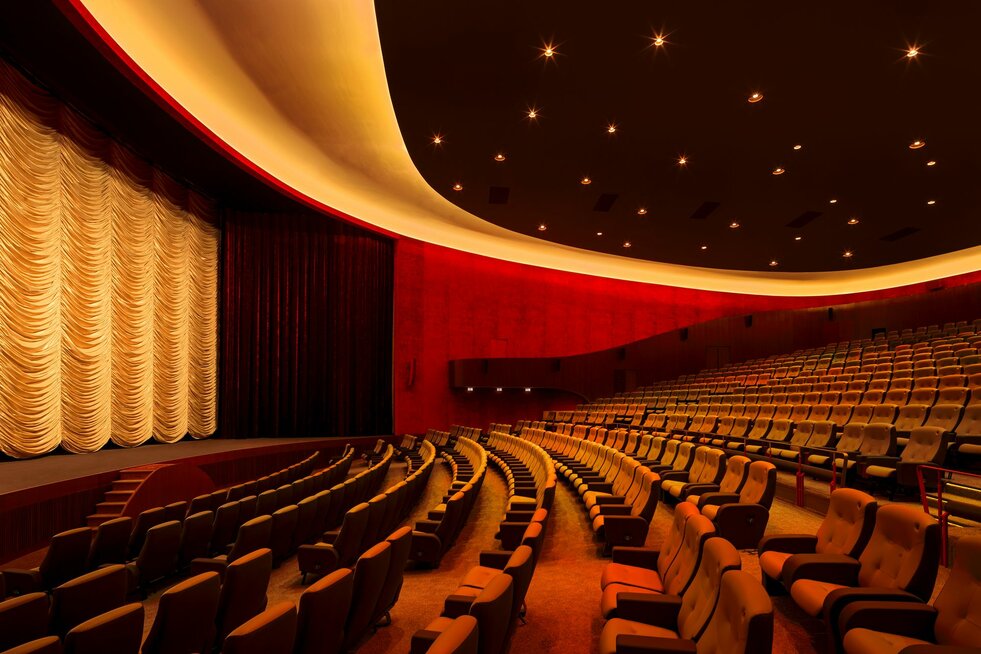

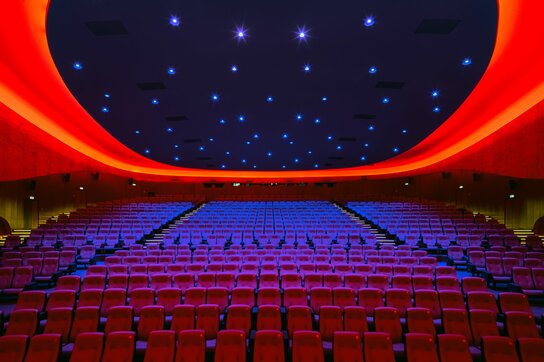

The construction of tiered levels in cinemas and concert and lecture halls is always a challenge. We consolidated our experiences from numerous international projects into the development of FLOOR and more® arena. Solid and at the same time quick to install, comparatively lightweight but yet carrying a high load capacity, largely prefabricated but likewise extremely flexible – this floor system is a match for every challenge.

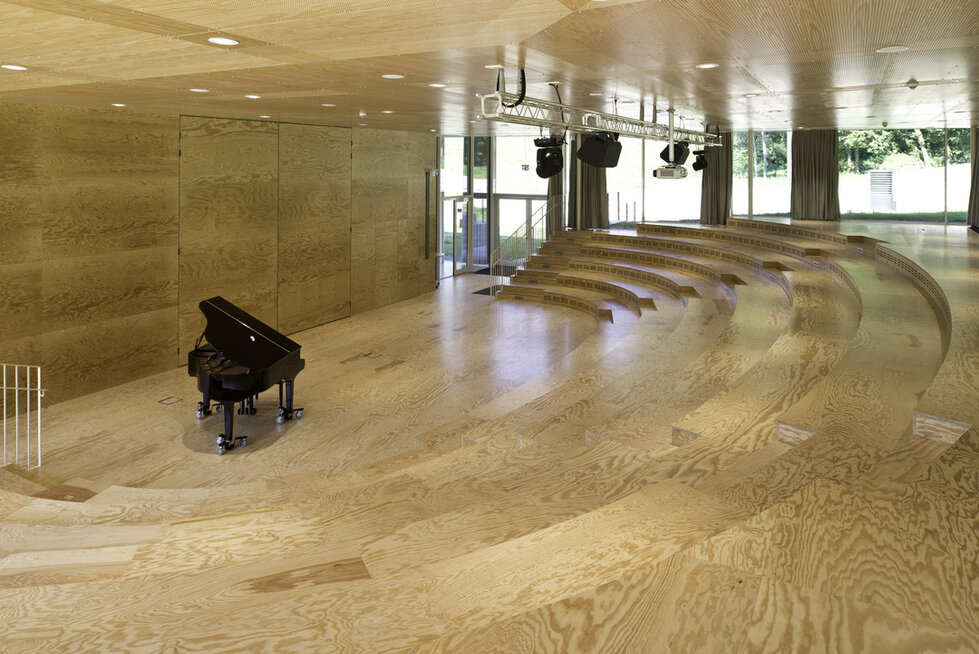

Calcium sulphate planks make all the difference; classified to fire performance A1, “non-combustible”, preventing any drum effect when walking and acoustically effective, FLOOR and more® arena adjusts itself to every type of installation, whether the subfloor is level, sloping or stepped. Radial or polygonal tiering, or a version using the floor plenum for ventilation, is also available.

highly loadable planking with A1 material, non-combustible
floor can be pressurised for ventilation
quick installation thanks to high degree of pre-fabrication
substructure and planking from own production

Data Sheet

FLOOR and more® arenaConstruction

FLOOR and more® arenaApplication

FLOOR and more® arenaApplication

FLOOR and more® arenaApplication

FLOOR and more® arenaApplication

PedestalsOverview over pedestals

FLOOR and more® arenaCradle to Cradle Certified (R) - Technical Cycle

High

Downloads

More items

Digital Service

Tender texts and DIN/VOB specifications

www.ausschreiben.de

Product Information

Static

Fire protection

Building material

Brandschutz

of the carrier panel

Building material class

DIN EN 13501 1

DIN 4102-1

DIN 4102 1

Designation by building authorities

DIN EN 13501 1

non-combustible

DIN 4102-1 Bauaufsichtliche Benennung

DIN 4102 1

non-combustible

Sustainability

Declarations

circular economy

The product is Cradle to Cradle Certified® Silver. By implementing the Circular Economy ideology we avoid waste, toxic substances and environmental pollution. The aim is to achieve a technical cycle, which ensures the separation and the complete re-use of all materials.

Product Self-Declaration

Self-Declaration according to ISO 14021

EPD (Environmental Product Declaration)

EPD according to EN 15804 / ISO 14025

FSC

optional (TUEV-COC-000515)

Evidence

Green Level Certificate

High

Coverings

Additional equipment

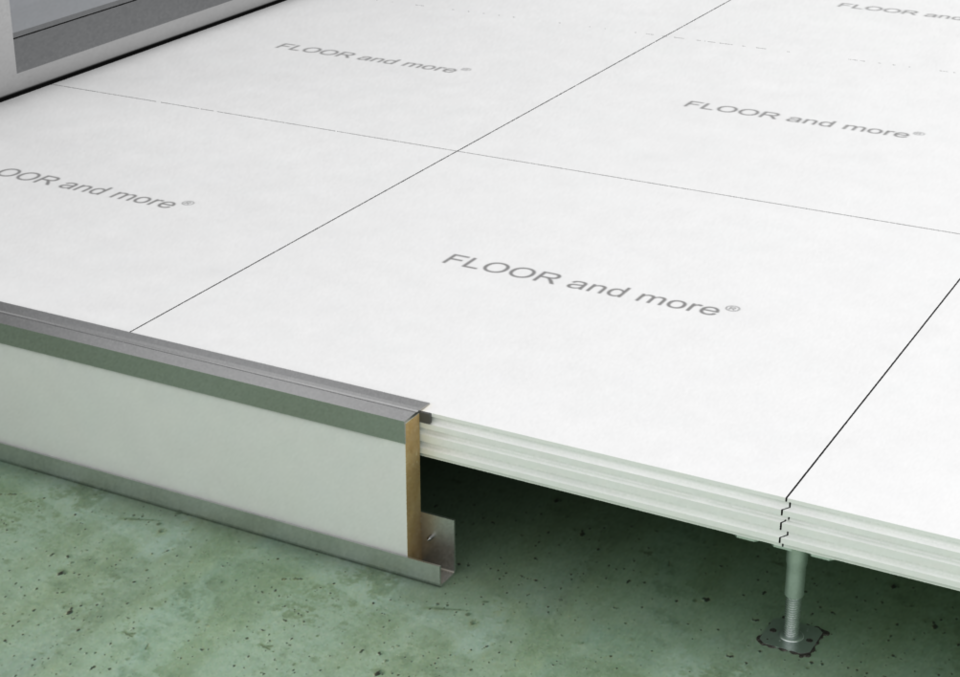

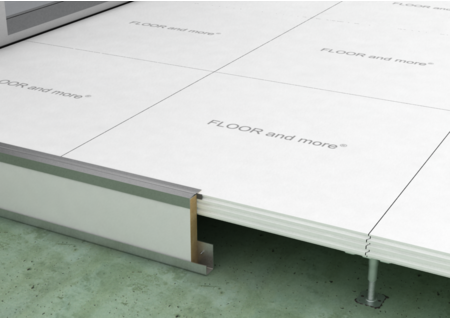

Facings

Staircases, platforms, etc. need to be finished with a front cladding (facing). Where features such as free-standing borders are required, the top edges of the facing will be protected with a stair edging profile. Angles screwed to the subfloor and bracing installed in the upper area of the facing ensure a stable structure.

Expansion joints profiles

In order to take up horizontal and vertical movements in a structural and inconspicuous manner, expansion joint profiles are used in the area of the hollow floor, adapted to the application.

Electrical outlets

As all electrical installations are laid under the hollow floor, electrical connections can be placed exactly where you want them by the insallation of electrical outlets.

Cavity barriers

Three different types of cavity barriers can be possible to meet the different requirements in the hollow floor area. - Ventilation barriers made from coated chipboard panels - Fire protecion barriers made from solid gypsum wall blocks (min. 80 mm) - Sound protection barriers made from foam mortar (min. 100 mm)

Air ventilation outlets

Air ventilation outlets allow the room to be air-conditioned and ventilated without creating draughts. Various systems are available: - Open system Ventilation takes place directly in the cavity for installations, which is designed as a pressure floor, through the corresponding air ventilation outlets or rather through the hexagonal ventilation outlets into the room. - Closed system In a closed system, the air is fed through a pipe system or through cavity barriers with fixed connections to the air ventilation outlets.

Revision openings

As a matter of course, hollow floors also have to guarantee easy access to the installations. For this purpose, FLOOR and more® can be equipped with revision openings. The removable floor panels are supported by a sturdy and surrounding frame which ensures the high stability of the floor construction. The covering separation rails and rubber seal lips can be visually adjusted to the chosen floor covering - so the revision opening blends into the floor surface inconspicuously.

Reinforcement profiles

Standard Lindner floor systems already exhibit high load-bearing capacities. Should these still not be sufficient, the system can be upgraded by reinforcement profiles. Various options are possible, from the lightest stringer which increases lateral rigidity through to a C-profile.

Don't hesitate to contact us!

+49 8723 20-3682 E-Mail

Combinable Systems - (12)

Superior

FLOOR and more®

Dry hollow floor

The FLOOR and more® dry hollow floor system offers impressive in-built properties and state-of-the-a...

Superior

FLOOR and more® power

Dry hollow floor for heavy-duty areas

FLOOR and more® power shoulders the weight of heavy-duty situations. In certain circumstances floors...

Basic

HYDRO

Dry hollow floor for humid areas

Highly-frequented areas of increased humidity, for example foyers in public buildings and hotels or ...

Basic

HYDRO power

Dry hollow floor for humid and heavy-duty areas

Highly-frequented areas of increased humidity, for example foyers in public buildings and hotels or ...

Areas of Use

Public Areas: Entrance Areas, Escape Routes

Work: Common Rooms, Facilities for Meetings, Conventions and Conferences, Stage and Studio Rooms, Office buildings, Broadcasting Rooms, Television Studios, Assembly Rooms

Education: Library Rooms, Schools, School of Higher Education

Businesses, Recreation and Culture: Shopping Centres, Sales Areas, Banks, Cinemas and Theatres, Concert Halls, Museums, Gymnasiums, Stadiums, Places of Assembly

Healthcare: Clinics and Hospitals

Hotels and Gastronomy: Restaurants and Canteens, Hotels and Resorts

Public Institutions: Court Houses, Government Buildings

Certificate

References

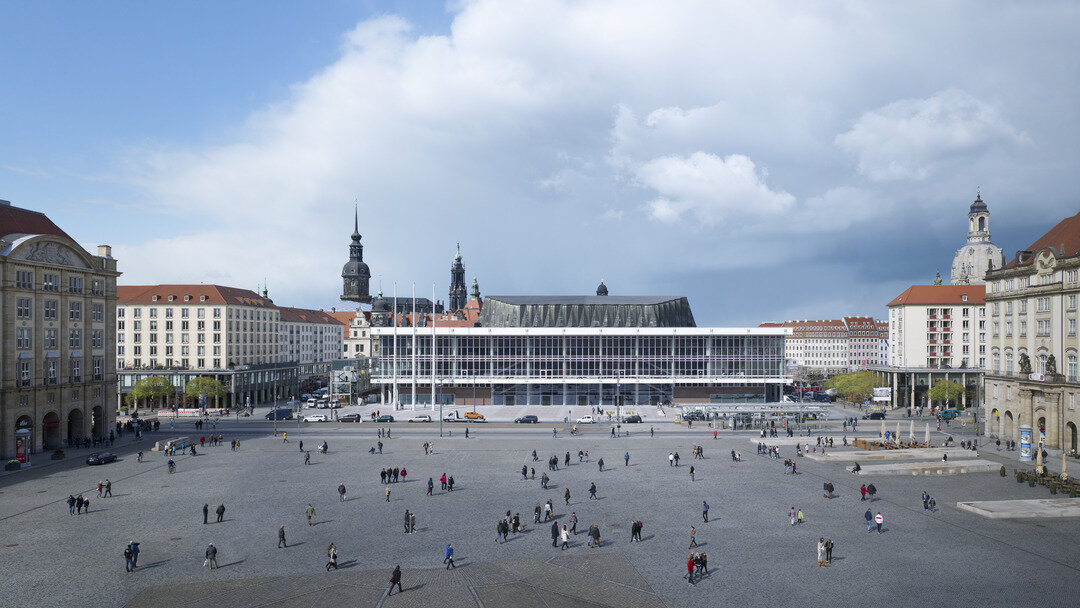

Our Projects worldwide
